23
Temperature Sensor
Altitude Sensor
S.BUS2 Tool
Terminal box
Hub
Hub
RPM Sensor
(1) RPM (Revolution sensor):
• Connect the revolution sensor.
(2) AIL Output:
• Connect the aileron (roll) servo.
(3) ELE Output:
• Connect the elevator (pitch) servo.
(4) PIT Output:
• Connect the pitch (collective pitch) servo.
(6) RUD Output:
• Connect the rudder (yaw) servo.
(7) ELE2 Output:
• Connect the second elevator servo.
(8) S.B2 Output:
• Connect the S.BUS2 tool.
• CGY755
can be used with S.BUS/S.BUS2 compatible
receiver.
* When connecting a S.BUS compliant receiver, connect only the receiver.
(5) THR Output:
• Connect the throttle servo.
• Connect the ESC w/BEC and set the operation mode
to Gyro+THR mode.

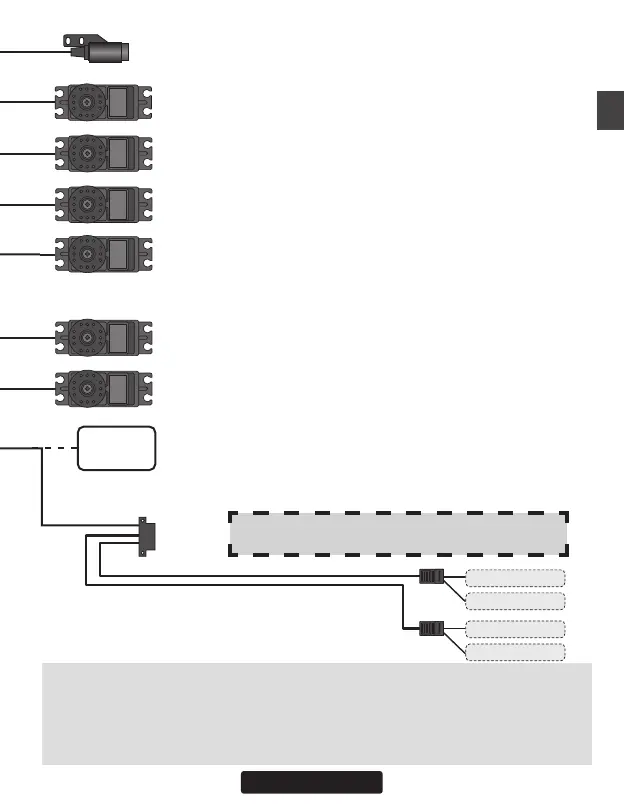

*This diagram shows the various connections between the CGY760R/CGY755 and receiver,
servo, or sensors.
*S.BUS2 is a system that supports bidirectional communication from a telemetry sensor to
a receiver by extending the conventional S.BUS. Telemetry sensor(s), etc., are connected to
S.BUS2 connector and used. S.BUS compatible servo(s), etc., can not be used with S.BUS2
connector terminal.
Battery (3.5 to 8.4
V)
Connect to AIL ~ S.B2.
(Never connect to RPM and P. BOX connector)
* When connecting the receiver, connect the battery only to
CGY.
S.BUS2
compatible
Receiver
If you want to use another receiver with CGY760R,
set the Internal receiver of the CGY760R to "INH".
Connect to S.BUS
/ S.BUS2 port
To Next Page
