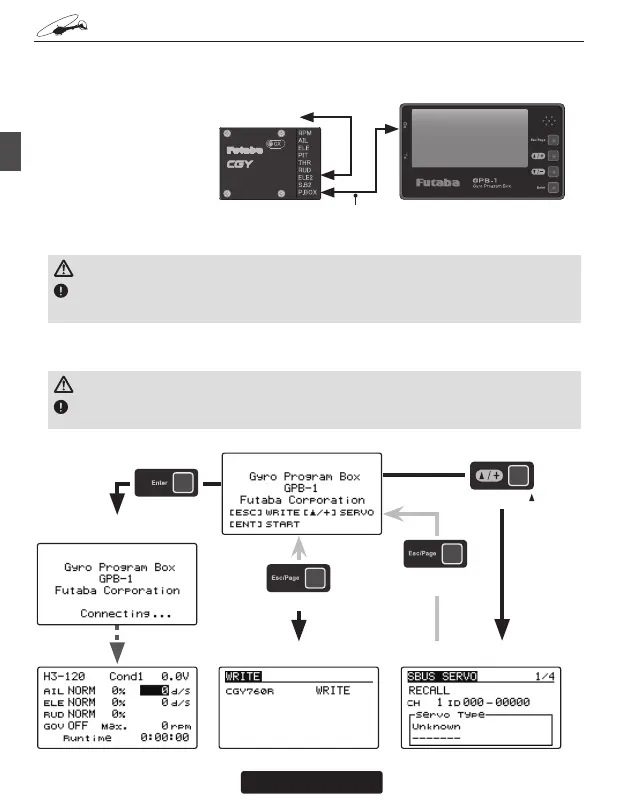

Connect GPB-1 (Gyro Program Box) And CGY
The GPB-1 is used to display the gyro and governor settings, adjust the gyro and gov-
ernor settings, and use to initialize updates, etc.
Opening Screen
When GPB-1 starts up with power on, the opening screen is displayed rst.
·CGY Connection Cable
It is used to connect the CGY760R/CGY755 and
the Gyro Program Box GPB-1.
Connect the receiver battery
(3.5 to 8.4
V) to one of the
"AIL" to "S.B2" connectors
other than "RPM" and "P.BOX".
(Do not connect to "RPM" and
"P.BOX".)
Connect the battery
Opening screen
Home screen WRITE screen SBUS SERVO screen
CAUTION
Be sure to connect and disconnect the CGY760R/CGY755 and GPB-1 con-
nection cable with the power off.
CAUTION
Since the data of CGY or GPB-1 is rewritten, always check the operation key.
Gx
P.BOX
Press and hold the [ /+] key
Press and hold the [Esc/Page] key
Press and hold the
[Esc/Page] key
Press and hold
the [Enter] key
Read the setting data of the connected
CGY into GPB-1 and save it.
Write the current setting data of
the GPB-1 to the CGY.
Parameter setting menu for
S.BUS servo.
