FUTABA GPB-1 User Manual

19
Gyro Set Dir--- 4
Gyro Set Dir--- 5
Gyro Set Dir--- 6
AIL ----------R
ELE --------- R
RUD --------R
AIL ----------R
ELE --------- R
RUD --------R
AIL ----------N
ELE --------- N
RUD --------N
AIL ----------N
ELE --------- N
RUD --------R
AIL ----------R
ELE --------- N
RUD --------N
AIL ----------N
ELE --------- R
RUD --------N
AIL ----------R
ELE --------- N
RUD --------R
AIL ----------N
ELE --------- N
RUD --------R
AIL ----------N
ELE --------- R
RUD --------R
AIL ----------R
ELE --------- R
RUD --------R
*Depending on the type of mounting plate,
it is also possible to mount as shown in
the figure.
*Depending on the type of mounting plate,
it is also possible to mount as shown in
the figure.

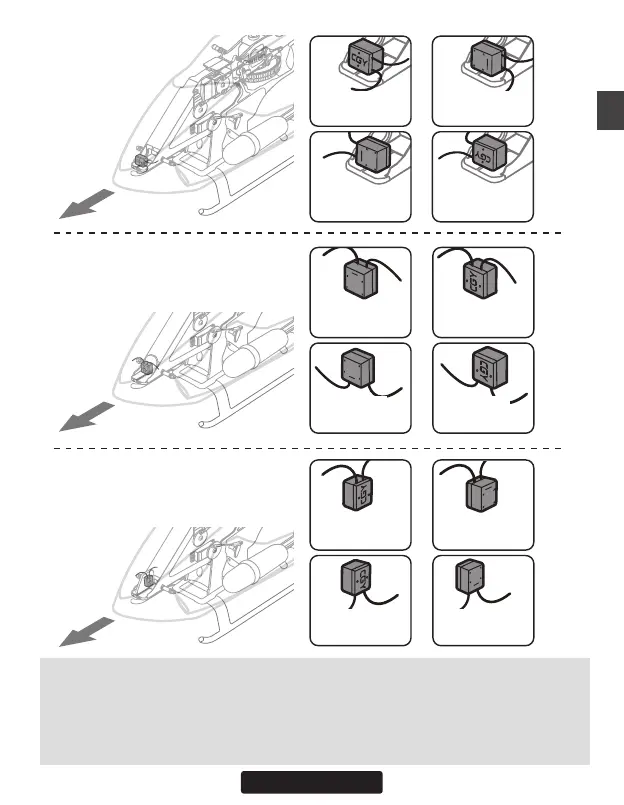

It is necessary to set the motion direction of each gyro by "AGy.Dir", "EGy.
Dir" of "SWH. BASIC" menu (page 50) and "Gyro.Dir" of "RUD BASIC" menu
(page 58).
AIL - Aileron (Roll) axis / ELE - Elevator (Pitch) axis / RUD - Rudder (Yaw) axis
N --- Normal / R --- Reverse
AIL ----------R
ELE --------- N
RUD --------N
AIL ----------N
ELE --------- R
RUD --------N
