GLIDER – TRIM MIX 1 (Set aileron/flap neutral position for selected flight conditions)
GROUP = ‘Sngl’
STATUS = INH (INH = for flight condition ‘CRUISE’, ‘LANDING’
and ‘MOTOR ON’)
STATUS = ON (ON = for the other flight conditions)
AIL AIL2
OFFSET 0 0 (Set aileron neutral position, down or up)
FLAP FLAP2
OFFSET 0 0 (Set flap neutral position, down or up)
OFFSET ELEVATOR
0 (Set elevator neutral compensation, if needed)

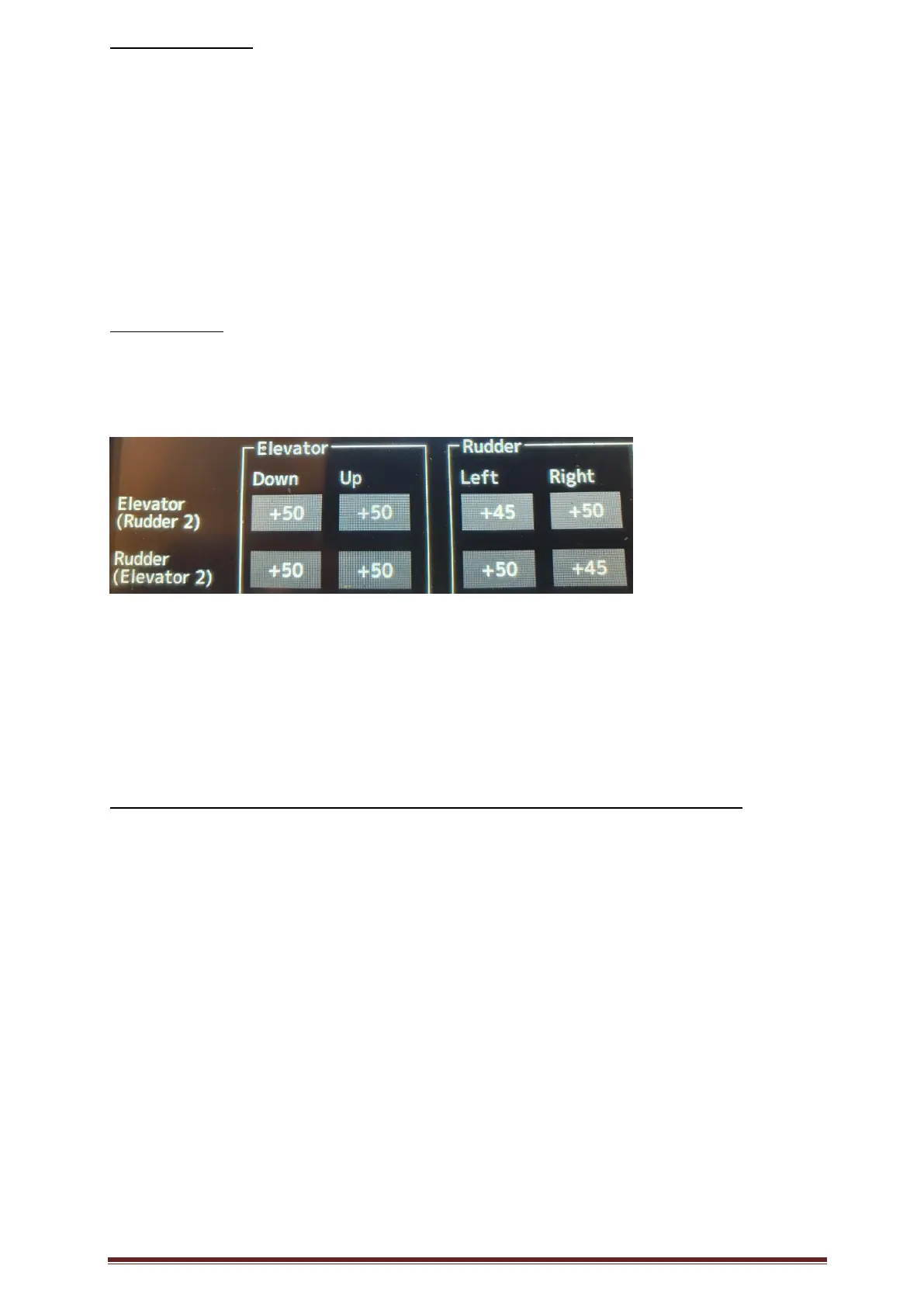

GLIDER – V-TAIL (V-Tail)
Group = ‘Grp’
Can be used for V-tail rudder differential,
or for adjusting the V-tail movement.
VARIABEL NEUTRAL POSITION FOR FLIGHT CONDITION – ‘THERMAL’
1. LS control the variable position. Check that LS is active:
Linkage - Function: CH 16 ”CAMBER LS”
2. To set the function, go to
Glider - Camber mixing
3. In flight condition = ‘THERMAL’.
GROUP = ‘Sngl’, (Only in ‘THERMAL’)
STATUS = ON (Mix is on)
4. With LS in the middle, neutral position is not changed. (Neutral position set by Trim Mix 1.)
Glider - Camber mixing: Curve:
For Aileron and Flap and Elevator
Rate A and Rate B = +50
Offset = 0
5. Glider - Camber mixing: Travel Set camber mixing end positions:
AIL = AIL2 = +10 max travel up/down (Rate 1, 2)
FLAP = FLAP2 = +10 max travel up/down (Rate 1, 2)
ELE = +10 max elevator compensation (Rate 1, 2)
To Next Page
