Appendix 2 – DVR Status Display

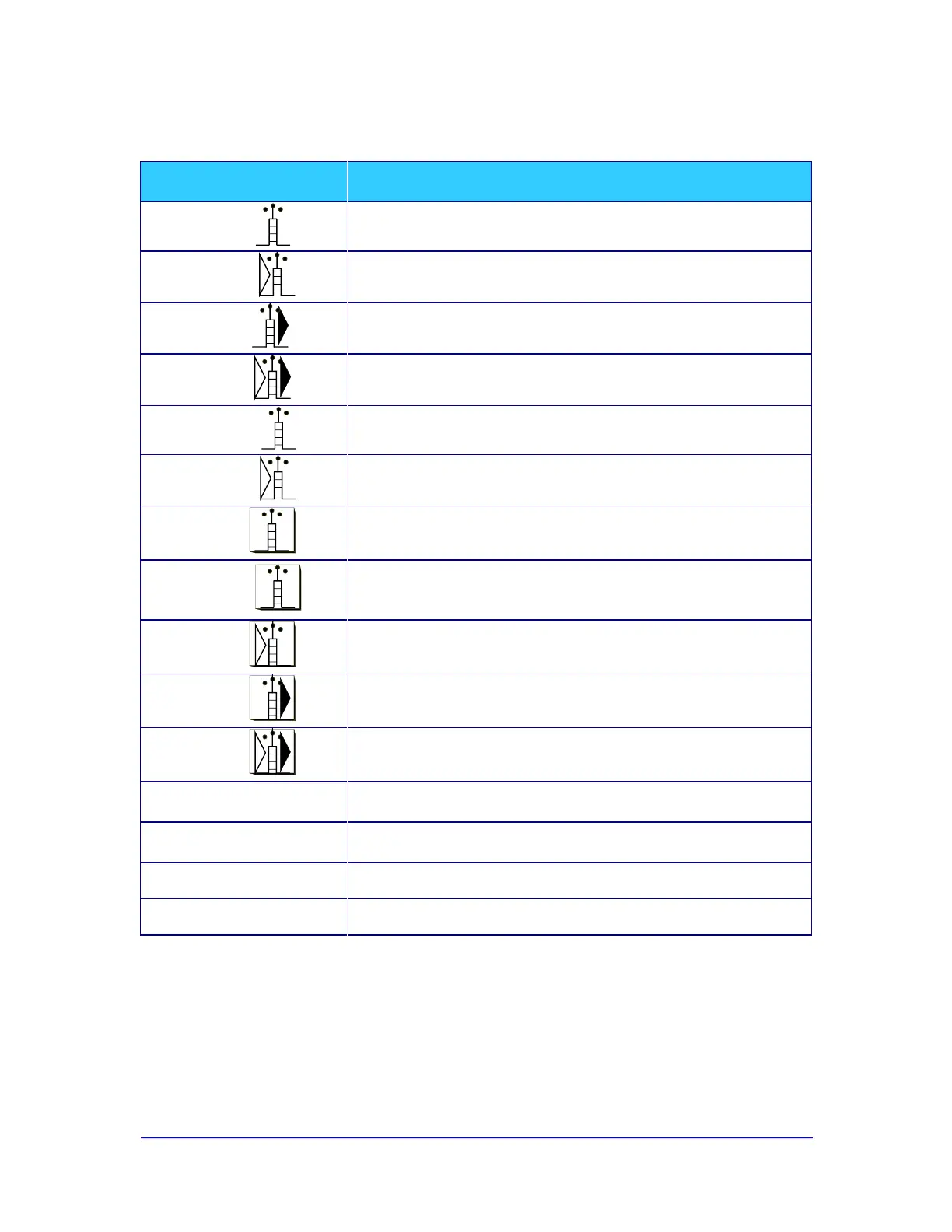

MSU CH DISPLAY
ICON / MESSAGE
DVRS STATUS DESCRIPTION
Steady
DVR is in a Primary State
Steady
Primary DVR Receiving
Steady
Primary DVR Transmitting
Steady
Primary DVR Receiving and Transmitting
Flashing
DVR is in a Secondary State
Flashing
Secondary DVR Receiving
Steady
DVR is in a Permanent Primary State
Flashing
DVR is in a Permanent Primary ‘On Standby’ State
(there is another Permanent Primary already present
in the area)
Steady
Permanent Primary DVR Receiving
Steady
Permanent Primary DVR Transmitting
Steady
Permanent Primary DVR Receiving and Transmitting
VR SERVICE
DVR is in Service Mode (during re-flashing of the
firmware).
VR ERROR
DVR Detected Error. Display toggles between VR
ERROR and the actual error code / number.
VR IN RESET
DVR is being reset
VR DISABLED
DVR Disabled on Selected MSU TG / Mode
