8M083X25 R14
APX Series P25 Interface
DVRS Installation & Programming Guide – PART I
January 2019
Page 34 of 153
In-Band DVR Dimensions

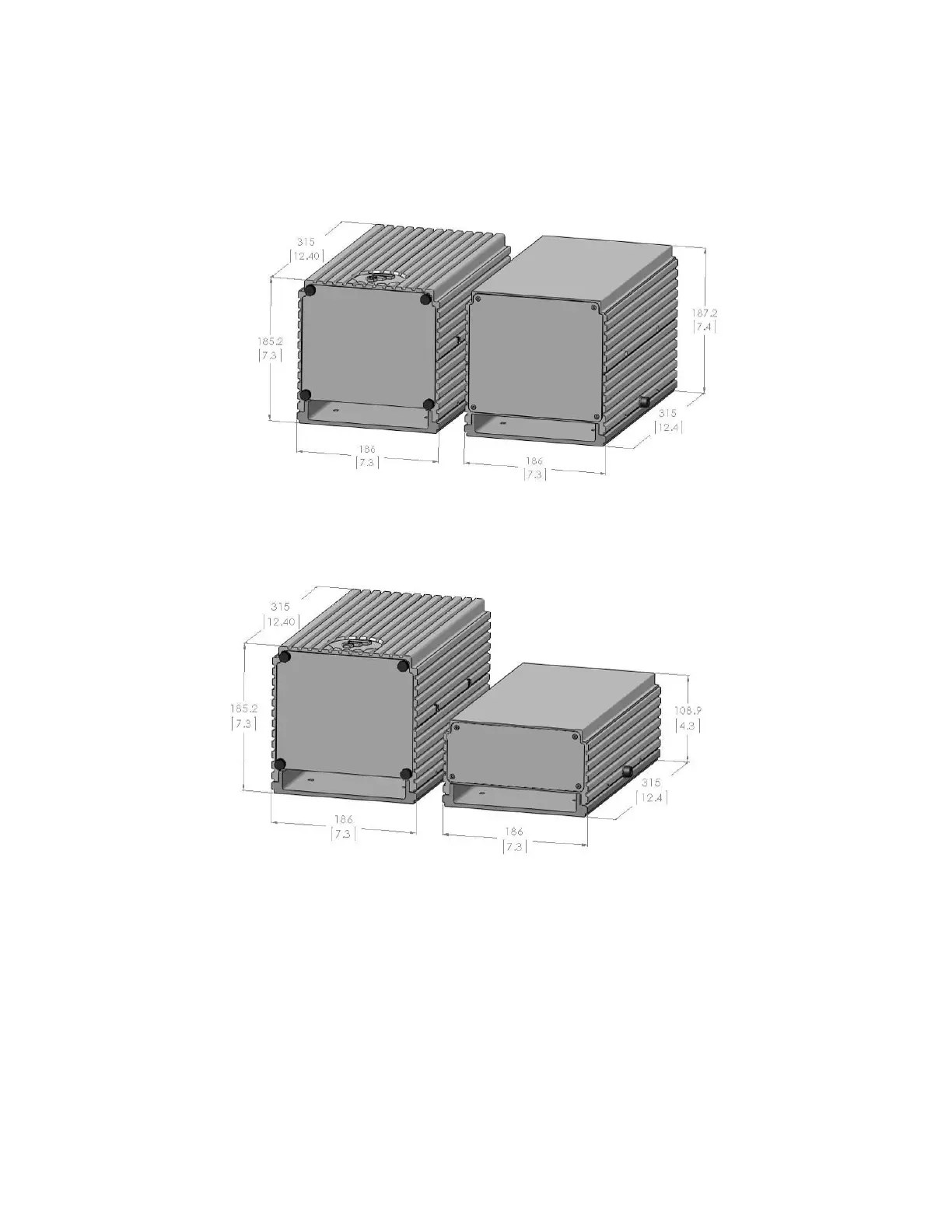

Figure 11 Typical VHF/UHF In-Band DVR (Full Duplex & Simplex) - Dimensions mm / [in]
Figure 12 Typical 700 / 800 In-Band DVR (Full Duplex & Simplex) - Dimensions mm / [in]
