Futurecom P25 - Figure 16 DVR-To- MSU Control Cable 7 W083 X05-01; Figure 17 DVR-To- MSU (with Siren) Control Cable 1 W083 B09-01

8M083X25 R14
APX Series P25 Interface
DVRS Installation & Programming Guide – PART I
January 2019
Page 41 of 153

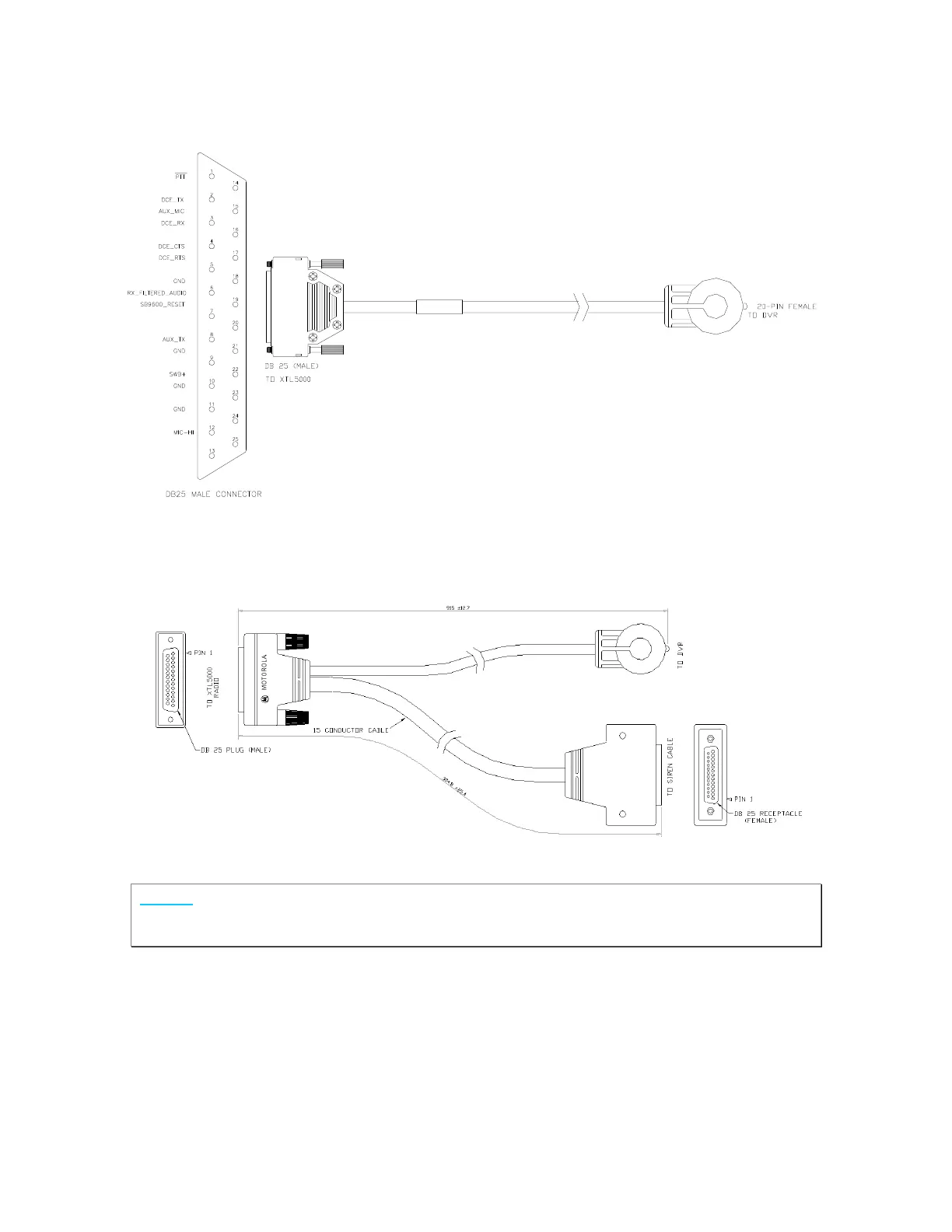

Figure 16 DVR-to- MSU Control Cable 7W083X05-01
Figure 17 DVR-to- MSU (with Siren) Control Cable 1W083B09-01
NOTE:
Only one of the above Control Cables (shown on Figure 16 and Figure 17) is required
per DVRS Installation.
