Futurecom P25 - Figure 19 In-Band VHF or UHF DVRS Interconnect Cabling - Front; Figure 20 In-Band VHF or UHF DVRS Interconnect Cabling - Back

8M083X25 R14
APX Series P25 Interface
DVRS Installation & Programming Guide – PART I
January 2019
Page 43 of 153

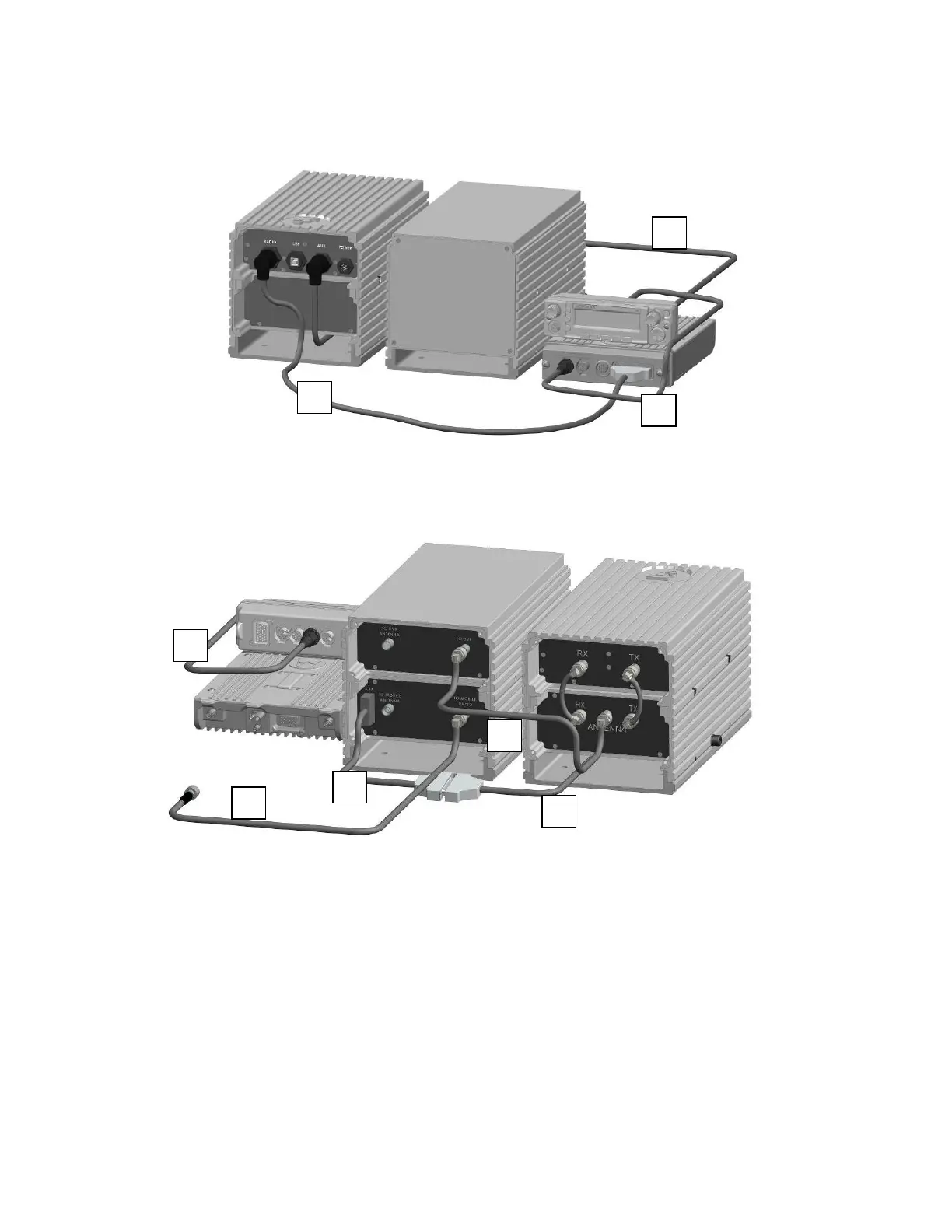

Figure 19 In-Band VHF or UHF DVRS Interconnect Cabling - Front
Figure 20 In-Band VHF or UHF DVRS Interconnect Cabling - Back
1
2
4
4
2
3
5
6
