2. Setting up the
Irrigation Controller
2.1Valve and Solenoid Assembly
2.1.1 Shut the main irrigation system valve.
2.1.2 Install the hydraulic valve in the
irrigation system.
Important!
It is recommended that you
do not disassemble the solenoid.
1
2
3
4
5
6
8
7
Water Flow Direction
Water Flow Direction

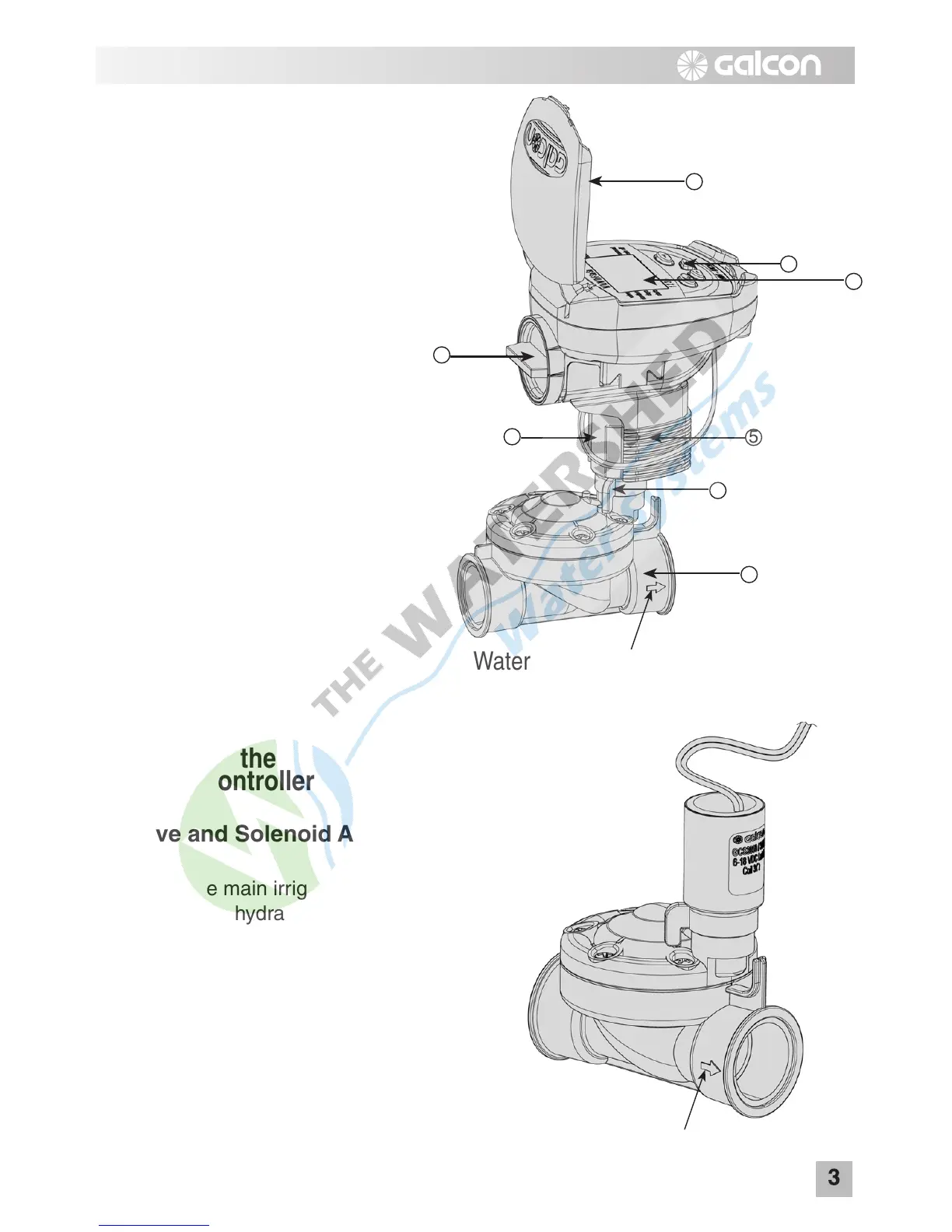

1. Parts Identification
1. Cover
2. Push buttons
3. Controller display
4. Battery compartment cover
5. Adaptor
6. Mechanical operation lever
7. Solenoid
8. Hydraulic valve
Important!
Assembly of a filter upstream
of the valve is mandatory.
(See list of accessories page 20).
