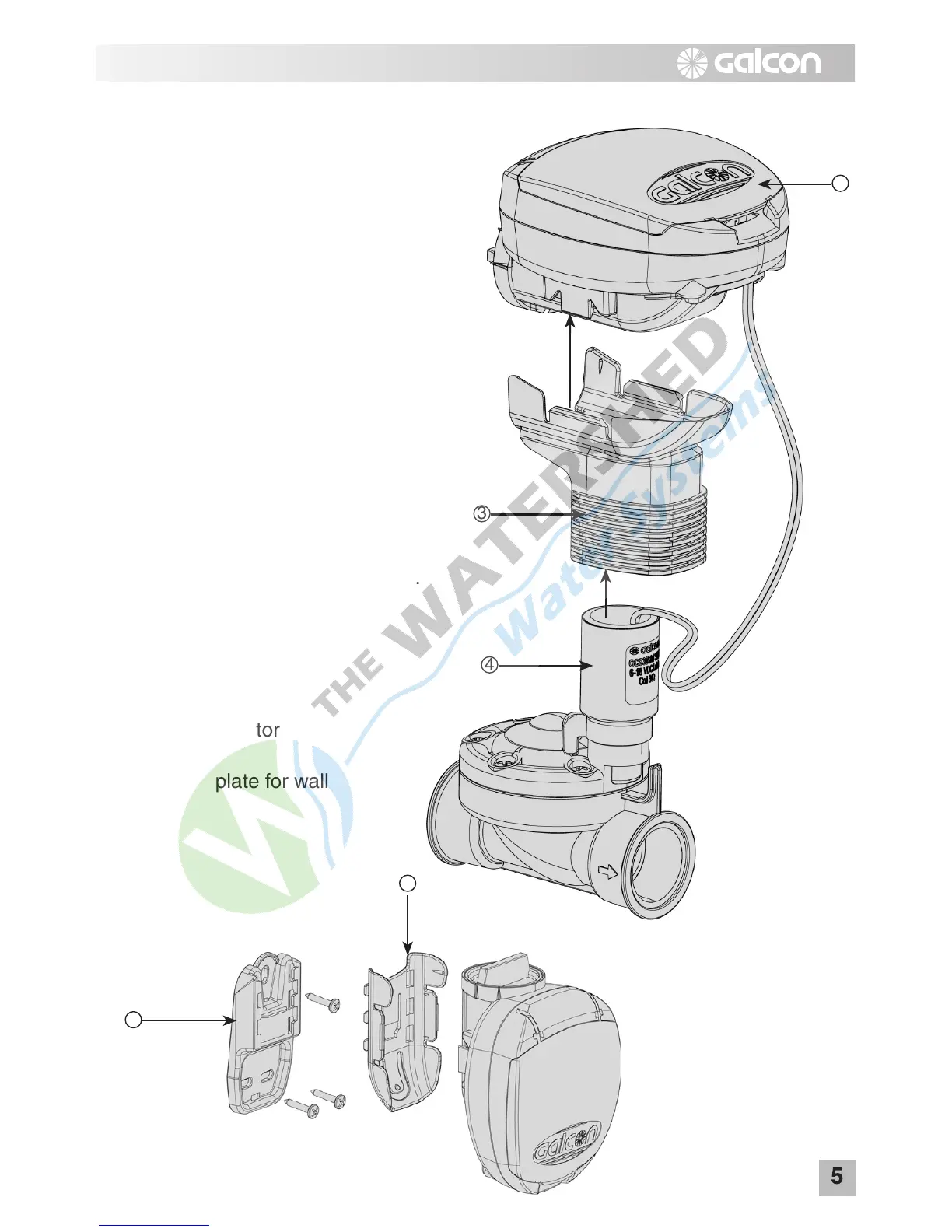

2.4 Installing the controller in the
irrigation system
The controller can be installed on the
solenoid or on the wall.
Installing on the solenoid
a. Put the solenoid adaptor on the
solenoid. The controller will be
assembled to the adaptor with
a small click.
Installing on the wall
a. Place the mounting plate (5)
on the wall using 3 screws
(not included).
b. Remove bracket (2) from controller
and slide onto the mounting plate.
c. Connect the controller to
the bracket (2) by pressing.
(1) Controller
(2) Bracket
(3) Solenoid adaptor
(4) Solenoid
(5) Mounting plate for wall
