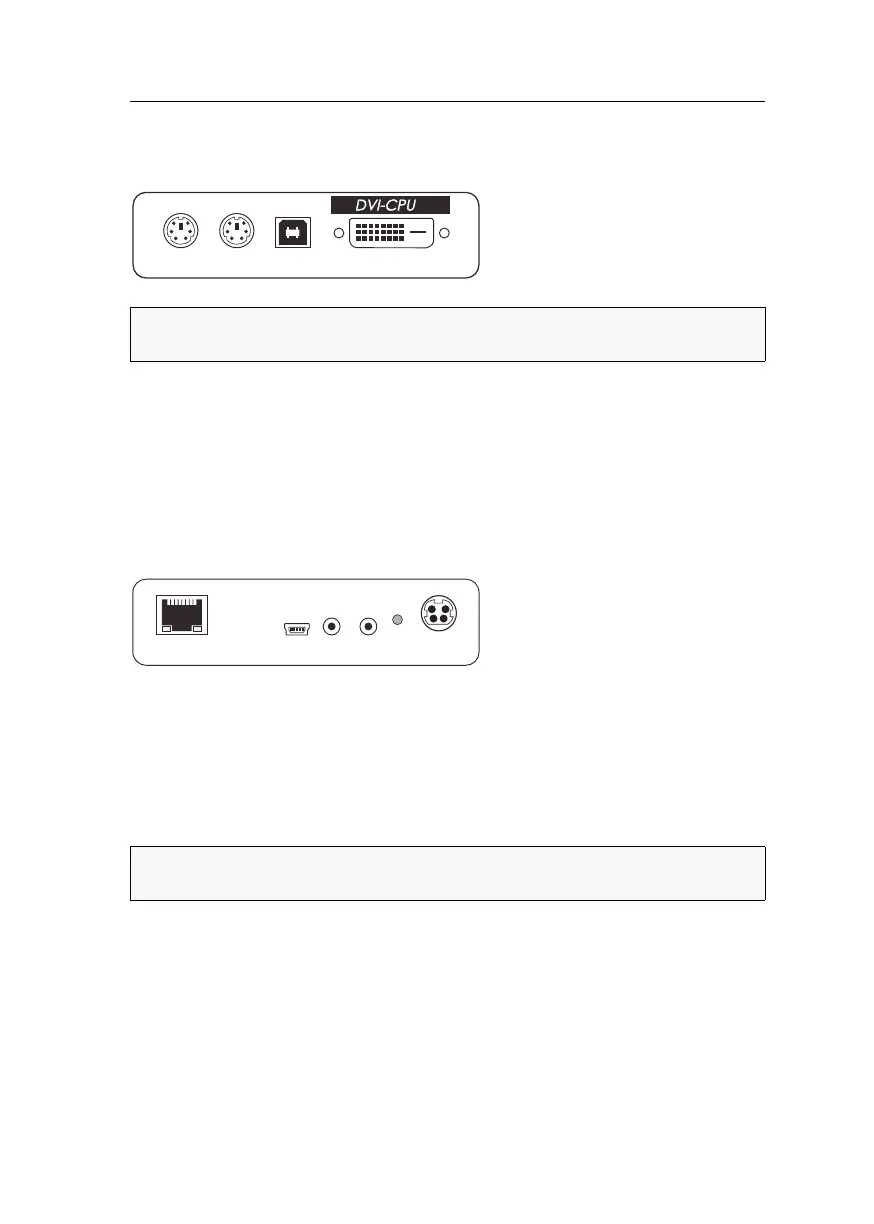

Computer module »DVI-CPU«
Computer and console modules · 5
Installation
Connecting computers
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the purple
PS/2 socket (keyboard) to this port.
Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the green
PS/2 socket (mouse) of the computer to this port.
USB K/M: Use the USB device cable to connect one of the computer’s USB ports to this
port.
DVI-D CPU: Use the video cable to connect the digital video output of the computer to
this port.
Line In: Use an audio cable to connect the Line-Out interface of the computer to this port.
Line Out: Use an audio cable to connect the Line-In interface of the computer to this port.
Connection to the matrix switch
Trans: Use a category 5e (or better) twisted pair cable to connect this interface to one
of the
Dynamic Port (RJ45) provided at the matrix switch.
NOTE:
Both keyboard and mouse signals can be transmitted to the computer using
the PS/2 or the USB ports.
ADVICE:
You can also connect the computer module directly to a compatible console
module.
MouseKeyb.
DVI-D CPUUSB K/M
