G&D DVI-CPU User Manual

Console module »DVI-CON-MC2«
104 · Computer and console modules
Installation
Connecting console devices
DVI/VGA Out 1: Connect the first console monitor.
DVI/VGA Out 2: Connect the second console monitor.
Micro In: Connect the console microphone (optional).
Speaker: Connect the console speakers (optional).
Keyb.: Connect the console’s PS/2 keyboard.
Mouse: Connect the console’s PS/2 mouse.
Keyb./Mouse: Connect the console’s USB keyboard and/or USB mouse.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
Enable the Generic HID mode (see page 193 f.) if you want to connect another USB
input device. In this mode, data of the USB input device remains unaltered when
transmitted to the active computer module.
LED Out: If you purchased and added the TradeSwitch feature to the matrix switch,
connect the optional
TS-LED here.
NOTE: Console keyboard and console mouse can be connected to the console
module’s USB or PS/2 interfaces.
IMPORTANT: With enabled Generic HID mode, it is not possible to operate the OSD
with a keyboard connected to the
Generic socket.

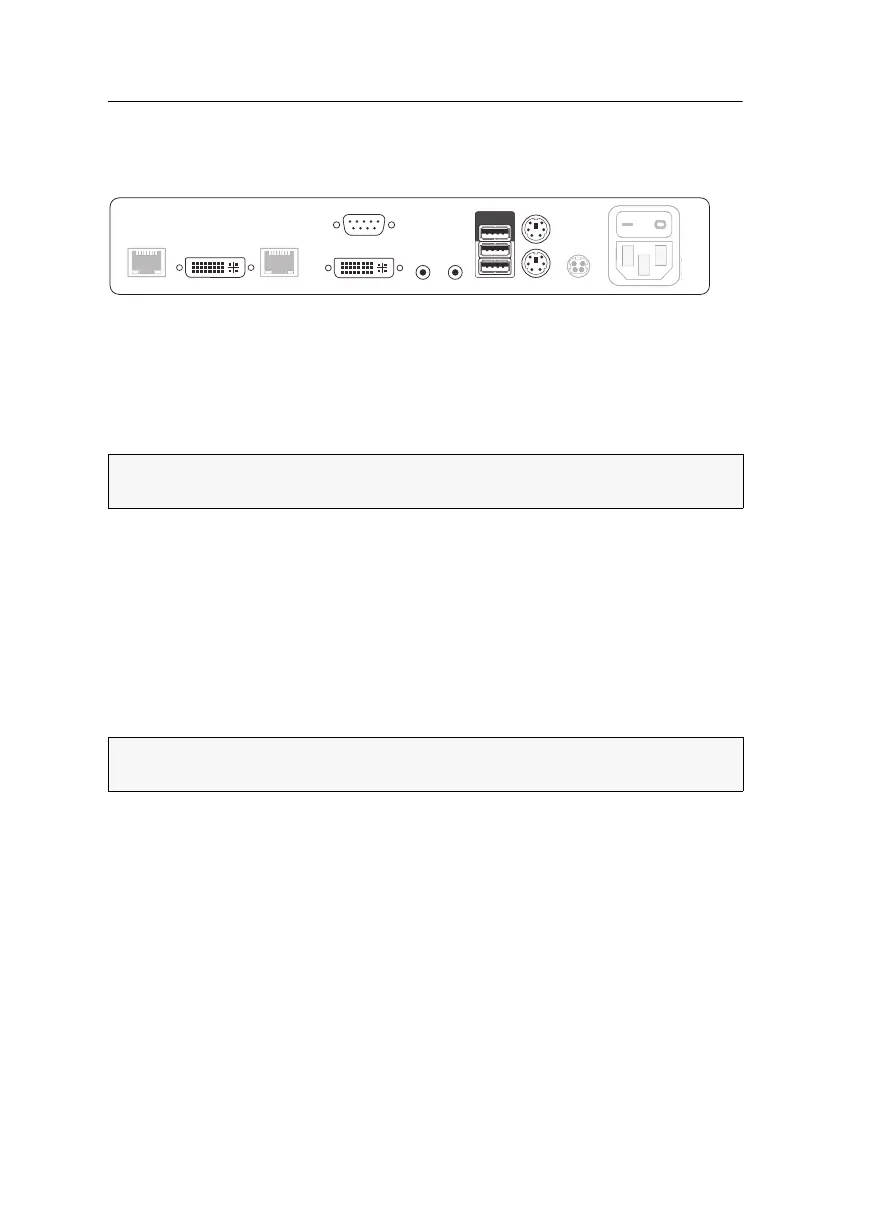

Main Power
LED Out
DVI/VGA Out 1
DVI/VGA Out 2
Red. Power
Mouse
Keyb.
Micro In
Speaker
Generic
Keyb./Mouse
Transmission 2
Transmission 1
Transmission
2
T
ransmission
1
Mai
n
P
ower
Red. Power
