G&D DVI-CPU User Manual

Console module »DVI-CON-Fiber«
130 · Computer and console modules
Connection to the matrix switch
Transmission |Tx: Insert the LC plug of an optical fibre cable.
Connect the other end of the cable to the Rx interface of a compatible Dynamic Port
provided at the matrix switch.
Transmission|Rx: Insert the LC plug of an optical fibre cable.
Connect the other end of the cable to the Tx interface of the same Dynamic Ports pro-
vided at the matrix switch.
The devices use components with laser technology which comply with laser
class
1.
They meet the requirements in accordance to EN 60825-1:2014 as well as
U.S. CFR 1040.10 and 1040.11.
Mind the following instructions when dealing with laser beams:
 Avoid direct eye exposure to beam on page 3
 Always connect optical connections or cover them with protection caps on page 3
 Only use G&D certified transmission modules on page 3
NOTE: Use optical fibres with LC plugs to connect the devices. The cables are avail-
able as accessories.
ADVICE: You can also connect the console module directly to a compatible computer
module.

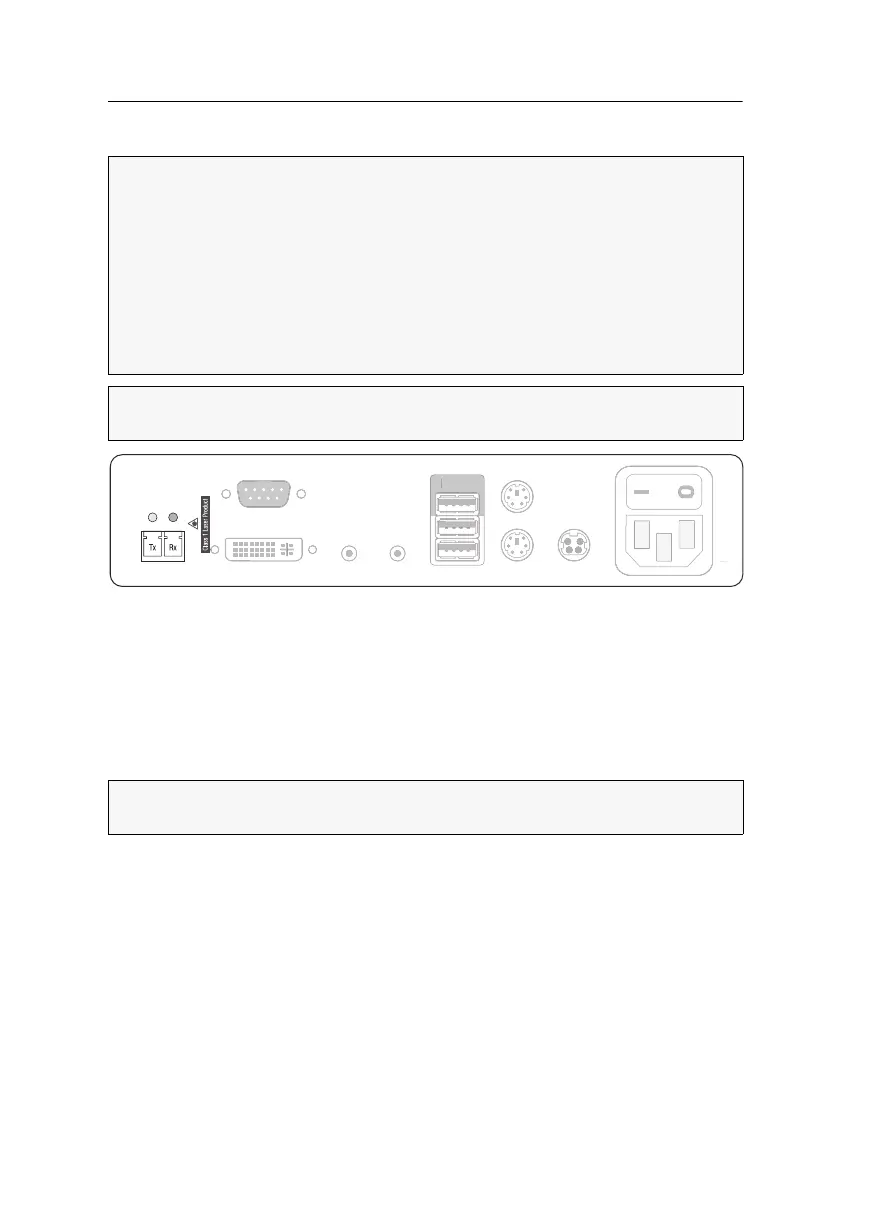

Transmission
Main Power
Red. Power
DVI / VGA Out
LED out
Mouse
Keyb.
Micro In
Keyb./Mouse
Speaker
Generic
M
a
i
n
P
ower
Red
.
Po
w
er
DVI
/
V
G
A
O
u
t
LED ou
t
Mouse
K
e
yb.
Mi
cro
In
Keyb.
/
Mous
e
Sp
eaker
G
eneric
