Computer module »DVI-CPU-UC«

Computer and console modules · 9

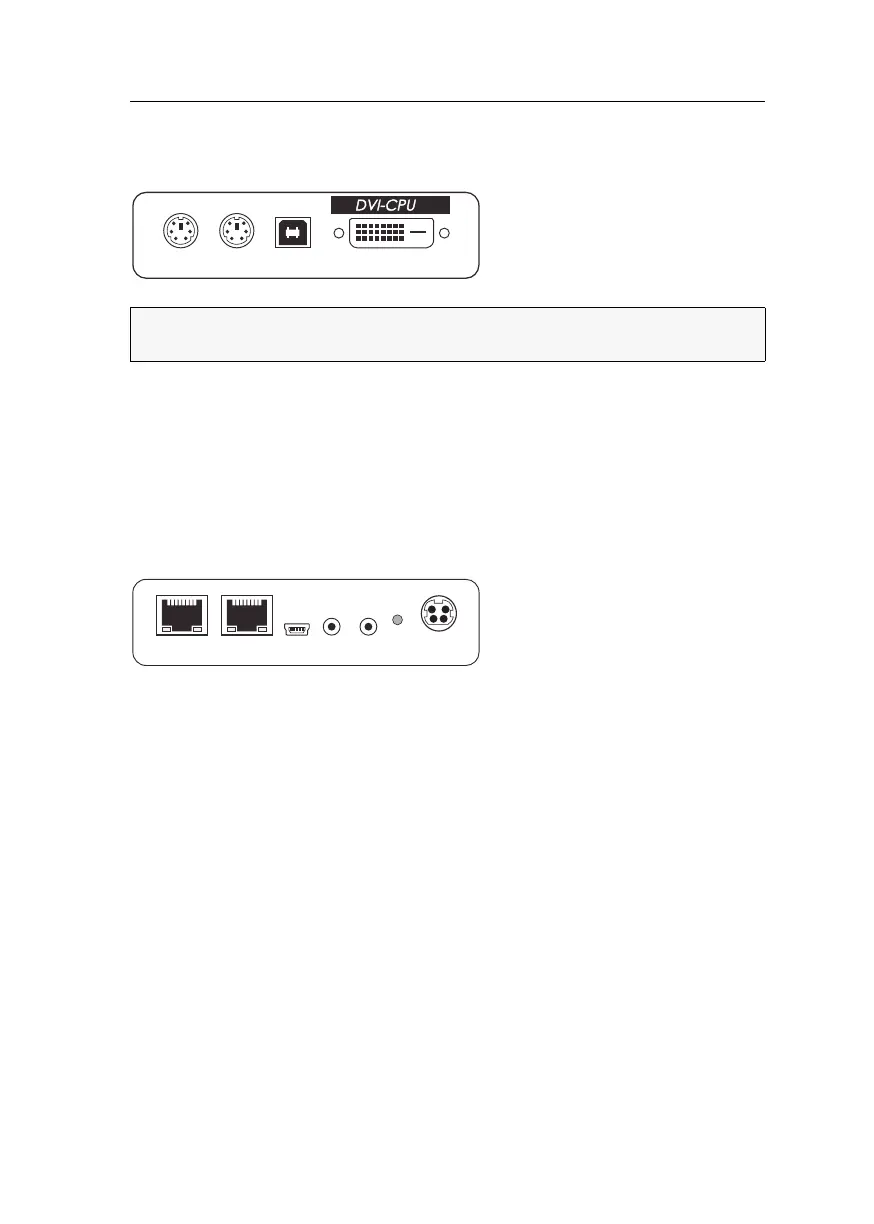

Installation

Connecting the computer

Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the purple

PS/2 socket (keyboard) to this port.

Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the green

PS/2 socket (mouse) of the computer to this port.

USB K/M: Use the USB device cable to connect one of the computer’s USB ports to this

port.

DVI-D CPU: Use the video cable to connect the digital video output of the computer to

this port.

Line In: Use an audio cable to connect the computer’s Line-Out interface to this port.

Line Out: Use an audio cable to connect the computer’s Line-In interface to this port.

NOTE:

Both keyboard and mouse signals can be transmitted to the computer using

the PS/2 or the USB ports.

MouseKeyb.

DVI-D CPUUSB K/M












