G&D DVI-CPU User Manual

Console module »DVI-CON-2-Fiber«
156 · Computer and console modules
Installation

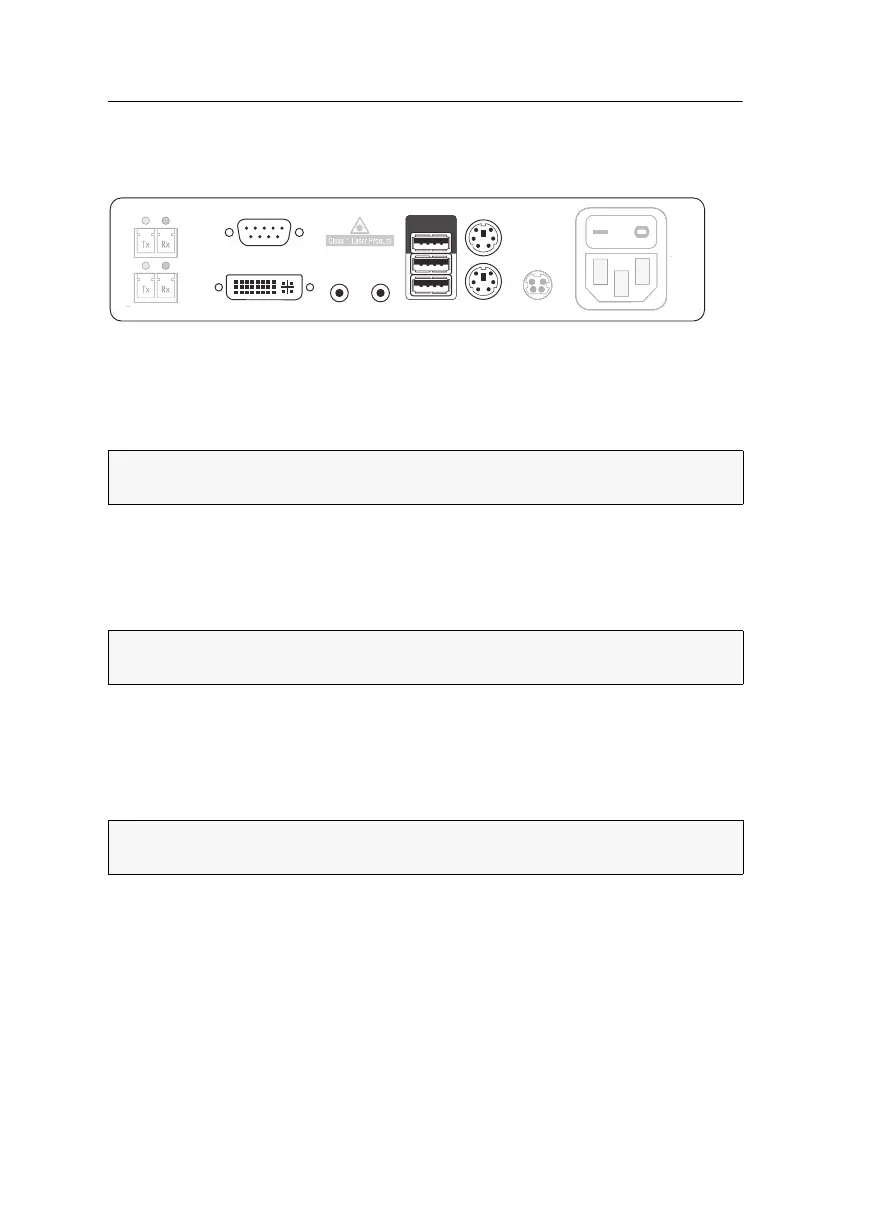

Connecting the console devices
DVI/VGA Out: Connect the monitor of the local console.
Micro In: Connect the optional microphone of the local console.
Speaker: Connect the optional speakers of the local console.
Keyb.: Connect the PS/2 keyboard of the local console.
Mouse: Connect the PS/2 mouse of the local console.
Keyb./Mouse: Connect the USB keyboard and/or the USB mouse of the local
console.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
Enable the Generic HID mode (see page 193 f.) if you want to connect another USB
input device. In this mode, data of the USB input device remains unaltered when
transmitted to the active computer module.
LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, con-
nect the optional TS-LED here.
HINWEIS: Console keyboard and console mouse can be connected to the console
module’s USB or PS/2 interfaces.
NOTE: Mixed operation, for example connecting a USB mouse and a PS/2 key-
board is supported, too.
IMPORTANT: With enabled Generic HID mode, it is not possible to operate the OSD
with a keyboard connected to the
Generic socket.
Main Power
LED Out
DVI/VGA OutTransmission 1
Transmission 2
Red. Power
Mouse
Keyb.Micro In
Speaker
Generic
Keyb./Mouse
T
ransm
i
ss
i
on
1
Tr
a
n
s
mi
ss
ion
2
Mai
n
P
owe
r
R
e
d
.
P
ower
