G&D DVI-CPU User Manual

Console module »DVI-CON-12V«
166 · Computer and console modules

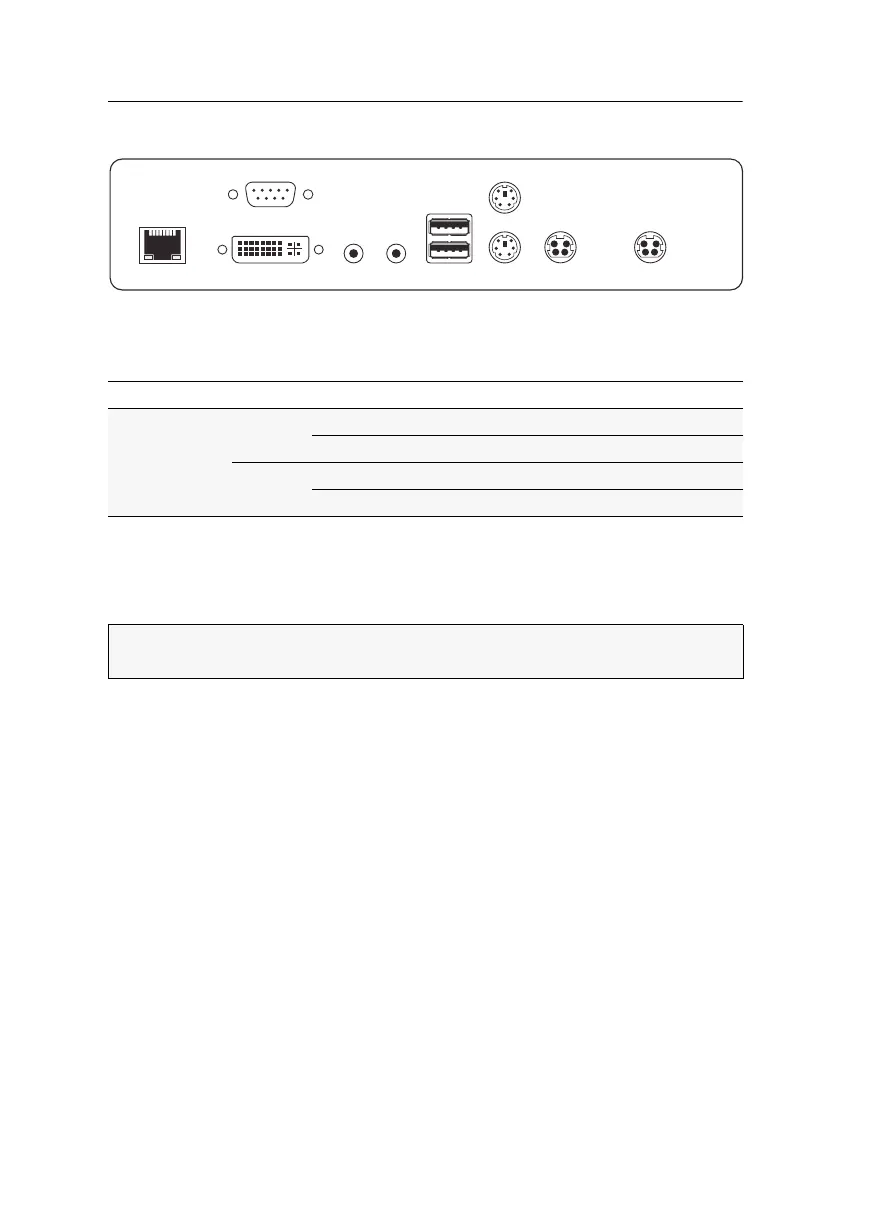

Back panel
The Transmission interface at the back panel of the console module provides addi-
tional status LEDs. The LEDs have the following meaning:
TradeSwitch-LED
The optional TS-LED lights if the keyboard and mouse signals of a leader console
are accessing the console module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
NOTE: Keyboard and mouse signals can only access another console module or a
computer if you activated the TradeSwitch function for the matrix switch.
Transmission
Mouse
Keyb.
DVI/VGA Out
Micro In
Speaker Keyb./Mouse
Red. Power
LED Out
Main Power
