Computer module »DVI-CPU-MC2«
14 · Computer and console modules
Installation

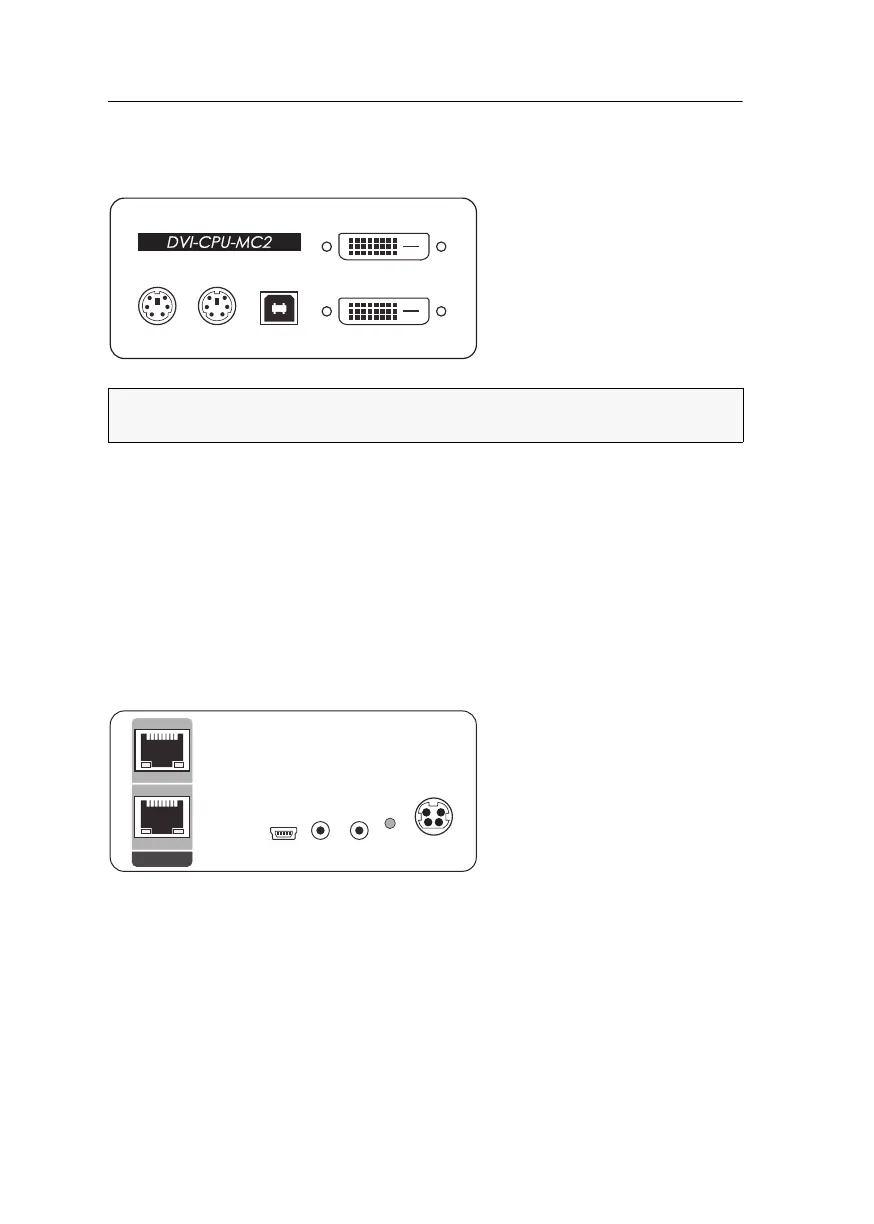

Connecting the computer
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 keyboard interface to this interface.
Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 mouse interface to this interface.
USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces
to this interface.
DVI-D CPU 1: Use one of the supplied video cables to connect the computer’s first
digital video output to this interface.
DVI-D CPU 2: Use one of the supplied video cables to connect the computer’s second
digital video output to this interface
.
Line In: Use one of the supplied audio cables to connect the computer’s Line Out
interface to this interface.
Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-
face to this interface.
NOTE: Keyboard and mouse signals can be transmitted to the computer using either
the PS/2 interfaces or the USB interface.
DVI-D CPU 2
Keyb.
DVI-D CPU 1USB K/M
Mouse
Trans.
Line In
Line Out
Power In
Service
Channel 2
Power
Channel 1
