Computer module »DL-DVI-CPU«
Computer and console modules · 37

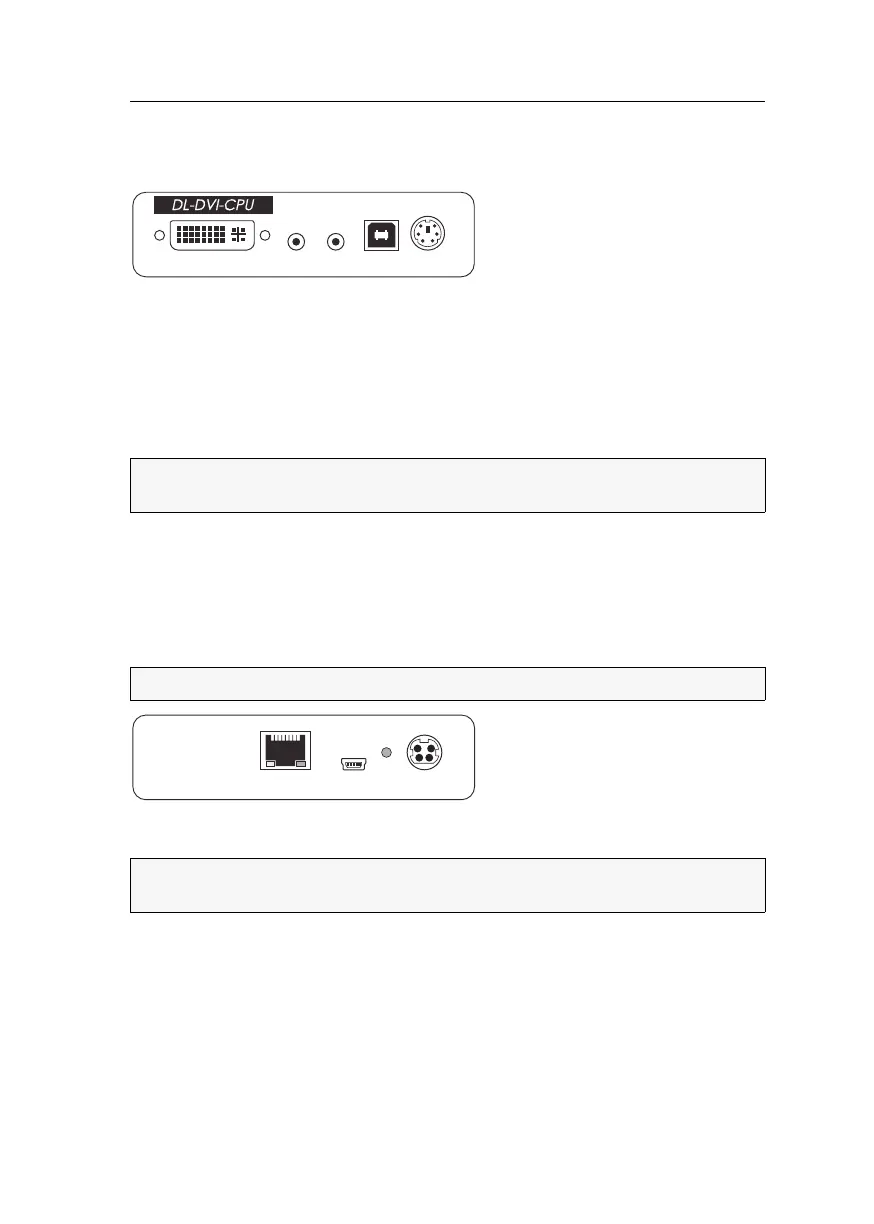

Installation
Connecting the computer
DL-DVI CPU: Use the supplied video cable to connect the computer’s video output to
this interface.
Line In: Use one of the supplied audio cables to connect the computer’s Line Out
interface to this interface.
Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-
face to this interface.
USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces
to this interface.
Keyb.: Use an optional PS/2 cable to connect the computer’s PS/2 keyboard interface
to this interface.
Connection to the matrix switch
Trans.: Connect this interface to a Dynamic Port (RJ45) of a matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
NOTE:
Keyboard and mouse signals can be transmitted to the computer using either
the PS/2 interfaces or the USB interface.
NOTE:
Use category 5e (or better) twisted pair cabling for the cable connection.
ADVICE:
You can also connect the computer module directly to a compatible console
module.
