4 Connecting the modules → Q.bloxx A111: Connecting sensors and I/O
4.17 Q.bloxx A111: Connecting sensors and I/O
The Q.bloxx Module A 111 has four electrically isolated analog
inputs. The pin assignment of the two connector strips is identical
and the connection terminals have numbers for identifying the
connections. You will find the associated figures in each case at
the same place in the circuit diagrams, for example each of the
figures quoted in the second place belong to one possible connec-
tion method. NC signifie
s “No Connection”.
Measurement ground and (module) supply voltage are electri-
cally isolated in the module.

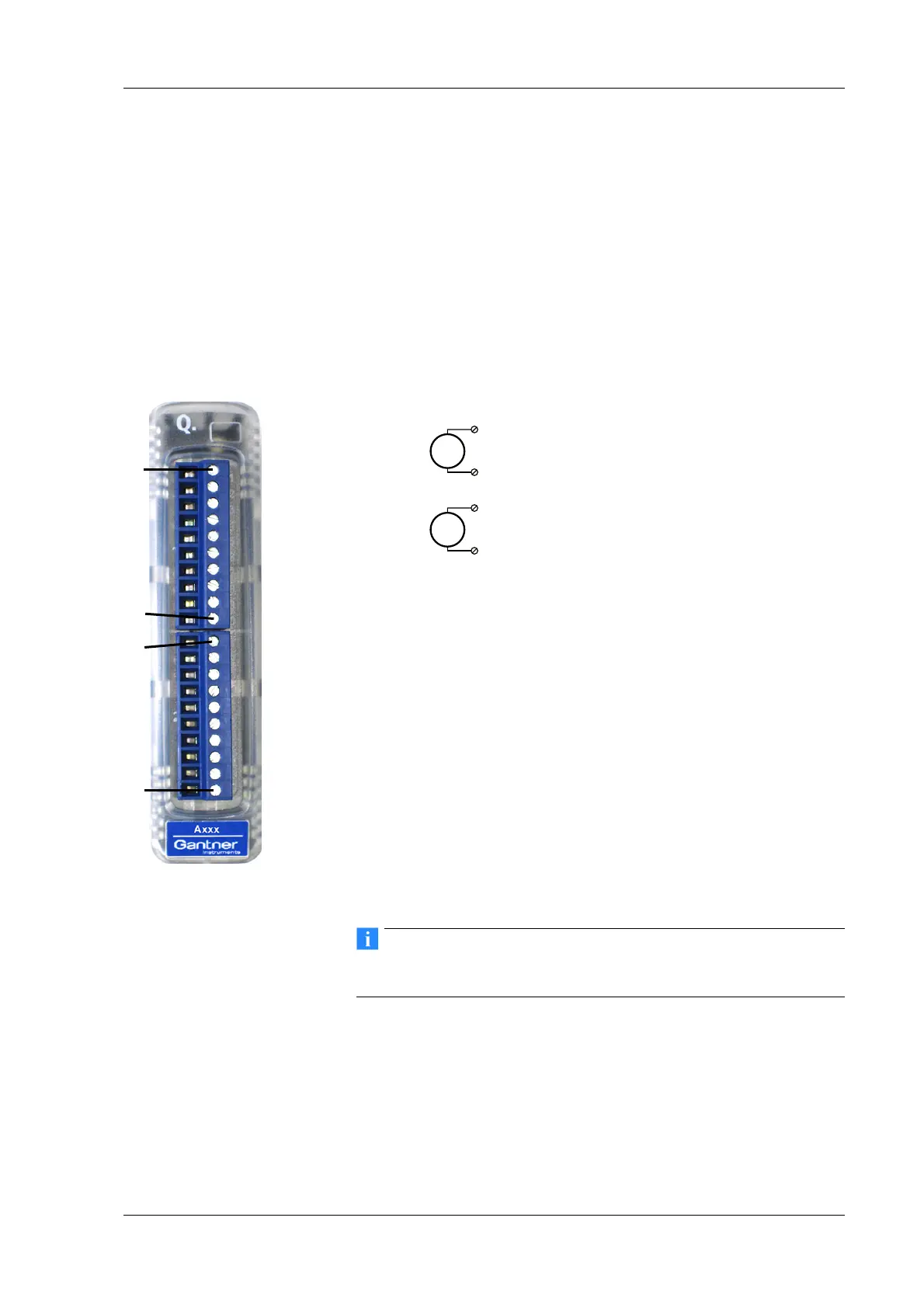

Fig. 4-67 Pin assignment for Q.bloxx Module A111.
Tip
Further information on transducers and sensors can also be
found in Chapter 6 ff. page 135.
4.17.1 Voltage
You can measure voltages of up to 10 V.
10110 1Plug 1Plug 2
U
2, 7 (+)
4, 9 (–)
IEPE
4, 9 (–)
2, 7 (+)
1NC
2A
In
1+
3NC
4A
In
1–
5NC
6NC
7A
In
2+
8NC
9A
In
2–
10 NC
1NC
2A
In
3+
3NC
4A
In
3–
5NC
6NC
7A
In
4+
8NC
9A
In
4–
10 NC
