93
4 Connecting the modules → Q.bloxx D101: Connecting I/O

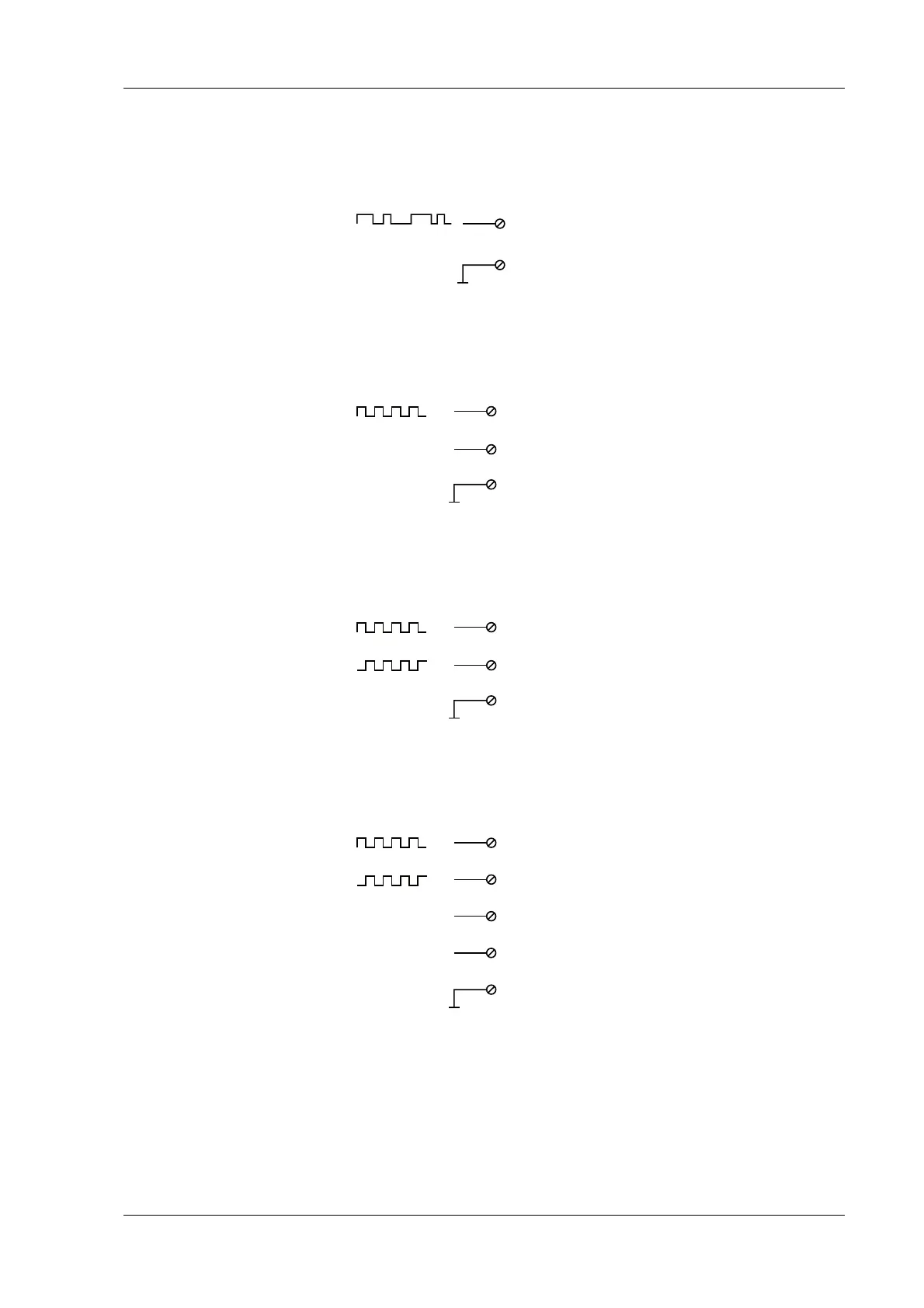

Measurement of status, time, frequency or PWM 
(Pulse-Width Modulation), 1 signal
Up/down counter or measurement of frequency and direction with
static direction signal, 2 signals
Measurement of frequency and direction or up/down counter with
2-channel frequency signal (90° phase delay)
Measurement of frequency and direction or up/down counter with
4-channel frequency signal
D
in
0V
D
in
+/-
0V
D
in
0V
D
in
Index
Index
enable
0V
