Gardena SILENO minimo User Manual

R
GUIDE
L
POWER

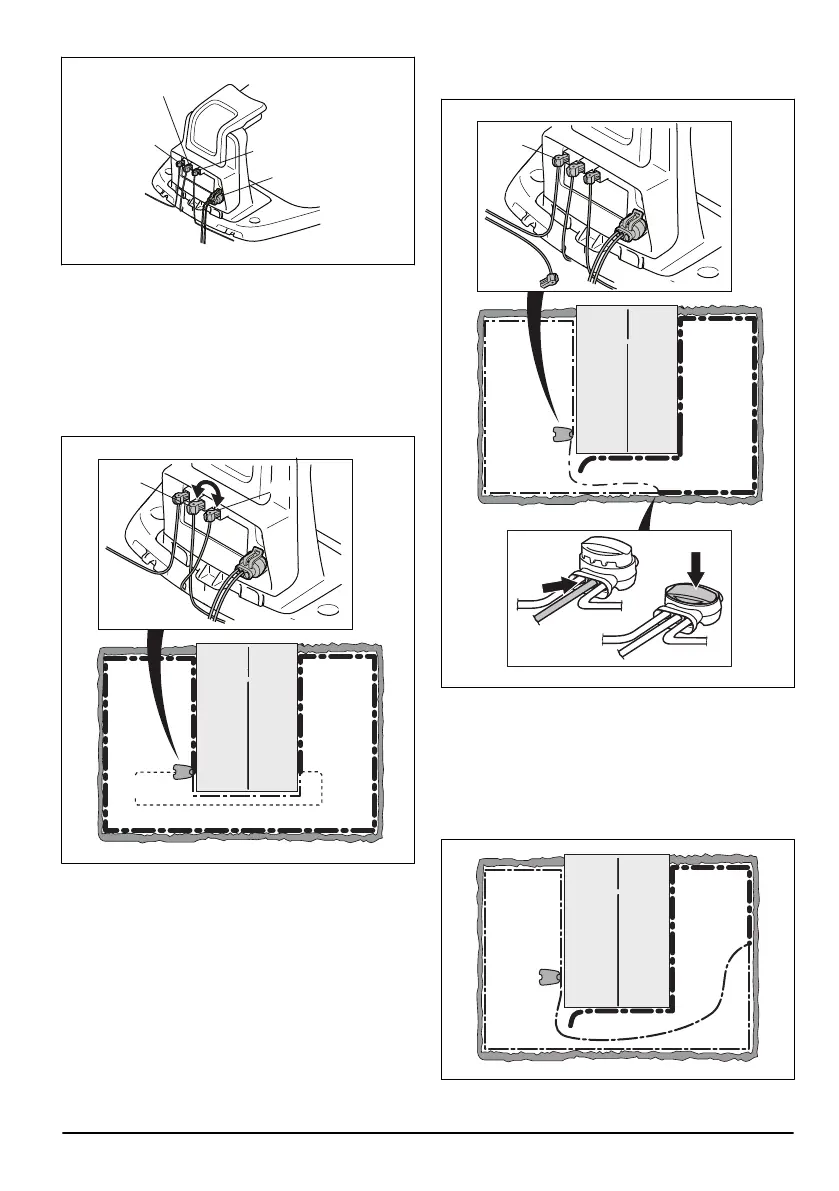

3. Switch the connections between the guide wire
and the boundary wire in the charging station.
Start by switching connection L and GUIDE.
If the indicator lamp is flashing yellow, then the
break is somewhere on the boundary wire between
L and the point where the guide wire is connected
to the boundary wire (thick black line in the
illustration).
GUIDE
L
Guide
To rectify the fault you will need boundary wire,
connector(s) and coupler(s):
a) If the suspected boundary wire is short then the
easiest way is to exchange all of the boundary wire
between L and the point where the guide wire is
connected to the boundary wire (thick black line).
b) If the suspected boundary wire is long (thick
black line) then do as follows: Put L and GUIDE
back to their original positions. Then disconnect R.
Connect a new loop wire to
R. Connect the other
end of this new loop wire at the middle of the
suspected wire section.
R
If the indicator lamp now is flashing yellow, then
the break is somewhere in the wire between the
disconnected end to the point where the new wire
is connected (thick black line below). In that case,
move the connection for the new wire closer to the
disconnected end (roughly at the middle of the
suspected wire section) and check again if the
indicator lamp is green.
1585 - 002 - 08.12.2020 Troubleshooting - 39

Gardena SILENO minimo Specifications

General

Type	Robotic lawn mower
Noise level	57 dB
Cutting width	160 mm
Grass catcher	-
Product color	Black, Blue
Maximum lawn area	250 m²
Maximum cutting height	45 mm
Minimum cutting height	20 mm
International Protection (IP) code	IPX5
Power source	Battery
Charging time	1.25 h
Power consumption per month (max)	2.1 kWh

Weight and Dimensions

Depth	520 mm
Width	340 mm
Height	220 mm
Weight	6100 g
