Gardena SILENO minimo User Manual

Continue until only a very short section of the wire
remains which is the difference between a solid
green light and a flashing blue light. Then follow
instruction in step 5 below.
4. If indicator lamp still flashes blue in step 3
above: Put L and GUIDE back in their original
positions. Then switch R
and GUIDE. If indicator
lamp now is lit with a solid green light then
disconnect L and connect a new boundary wire to
L. Connect the other end of this new wire at the
middle of the suspected wire section. Follow the
same approach as in 3a) and 3b) above.

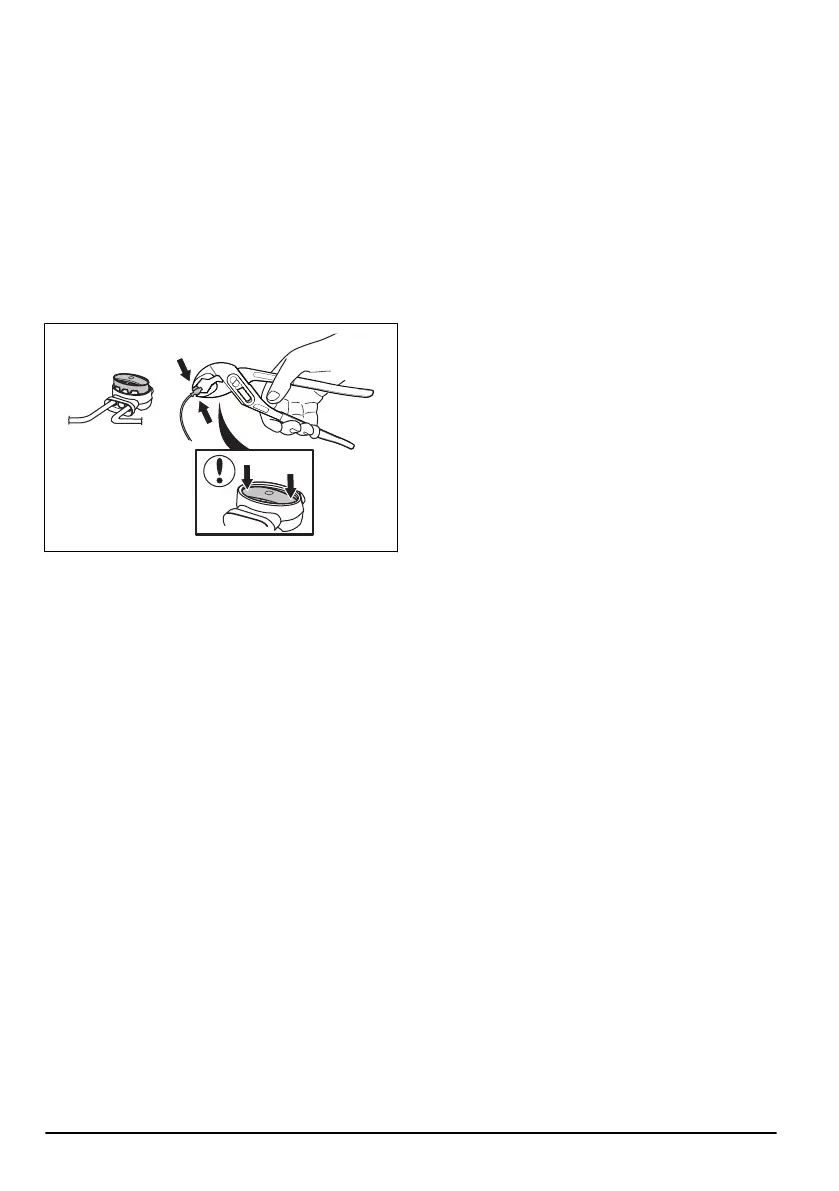

5. When the break is found, the damaged section
must be replaced with a new wire. Always use
original couplers.
40 - Troubleshooting 1585 - 002 - 08.12.2020

Gardena SILENO minimo Specifications

General

Type	Robotic lawn mower
Noise level	57 dB
Cutting width	160 mm
Grass catcher	-
Product color	Black, Blue
Maximum lawn area	250 m²
Maximum cutting height	45 mm
Minimum cutting height	20 mm
International Protection (IP) code	IPX5
Power source	Battery
Charging time	1.25 h
Power consumption per month (max)	2.1 kWh

Weight and Dimensions

Depth	520 mm
Width	340 mm
Height	220 mm
Weight	6100 g
