12
INSERT A
B2000 Bender Assembly
Item # Part # # Req’d Description
1 Figure 2, pg. 4 1 Shoe Sub Assm
2 Figure 3, pg. 5 1 Limit Switch Assm
3 CL712647SR 1 Cable, Limit and Switch
4 SHM115 1 Sprocket Housing
5 CL157108 1 Washer, Shoe
6 CL221108 1 Washer, Thrust
7 CL170228 1 Shoe Sprocket
8 CL333066 1 Chain
9 Common Repl. 4
3
⁄8"-24 x 2-
1
⁄2 Grade 5 Zinc Plated
Part Hex Cap Screw
10 Common Repl. 4
3
⁄4” plu SAE Flat Washer
Part
11 LA205 1 Leg Assembly (incl. 13, 19 & 21)
12 CK994900 1 Upper Roller and Handle (Figure 5)
13 CB208 2 Casters Assm (Hardware incl.)
14 CL185061 1 Locking Pin
15 CL183110 1 Spring
16 F57044 1 Ring
17 M00084 2 Screw, Shoulder
18 WB207 2 Wheel Assm (incl. 19 & 21)
19 Common Repl. 2
3
⁄32" x 1-
1
⁄4" Zinc plated cotter pin
Part
B2000 Bender Assembly, cont.
Item # Part # # Req’d Description
20 CU295900K 1 Roller Housing Assm (Figure 4)
21 CK696108 1 Washer
22 CL229248 4 Shim
23 Common Repl. 1
3
⁄8" -16 x 1" g. Low Carbon Hex
Part Head Cap Screw Zinc plated
24 Common Repl. 1
5
⁄16" Zinc plated USS Flat Washer
Part
25 EC2006 1 Relay Control Assm (Figure 9)
26 LP204 1 End Plate (incl. 34 & 35)
27 HC12 1 Handle & Ctrl Ckt Assm (Figure 7)
28 call tech support 1 Wire Assembly (See Above)
29 call tech support 1 Wire Assembly (See Above)
30 E1001104 2 Push-on Connector (See Above)
31 E1001021 2 Ring-Tongue Connector (See Above)
32 call tech support 1 Wire Assembly (See Above)
33 call tech support 1 Wire Assembly (See Above)
34 Common Repl. 8
1
⁄2"-13 x
7
⁄8" Alloy Plain Finish Socket
Part Head Cap Screw
35 Common Repl. 8
1
⁄2" Plain Finish High Collar
Part Lock Washer
36 CM129006 1 Seal
37 LK15 2 Decal Kit
38 H905 1 Rear Handle

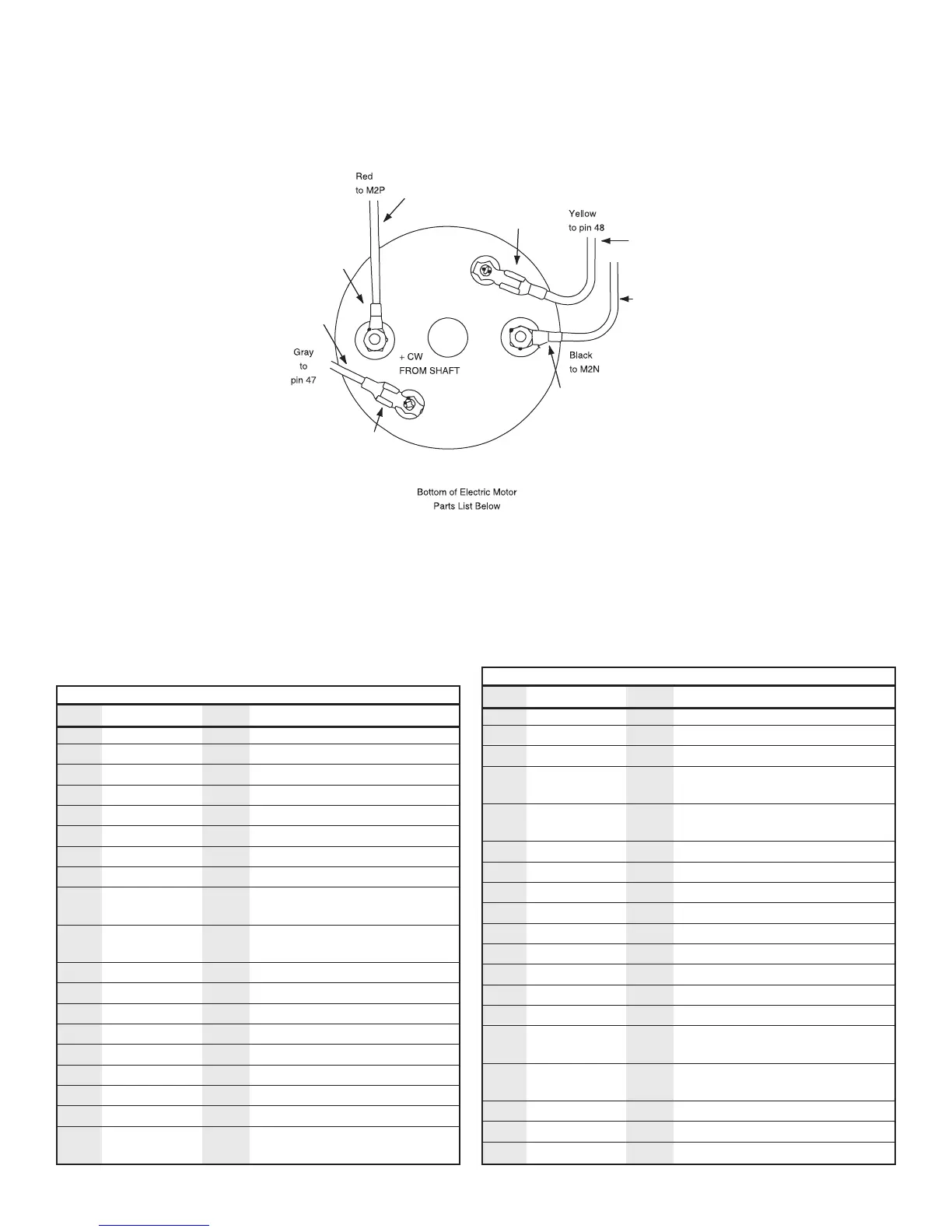

32
33
30
28
31
30
31
29
