Gardner Bender B2000 Cyclone - Limit Switch

14
1
2
3
5
6
9
8 8
8
7
1
1
B2000CK Clamp kit
2 CM802950N Knob Sub Assembly Kit
3 CM767108 Washer
4 CM801950 Upper Plate Assembly
5 B2000-TRK Trip Ring Assembly Kit
6 CM803950N Actuator Kit
7 B2000LSK Limit Switch Kit
8 DA9687372 Limit Switch (3-Pack)
10 CM593026 Pipe size decal EMT
11 CM594026 Pipe size decal Rigid/IMC
12 ZCF679220 Plate Assembly Kit
12
11
10
4
(Incl. #10
& #11)

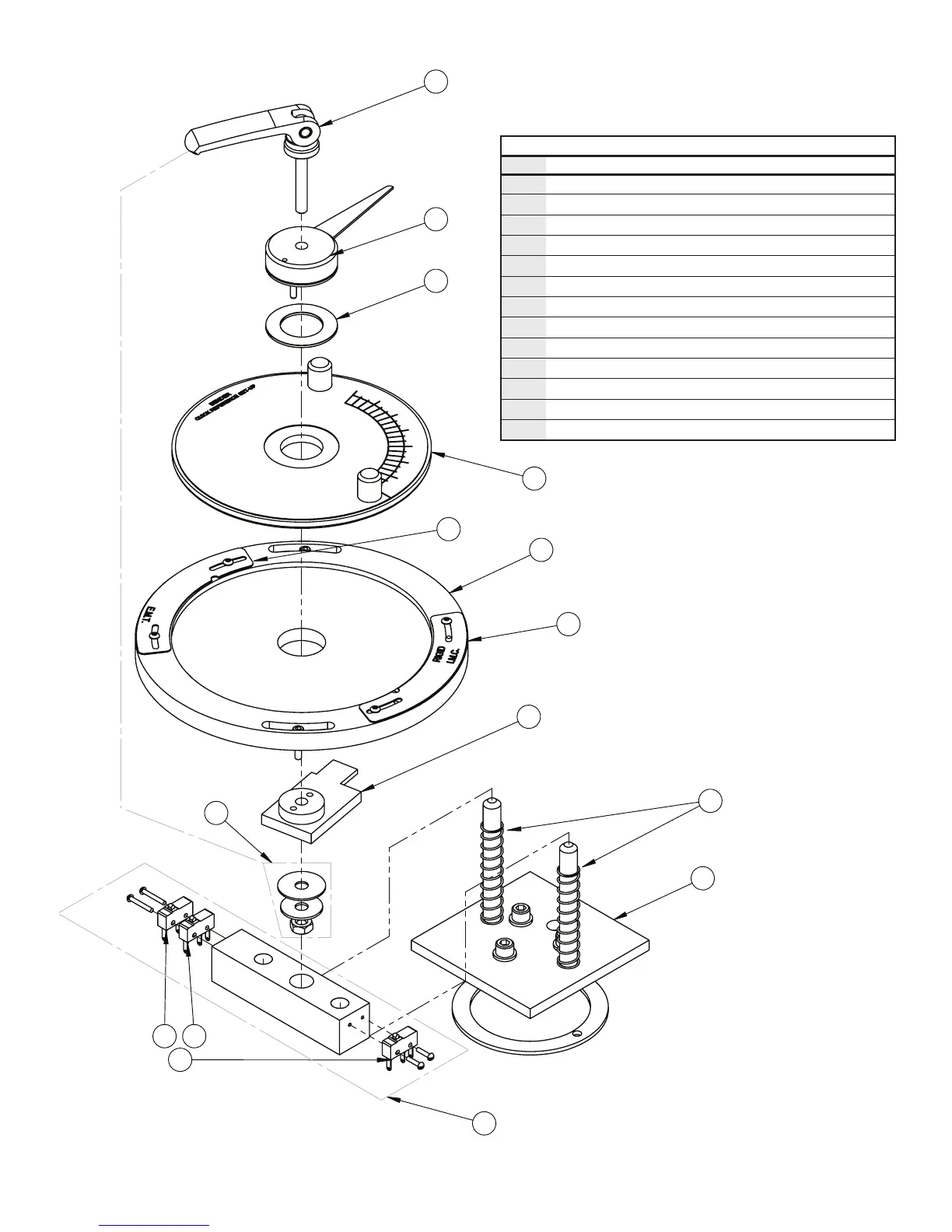

Figure 3
Limit Switch Assembly
Limit Switch Assembly
Item # Part # Description
1 B2000HCK Clamp Kit
ZCM793055N Thread Locker (for #1) not pictured
2 CM802950N Knob Sub Assembly Kit
3 CM767108 Washer
4 CM801950 Upper Plate Assembly
5 B2000-TRK Trip Ring Assembly Kit (Incl. #10 & #11)
6 CM803950N Actuator Kit
7 B2000-LSK Limit Switch Kit
8 DA9687372 Limit Switching (3-Pack)
9 CM797950KW Plate Assembly Kit
10 CM593026 Pipe size decal EMT
11 CM594026 Pipe size decal Rigid/IMC
12 ZCF679220 Springs
