Gardner Bender B2000 Cyclone - 8 Limit Switch Wiring Diagram

20

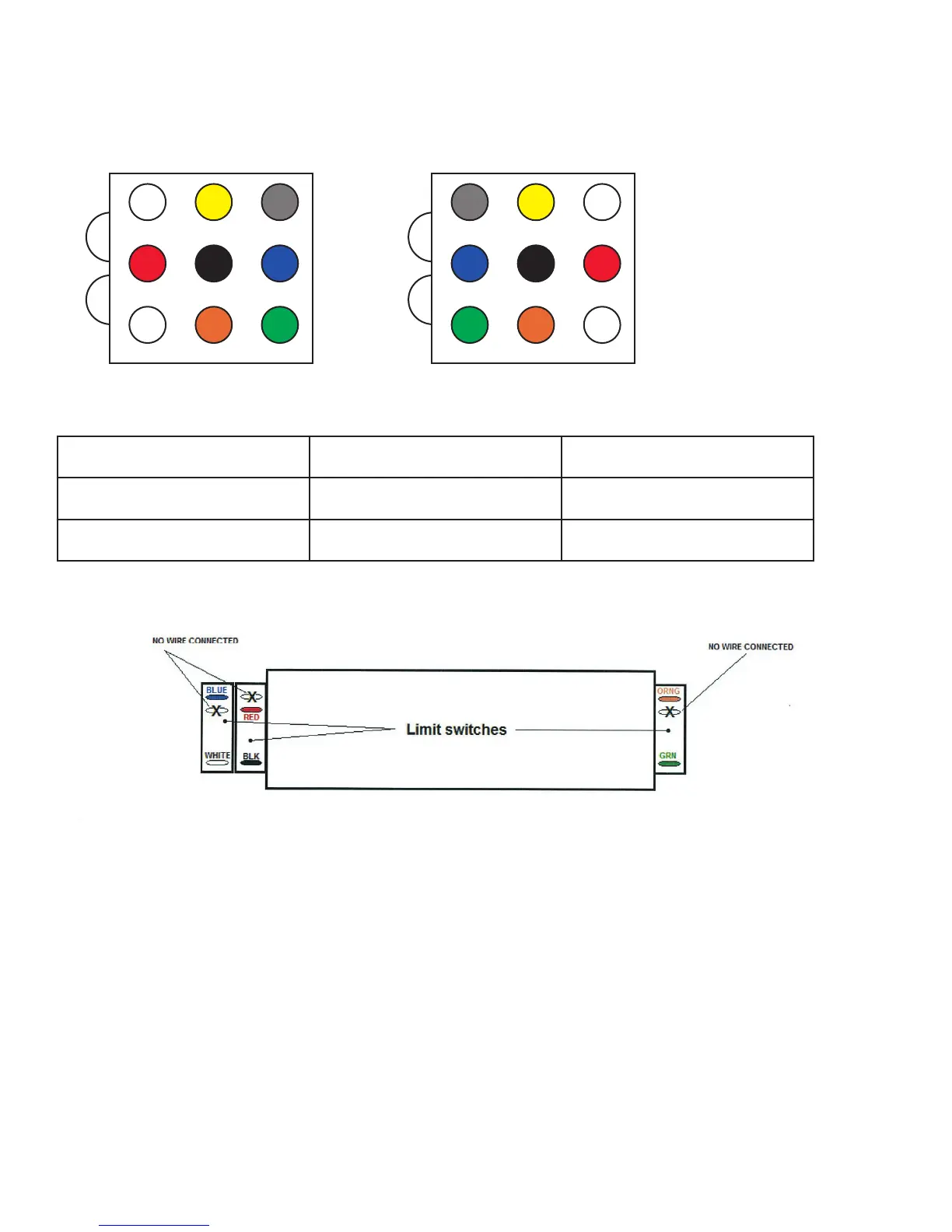

Limit Switch Wiring Diagram:
Rear view
(insert terminals)
Yellow Grey
BlackRed Blue
OrangeWhite Green
x
Front view
(face connects to PC board)
BlackBlue Red
OrangeGreen White
x
YellowGrey
Yellow – from motor Grey – from motor
Red – from zero stop switch Black – from zero stop switch Blue – from return limit switch
White – from return limit switch Orange – from bend limit switch Green – from bend limit switch
