Gardner Bender B2000 Cyclone - Shoe

13

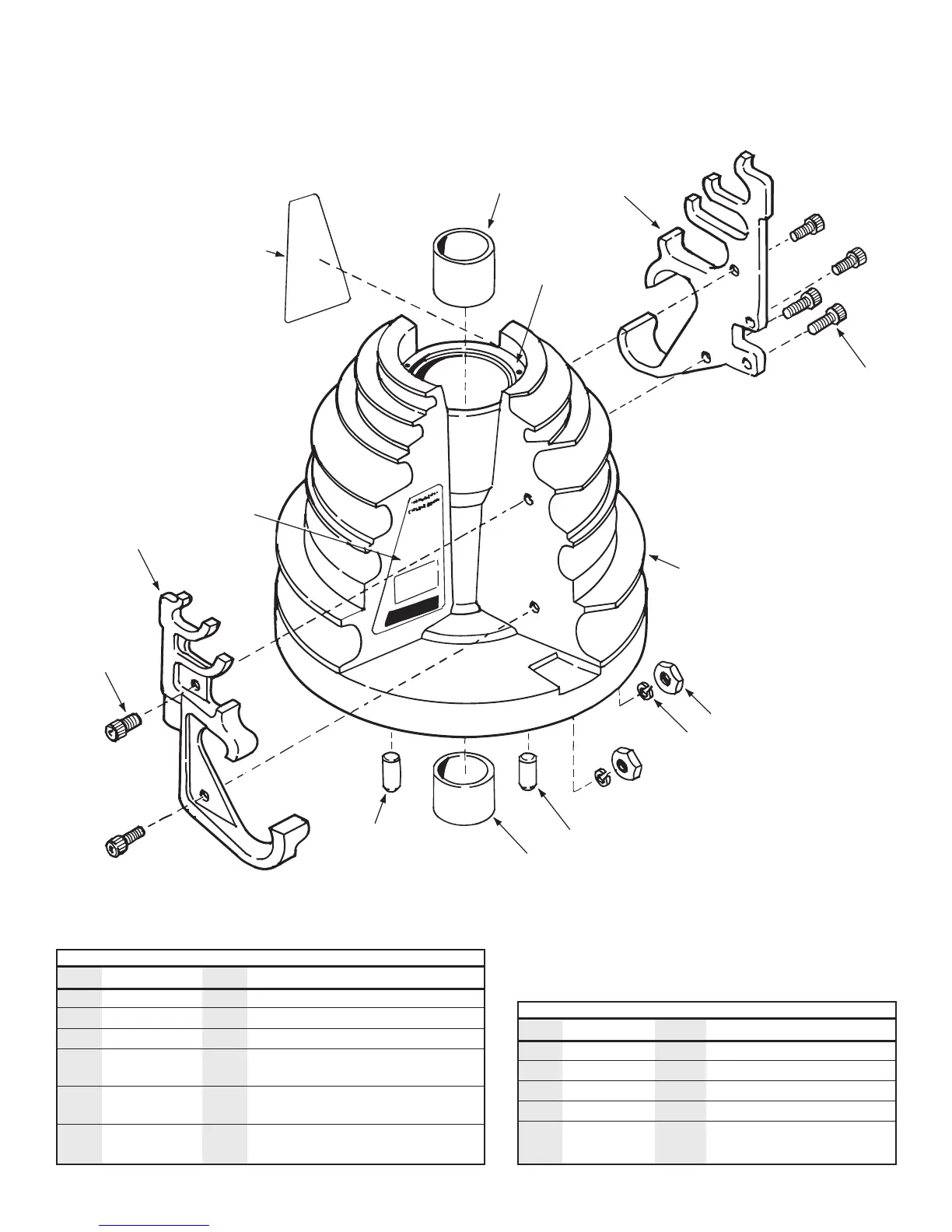

Figure 2
Shoe Subassembly
Shoe Subassembly
Item # Part # # Req’d Description
1 CL199809K 1 Shoe Bending (Incl. items 7, 8, 9 and 10)
2 CN542005 1 Clamp, IMC (Incl. items 4, 5, 6)
3 CN541005 1 Clamp, EMT (Incl. items 4, 5, 6)
4 Common 6
5
⁄8" -18 x 2
1
⁄4" Plain Alloy Socket Head
Replaceable Part Cap Screw
5 Common 6
5
⁄8" Plain Finish Medium Split Lock
Replaceable Part Washer
6 Common 6
5
⁄8" -18 Low Carbon Plain Finish
Replaceable Part Finished Hex Nut
Shoe Subassembly, cont.
Item # Part # # Req’d Description
7 CK691061 2 Pin
8 CL61107 2 Bearing (includes 2)
9 CM126026 1 Instruction Decal - Stub-Up
10 CM127026 1 Instruction Decal - Offset
11 CM627028 2 Insert, Shoe
1
6
5
4
2
11
10
9
3
4
7 7
8
8
GB
