Gardner Bender B2000 Cyclone - Sprocket Housing

17
12
41
19
18
14
17
16
46
13
15
22
23
27
38
47
26
47
2
19
21
48
36
31
33
10
24
1
25
20
29
20
28
30
23
22
40
37
39
11
32
42
43
44
45
35
34

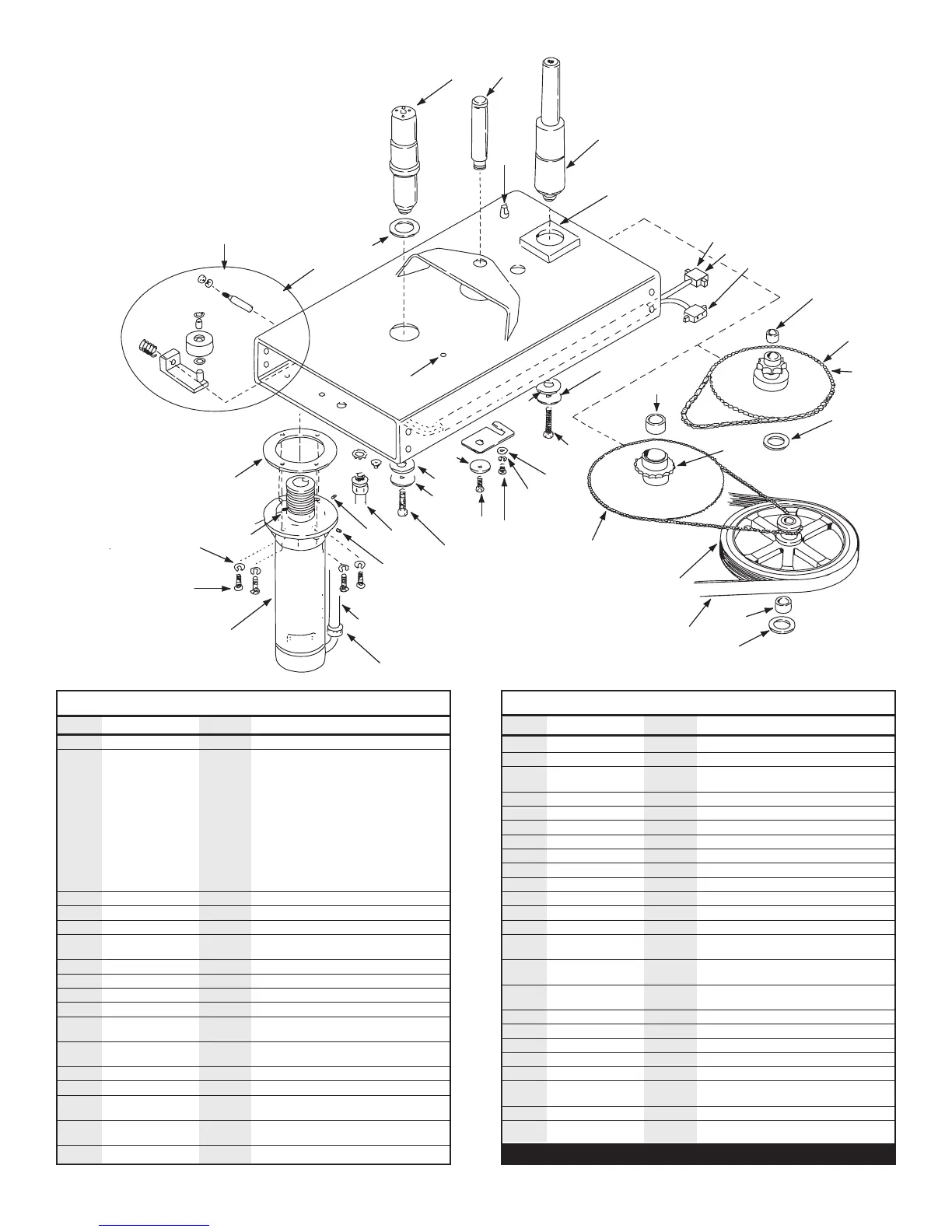

Figure 6
Sprocket Housing
Assembly - DA7058900
Sprocket Housing Assembly - DA7058900, cont.
Item # Part # # Req’d Description
25 CL53107 2 Bearing
26 CL12108 1 Washer
27 Common Repl. 1
3
⁄8" - 16 x 2" Grade 5 Zinc Plated
Part Hex Cap Screw
28 CL334066 1 Chain, .625 Pitch
29 CU542950K 1 Sprocket Assembly w/ Bearings
30 CL670107 2 Bearing
31 CU674104 1 Shaft, Shoe
32 SHM115 1 Housing, Sprocket
33 CL309104 1 Shaft, Sprocket
34 CL667950KW 1 Sprocket Assembly w/ Bearings
35 CL53107 2 Bearing
36 CL224028 1 Stop Screw
37 CL669101 1 Locking Plate
38 Common Repl. 1
5
⁄16" - 24 x
1
⁄2" LG Grade 5 Med.
Part Carbon Stl. Zinc Plated
39 Common Repl. 1
5
⁄16" Zinc Plated USS Flat Washer
Part
40 Common Repl. 1
1
⁄4" Plain Finish USS Flat Washer
Part
41 CL311019 1 Pulley, 10 Groove
42 DA6153006 1 Connector (Body 40) - limit switch
43 CM26006 8 Terminal, Female - limit switch
44 CM33006 1 Connector (M-1) - motor
45 CM28006 2 Terminal, Female - motor
46 Common Repl. 1 #10 -32 x
3
⁄32" LG.
Part
47 CU675108 2 Washer
48 Common Repl. 1 CAP
Part
*These items come with bearings installed.
*
*
Sprocket Housing Assembly - DA7058900
Item # Part # # Req’d Description
1 CL310014 1 Drive Belt
2 CL306900 Includes:
1 Tensioner Assembly
1 Snap Ring
1 Roller
1 Bearing
1 Washer, Thrust
1 Tensioner Weldment
1 Spring
1 Shaft Tensioner
1 Nut, .375-16
10 CL335066 1 Chain, .375 Pitch
11 CW172104 1 Shaft, Roller Housing
12 C550357 1 Gasket, Motor
13 Common Repl. 1 Screw (10-32)
Part
14 CL43259 1 Motor Assembly
15 CL674096 1 Connector
16 CL673228 1 Conduit, Flexible
17 CL675096 1 Connector
18 Common Repl. 4
3
⁄8" - 24 x 1" Grade S Plain Finish
Part Hex Cap Screw
19 Common Repl. 5
3
⁄8” Plain Finish Medium Split
Part Lock Washer
20 CL54108 2 Washer, Thrust
21 CL656108 1 Bearing
22 Common Repl. 2
1
⁄2" - 30 x 3" Grade 5 Plain Finish
Part Hex Cap Screw
23 Common Repl. 4
1
⁄2" Belleville Washer
Part
24 CU541950W 1 Sprocket Assembly w/ Bearings
*
*
