9.0 MAINTENANCE
A troubleshooting aid exists on the printed circuit board mounted to the inside of the operating handle. If all systems are functional, a
white L.E.D. (pictured in Figure 13) will flash once every two seconds while the machine is powered up.
Error codes consist of different light patterns.
1. Blink twice = the motor is over heated.
2. Blink 3 times = limit switch has failed.
3. Blink 4 times = pendant control malfunction.
In addition the L.E.D. will be steady on if the bend or return button is being pressed.
10.0 INTERCHANGEABLE PART COMPATIBILITY
The part descriptions listed in the table below have variations between models of the B2000 and may not be compatible with every
model. Part Numbers listed as “Interchangeable” are compatible with the B2000-8 and have the same Part Number. Part Numbers
listed as “N/A” are not used on that Model. If the part description is not listed in the table below, that part is interchangeable between
all models unless otherwise noted.

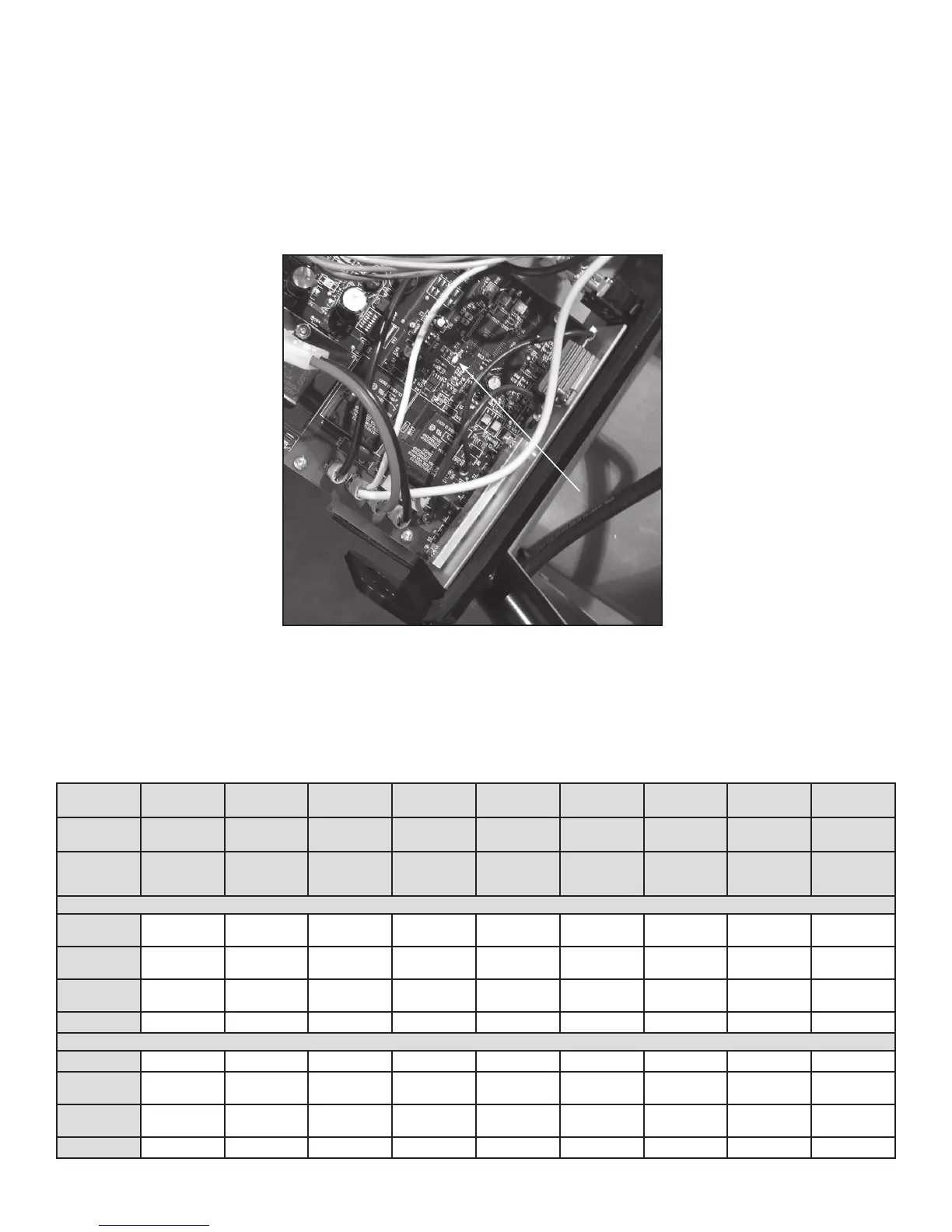

Figure 13. L.E.D. Location
White L.E.D.
Model B2000-8
(CURRENT)
B2000-7 B2000-6 B2000-5 B2000-4 B2000-3 B2000-2 B2000-1 B2000
(ORIGINAL)
Serial Number
Beginning With
N J
K
H F
G
E D C B A
Approximate
Manufacturing
Date
03/2014 07/2007 10/2004 03/2001 07/1997 05/1986 08/1984 01/1983 02/1982
SHOE SUBASSEMBLY
1
Shoe Insert
CM627028 Interchangeable Interchangeable
(CM627028)
N/A N/A N/A N/A N/A N/A
IMC/Rigid Clamp
CN542005 Interchangeable Interchangeable Interchangeable Interchangeable Interchangeable Interchangeable
(CN542005)
CL214005 CL214005
EMT Clamp
CN541005 Interchangeable Interchangeable Interchangeable Interchangeable Interchangeable Interchangeable
(CN541005)
CL215005 CL215005
Washer
N/A N/A N/A N/A N/A N/A N/A N/A B1040108
LIMIT SWITCH SUBASSEMBLY
2
Clamp Kit
B2000HCK B2000-BCK B2000-BCK B2000-BCK B2000-BCK B2000-BCK B2000-BCK B2000-BCK B2000-BCK
Knob Sub
Assembly Kit
CM802950N CM802950 CM802950 CM802950 CM802951 CM802952 CM802953 CM802954 CM802955
Upper Plate
Assembly
CM801950 CM801950KW CM801950KW CM801950KW CM801950KW CM801950KW CM801950KW CM801950KW CM801950KW
Actuator Kit
CM803950N CM803950KW CM803950KW CM803950KW CM803950KW CM803950KW CM803950KW CM803950KW CM803950KW
