Gardner Bender B2000 Cyclone - Upper Roller; Handle

16

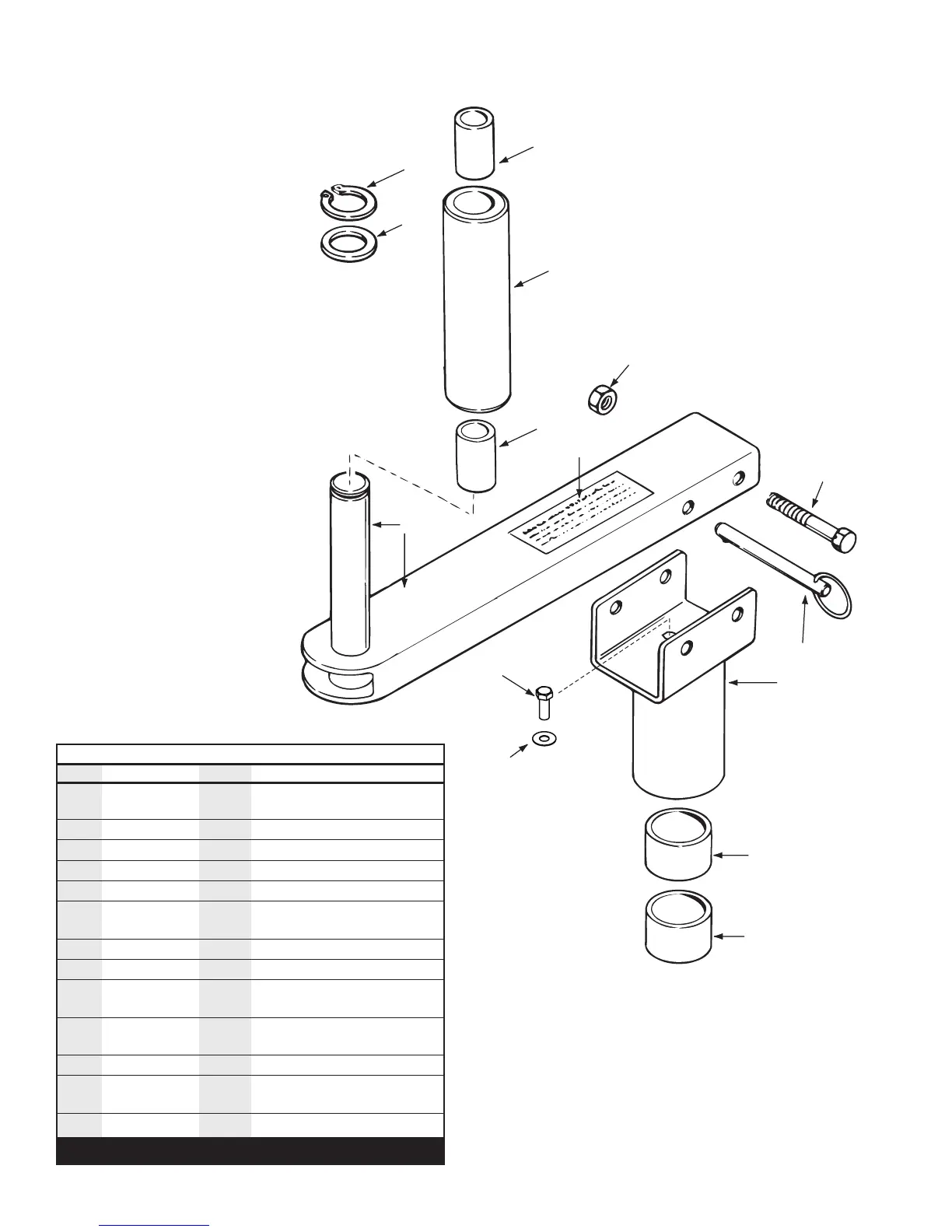

Figure 5
Upper Roller and Handle Assembly – CK994900
4
1
2
3
4
10
9
11
5
6
8
8
7
12
13
Upper Roller and Handle Assembly-CK994900
Item # Part # # Req’d Description
1 Common Repl. 1 1" External Retaining Ring
Part
2 CK569108 1 Washer
3 CK575281K 1
1
⁄2"-1" Roller
4 CK295107 2 Bearing (Set of 2)
5 CL30900 1 Roller Axle Assembly
6 Common Repl. 1
3
⁄8" x 3" Zinc Coherless Hitch Pin
Part
7 CL662950KW 1 Cam Shaft
8 CK693107 2 Bearing (Set of 2)
9 Common Repl. 1
3
⁄8" -16 x 3" A307A Low Carbon
Part Zinc Plated Hex Bolt
10 Common Repl. 1
3
⁄8" - 16" Lock Nut- Nylon
Part
11 Order Kit LK15 1 Decal, Caution
12 Common Repl. 1
3
⁄8" - 16 x 1" 1g. Low Carbon Hex
Part Head Cap Screw, Zinc Plated
13 Common Repl. Part 1
5
⁄16" Zinc Plated USS Flat Washer
*These items come with bearings installed.
*
*
