Gardner Denver AUTOSENTRY EAU99Q - Figure 2-7 - Series Piping; Figure 2-8 - Parallel Piping

13-9-666 Page 21

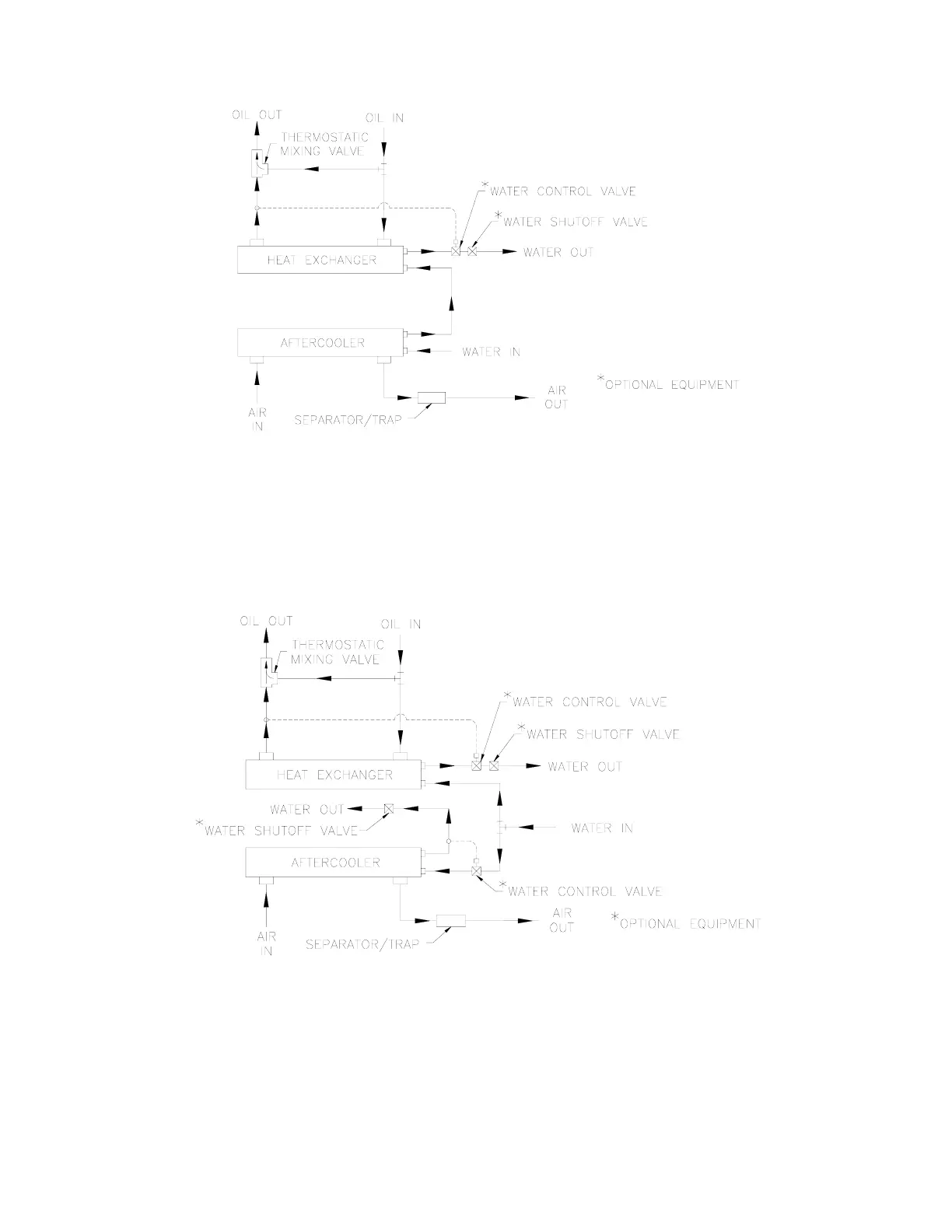

Figure 2-7 – SERIES PIPING
SERIES PIPING (
Figure 2-7) - Water flow must be through aftercooler first for effective cooling of
discharge air and is so piped on the standard water-cooled unit.
Figure 2-8 – PARALLEL PIPING
306EAQ797-
A
(Ref. Drawing)
305EAQ797-
A
(Ref. Drawing)
