Gardner Denver AUTOSENTRY EAU99Q - Figure 4-16 - Wiring Diagram - Full Voltage

75 pages

Save Page as PDF

To Next Page

To Previous Page

13-9-666 Page 44

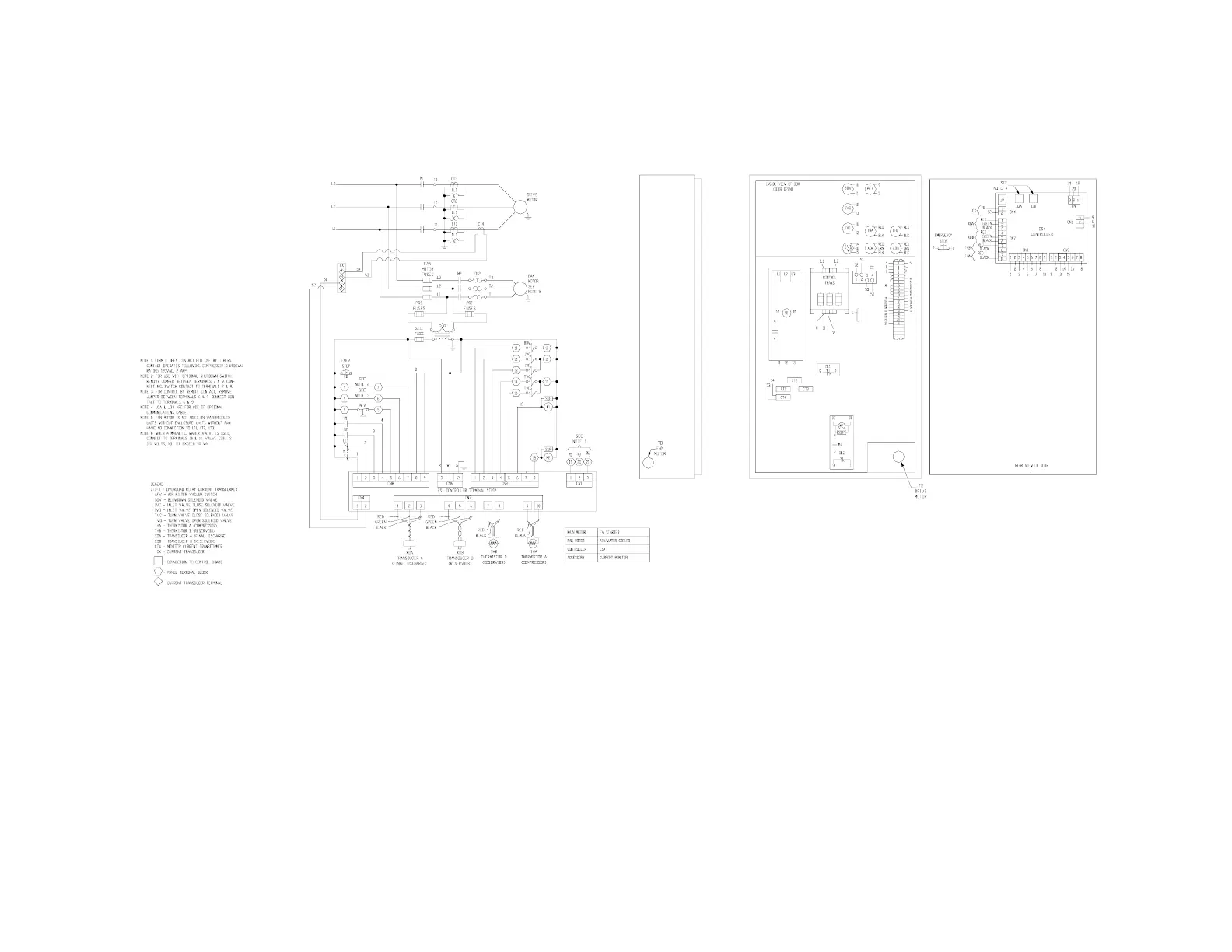

Figure 4-16 – WIRING DIAGRAM – FULL VOLTAGE

EAQ & EAU UNITS ONLY

303EAQ546

(Ref. Drawing)
