Gardner Denver AUTOSENTRY EAU99Q - Figure 4-11 - Control Schematic - Compressor Fully Unloaded - Low Demand Mode Switch off

75 pages

Save Page as PDF

To Next Page

To Previous Page

13-9-666 Page 39

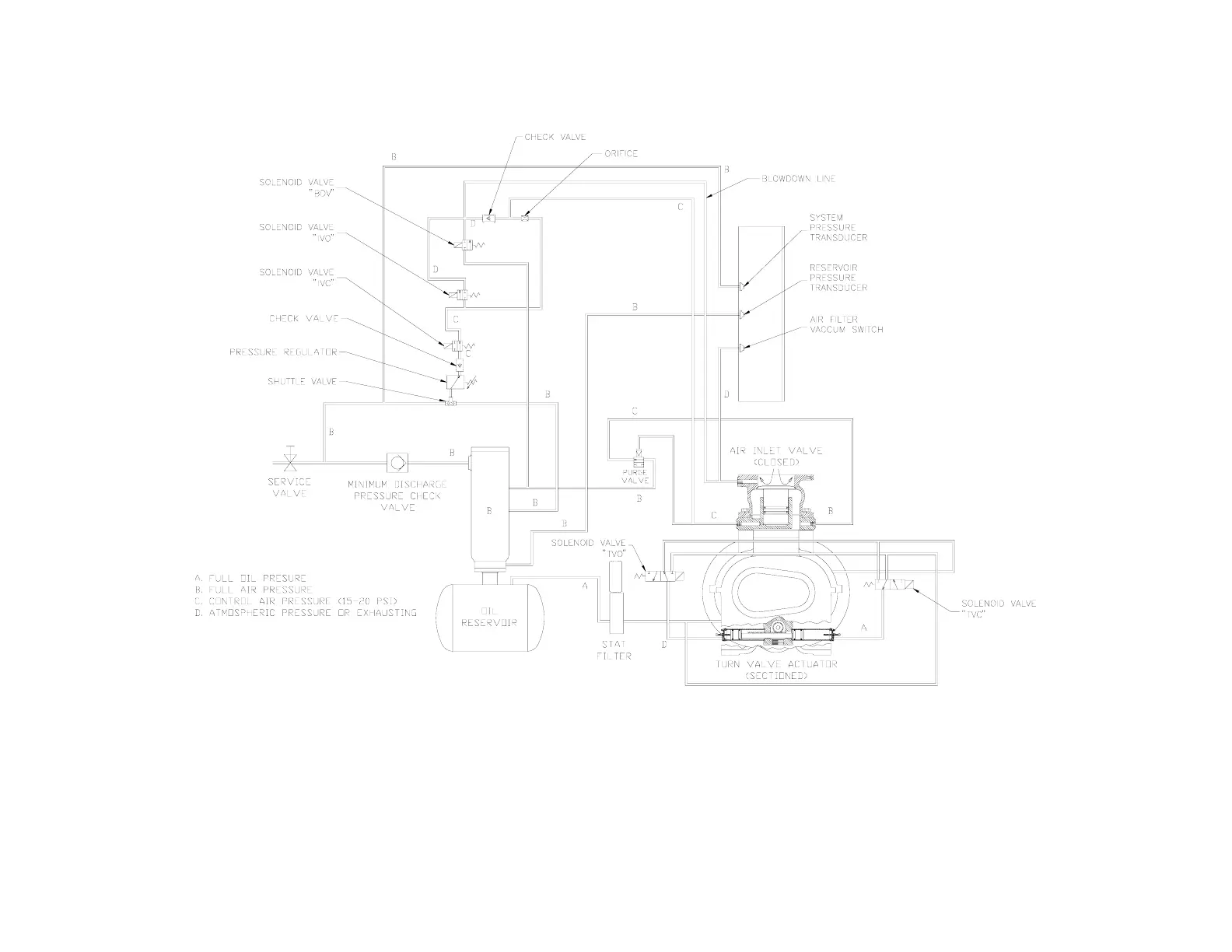

Figure 4-11 – CONTROL SCHEMATIC – COMPRESSOR FULLY UNLOADED – LOW DEMAND MODE SWITCH OFF

EAQ & EAU UNITS ONLY

212EDM797-

(Ref. Drawing)

Main Page
