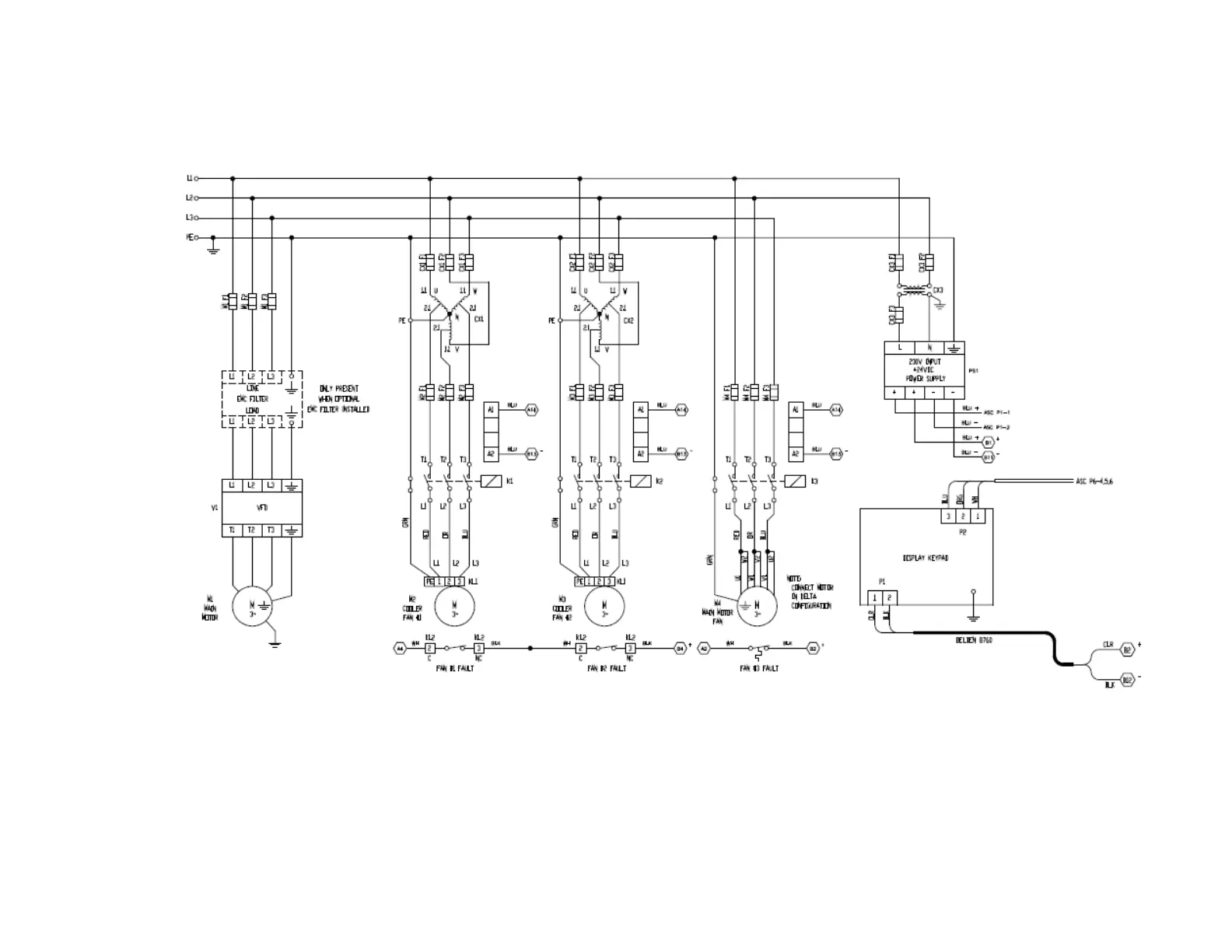

Figure 4- 5 – WIRING DIAGRAM – (AIR COOLED) Single-Stage VS80/110, 575Vac
302CGE546
-
0
5
(Ref. Drawing)
Page 1 of 4
