À
Color legend
Á
Boat
Â
Ping indicator
Ã
Fish
Ä
Bottom
Å
Range

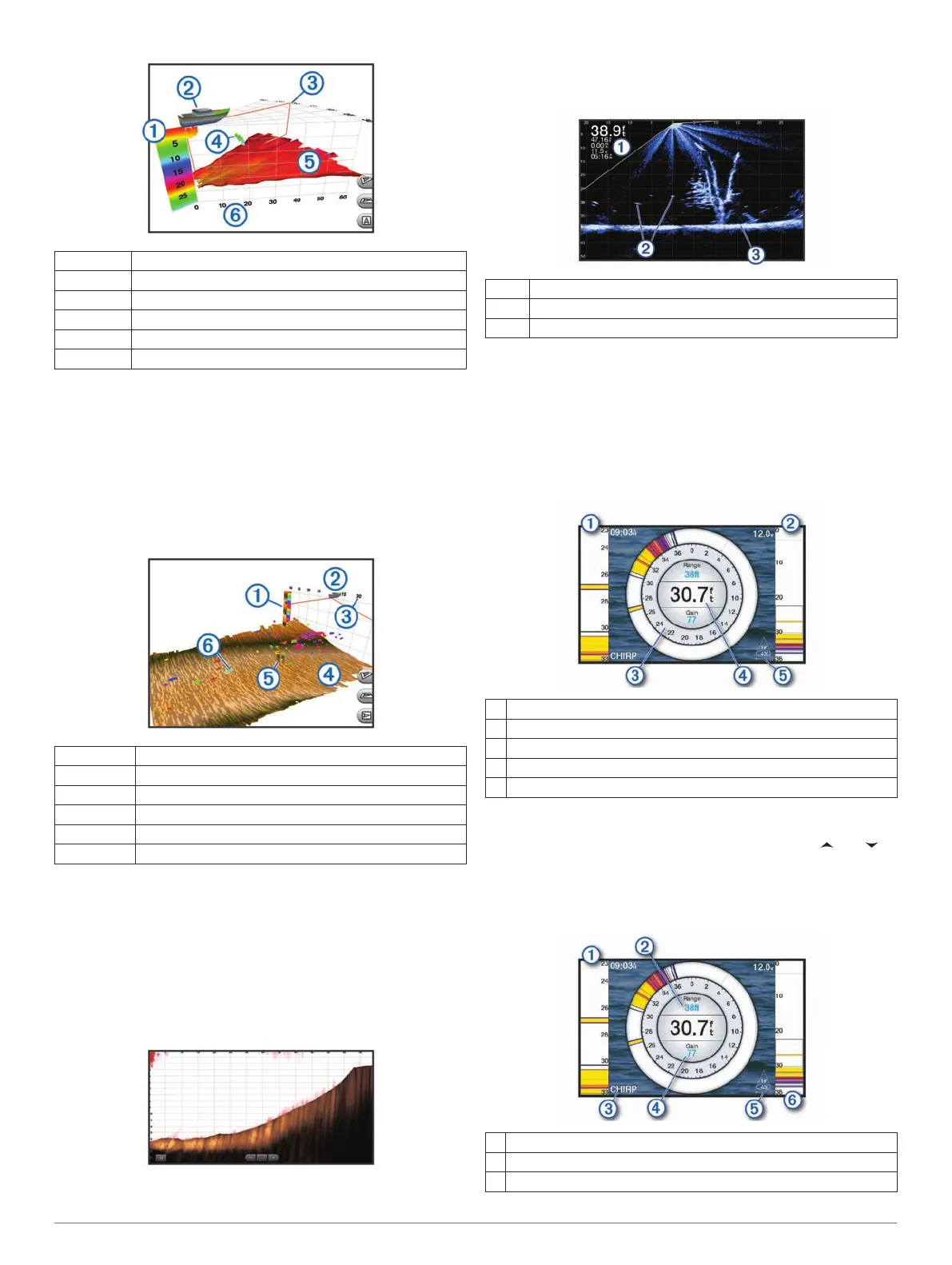

RealVü 3D Down Sonar View
This sonar view shows a three-dimensional view of what is
below the transducer and can be used when you are stationary
and want to see what is around your boat.
RealVü 3D Historical Sonar View
This sonar view provides a three-dimensional view of what is
behind your boat as you are moving and shows the entire water
column in 3D, from the bottom to the top of the water. This view
is used for finding fish.
À
Color legend
Á
Boat
Â
Range
Ã
Bottom
Ä
Structure
Å
Fish
FrontVü
Sonar View
The
Panoptix FrontVü sonar view increases your situational
awareness by showing obstructions under the water, up to
91 meters (300 feet) in front of the boat.
The ability to effectively avoid forward collisions with FrontVü
sonar decreases as your speed rises above 8 knots.
To see the FrontVü sonar view, you must install and connect a
compatible transducer, such as a PS21 transducer. You may
need to update the transducer software.
Panoptix
LiveScope
™
Sonar View
This sonar view shows a live view of what is in front of or below
the boat and can be used to see fish and structures.
À
Depth information
Á
Suspended targets or fish
Â
Bottom of the body of water
Flasher View
The flasher shows sonar information on a circular depth scale,
indicating what is beneath your boat. It is organized as a ring
that starts at the top and progresses clockwise. Depth is
indicated by the scale inside the ring. Sonar information flashes
on the ring when it is received at the depth indicated. The colors
indicate different strengths of the sonar return.
Select Flasher.
À
A-scope, zoomed-in view of the right side view*
Á
A-scope with zoom area outlined**
Â
Depth scale
Ã
Depth at your present location
Ä
Angle and span of the transducer cone at the current frequency
*The A-scopes are not available on ECHOMAP Plus 40 models.
**On the ECHOMAP
Plus 60 models, you can press
and to
move the zoom area up and down.
Flasher Page Shortcuts
On touchscreen devices, you can interact with the flasher and a-
scopes.
À
Drag up and down to move the zoom area.
Á
Select to adjust the range.
Â
Select to adjust the frequency.
20 Sonar Fishfinder
