Introduction
WARNING
See the
Important Safety and Product Information guide in the
product box for product warnings and other important
information.

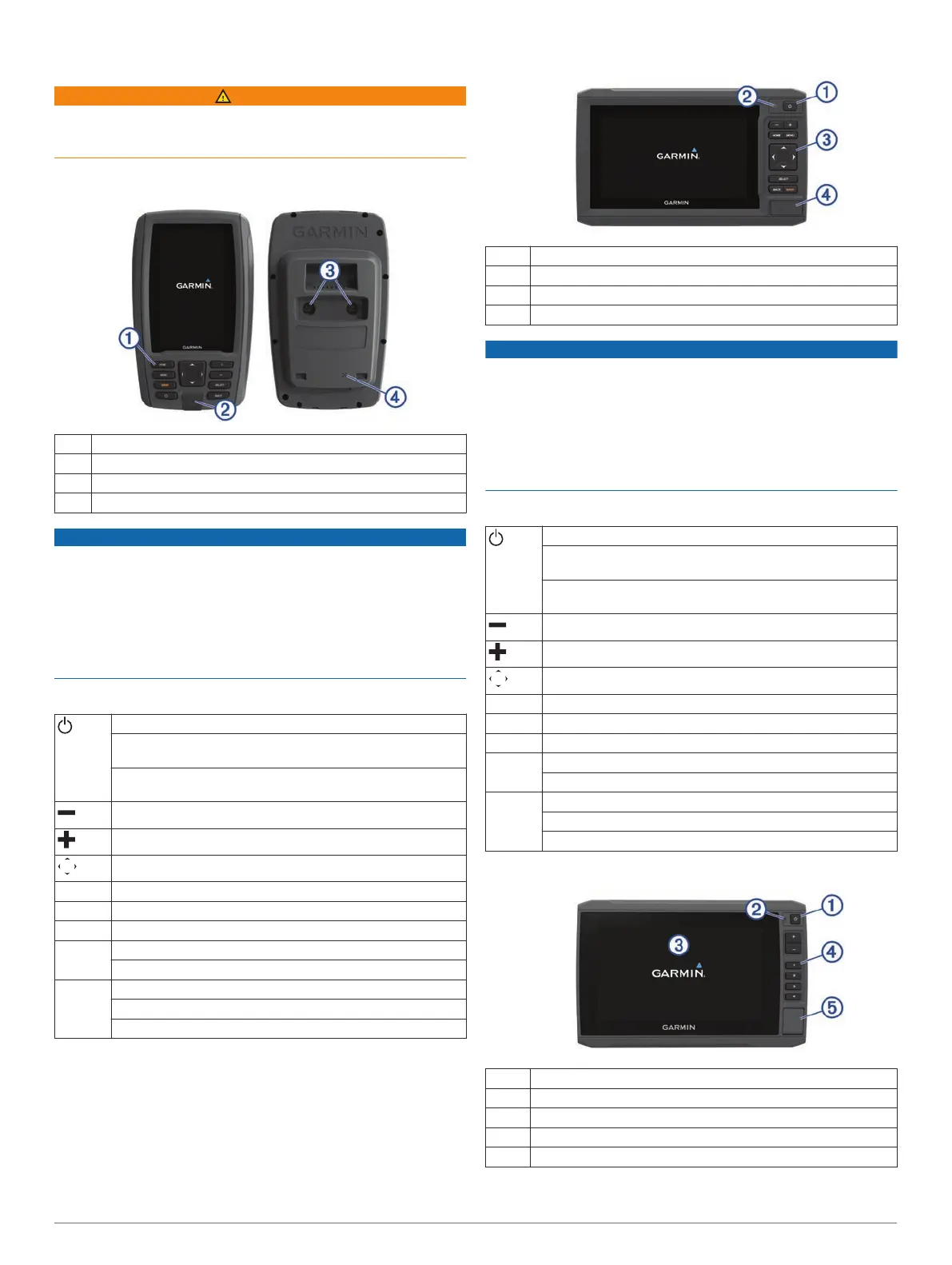

ECHOMAP Plus 40 Device View
À
Device keys
Á
microSD
®
memory card slot
Â
Power and transducer connectors
Ã
Beeper
NOTICE
Each time you place the device in the bracket, you should make
sure the device is firmly secured in the cradle, the cables are
fully pushed into the device and cradle, and the locking bracket
is snapped firmly closed. There is an audible click when the
device or locking bracket is installed correctly. If the cables are
not fully seated and the device is not firmly secured, it can lose
power or stop working. The device can also fall out of the cradle
and become damaged if it is not firmly secured.
Device Keys
Turns on and off the device when held.
Opens a shortcut menu to backlight, color mode, and sonar
transmission when quickly pressed and released.
Scrolls through the brightness levels when pressed
repeatedly.
Zooms out of a chart or view.
Zooms in to a chart or view.
Scrolls, highlights options, and moves the cursor.
SELECT Acknowledges messages and selects options.
BACK Returns to the previous screen.
MARK Saves the present location as a waypoint.
HOME Returns to the Home screen.
Takes a screenshot when held.
MENU Opens a menu of options for the page, when applicable.
Closes a menu, when applicable.
Takes a screenshot when held.
ECHOMAP
Plus 60 Front View
À
Power key
Á
Automatic backlight sensor
Â
Keys
Ã
microSD
memory card slot
NOTICE
Each time you place the device in the cradle, you should make
sure the device is firmly secured in the cradle, the cables are
fully pushed into the device and cradle, and the locking bracket
is snapped firmly closed. There is an audible click when the
locking bracket is installed correctly. If the cables are not fully
seated and the device is not firmly secured, it can lose power or
stop working. The device can also fall out of the cradle and
become damaged if it is not firmly secured.
Device Keys
Turns on and off the device when held.
Opens a shortcut menu to backlight, color mode, and sonar
transmission when quickly pressed and released.
Scrolls through the brightness levels when pressed
repeatedly.
Zooms out of a chart or view.
Zooms in to a chart or view.
Scrolls, highlights options, and moves the cursor.
SELECT Acknowledges messages and selects options.
BACK Returns to the previous screen.
MARK Saves the present location as a waypoint.
HOME Returns to the Home screen.
Takes a screenshot when held.
MENU Opens a menu of options for the page, when applicable.
Closes a menu, when applicable.
Takes a screenshot when held.
ECHOMAP
Plus 70/90 Front View
À
Power key
Á
Automatic backlight sensor
Â
Touchscreen
Ã
Shortcut keys
Ä
microSD
memory card slot
Introduction 1
