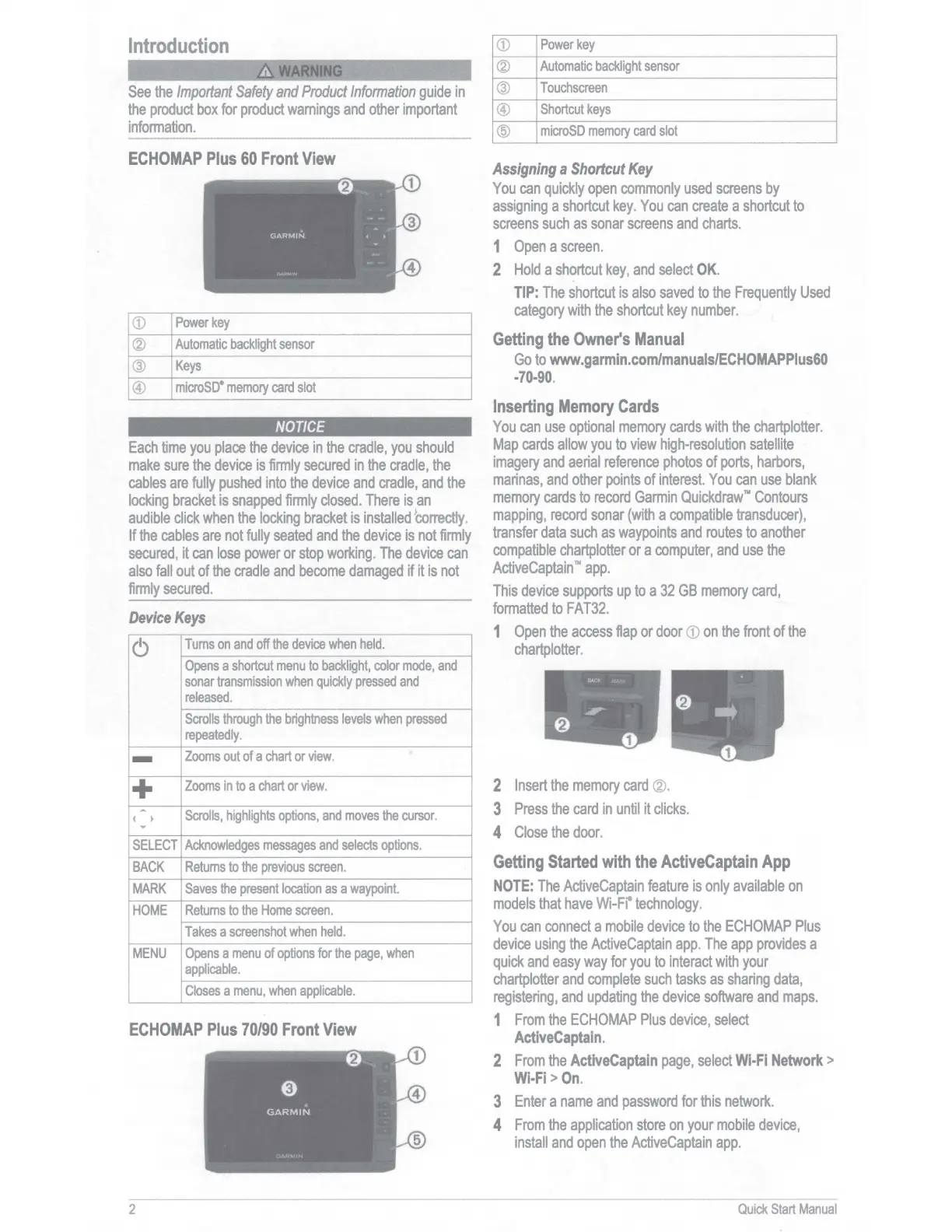

Introduction
See the Important Safety and Product Information guide in
the product box for product warnings and other important
information.
ECHOMAP Plus 60 Front View
<D
Power key
®
Automatic backlight sensor
®
Keys
©
microso• memory card slot
NOTICE
Each time you place the device in the cradle, you should
make sure the device is firmly secured in the cradle, the
cables are fully pushed into the device and cradle, and the
locking bracket is snapped firmly closed. There is an
audible click when the locking bracket is installed borrectly.
If the cables are not fully seated and the device is not firmly
secured, it can lose power or stop working. The device can
also fall out of the cradle and become damaged if it is not
firmly secured.
Device Keys
C)
Tums on and off the device when held.
Opens a shortcut menu to backlight, color mode, and
sonar transmission when quickly pressed and
released.
Scrolls through the brightness levels when pressed
repeatedly.
-
Zooms out of a chart or view.
+
Zooms in to a chart or view.
-
Scrolls, highlights options, and moves the cursor.
•
►
-
SELECT Acknowledges messages and selects options.
BACK
Returns to the previous screen.
MARK
Saves the present location as a waypoint.
HOME
Returns to the Home screen.
Takes a screenshot when held.
MENU
Opens a menu of options for the page, when
applicable.
Closes a menu, when applicable.
ECHOMAP Plus 70/90 Front View
2
<D
Power key
®
Automatic backlight sensor
®
Touchscreen
©
Shortcut keys
®
microSD memory card slot
Assigning a Shortcut Key
You can quickly open commonly used screens by
assigning a shortcut key. You can create a shortcut to
screens such as sonar screens and charts.
1 Open a screen.
2 Hold a shortcut key, and select OK.
TIP: The shortcut is also saved to the Frequently Used
category with the shortcut key number.
Getting the Owner's Manual
Go to www.garmin.com1manuals/ECHOMAPP1us60
-70-90 .
Inserting Memory Cards
You can use optional memory cards with the chartplotter.
Map cards allow you to view high-resolution satellite
imagery and aerial reference photos of ports, harbors,
marinas, and other points of interest. You can use blank
memory cards to record Garmin Quickdraw'" Contours
mapping, record sonar (with a compatible transducer),
transfer data such as waypoints and routes to another
compatible chartplotter or a computer, and use the
ActiveCaptain'" app.
This device supports up to a 32 GB memory card,
formatted to FAT32.
1 Open the access flap or door <D on the front of the
chartplotter.
2 Insert the memory card ®·
3 Press the card in until it clicks.
4 Close the door.
Getting Started with the ActiveCaptain App
NOTE: The ActiveCaptain feature is only available on
models that have Wi-Fi' technology.
You can connect a mobile device to the ECHOMAP Plus
device using the ActiveCaptain app. The app provides a
quick and easy way for you to interact with your
chartplotter and complete such tasks as sharing data,
registering, and updating the device software and maps.
1 From the ECHOMAP Plus device, select
ActiveCaptain.
2 From the ActiveCaptain page, select Wi-Fi Network>
Wi-Fi > On .
3 Enter a name and password for this network.
4 From the application store on your mobile device,
install and open the ActiveCaptain app.
Quick Start Manual
