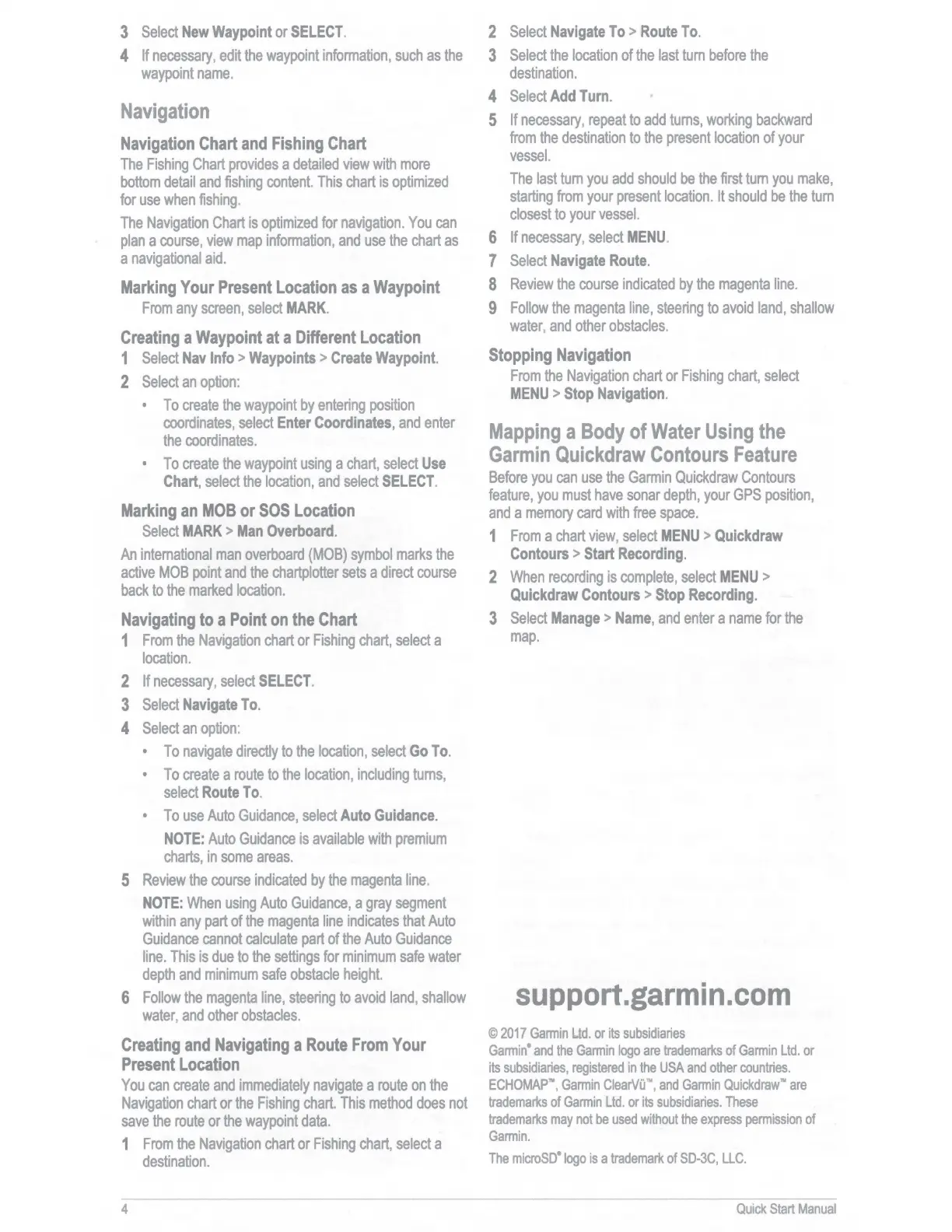

3
Select
New
Waypoint
or
SELECT.
4
If
necessary,
edit
the
waypoint
information,
such
as
the
waypoint
name.
Navigation
Navigation
Chart
and
Fishing
Chart
The
Fishing
Chart
provides
a
detailed
view
with
more
bottom
detail
and
fishing
content.
This
chart
is
optimized
for
use
when
fishing.
The
Navigation
Chart
is
optimized
for
navigation.
You
can
plan
a
course,
view
map
information,
and
use
the
chart
as
a
navigational
aid.
Marking
Your
Present
Location
as
a
Waypoint
From
any
screen,
select
MARK.
Creating
a
Waypoint
at
a
Different
Location
1
Select
Nav
Info
>
Waypoints
>
Create
Waypoint.
2
Select
an
option:
To
create
the
waypoint
by
entering
position
coordinates,
select
Enter
Coordinates,
and
enter
the
coordinates.
To
create
the
waypoint
using
a
chart,
select
Use
Chart,
select
the
location,
and
select
SELECT
.
Marking
an
MOB
or
SOS
Location
Select
MARK
>
Man
Overboard.
An
international
man
overboard
(MOB)
symbol
marks
the
active
MOB
point
and
the
chartplotter
sets
a
direct
course
back
to
the
marked
location.
Navigating
to
a
Point
on
the
Chart
1
From
the
Navigation
chart
or
Fishing
chart,
select
a
location.
2
If
necessary,
select
SELECT.
3
Select
Navigate
To.
4
Select
an
option:
To
navigate
directly
to
the
location,
select
Go
To.
To
create
a
route
to
the
location,
including
turns,
select
Route
To.
To
use
Auto
Guidance,
select
Auto
Guidance.
NOTE:
Auto
Guidance
is
available
with
premium
charts,
in
some
areas.
5
Review
the
course
indicated
by
the
magenta
line
.
NOTE:
When
using
Auto
Guidance,
a
gray
segment
within
any
part
of
the
magenta
line
indicates
that
Auto
Guidance
cannot
calculate
part
of
the
Auto
Guidance
line.
This
is
due
to
the
settings
for
minimum
safe
water
depth
and
minimum
safe
obstacle
height.
6
Follow
the
magenta
line,
steering
to
avoid
land,
shallow
water
,
and
other
obstacles.
Creating
and
Navigating
a
Route
From
Your
Present
Location
You
can
create
and
immediately
navigate
a
route
on
the
Navigation
chart
or
the
Fishing
chart.
This
method
does
not
save
the
route
or
the
waypoint
data.
1
From
the
Navigation
chart
or
Fishing
chart,
select
a
destination.
4
2
Select
Navigate
To>
Route
To.
3
Select
the
location
of
the
last
tum
before
the
destination.
4
Select
Add
Tum.
5
If
necessary,
repeat
to
add
turns,
working
backward
from
the
destination
to
the
present
location
of
your
vessel.
The
last
tum
you
add
should
be
the
first
tum
you
make,
starting
from
your
present
location.
It
should
be
the
tum
closest
to
your
vessel.
6
If
necessary,
select
MENU
.
7
Select
Navigate
Route.
8
Review
the
course
indicated
by
the
magenta
line.
9
Follow
the
magenta
line,
steering
to
avoid
land,
shallow
water
,
and
other
obstacles.
Stopping
Navigation
From
the
Navigation
chart
or
Fishing
chart,
select
MENU
>
Stop
Navigation.
Mapping
a
Body
of
Water
Using
the
Garmin
Quickdraw
Contours
Feature
Before
you
can
use
the
Garmin
Quickdraw
Contours
feature,
you
must
have
sonar
depth,
your
GPS
position,
and
a
memory
card
with
free
space.
1
From
a
chart
view,
select
MENU
>
Quickdraw
Contours
>
Start
Recording.
2
When
recording
is
complete,
select
MENU
>
Quickdraw
Contours
>
Stop
Recording.
3
Select
Manage
>
Name,
and
enter
a
name
for
the
map.
support.garmin.com
©
2017
Garmin
Ud.
or
its
subsidiaries
Garmin"
and
the
Garmin
logo
are
trademarks
of
Garmin
Ltd.
or
its
subsidiaries,
registered
in
the
USA
and
other
countries.
ECHOMAP"'
,
Garmin
ClearVii"'
,
and
Garmin
Quickdraw"'
are
trademarks
of
Garmin
Ltd.
or
its
subsidiaries.
These
trademarks
may
not
be
used
without
the
express
permission
of
Garmin.
The
microSD"
logo
is
a
trademark
of
SD-3C,
LLC.
Quick
Start
Manual
