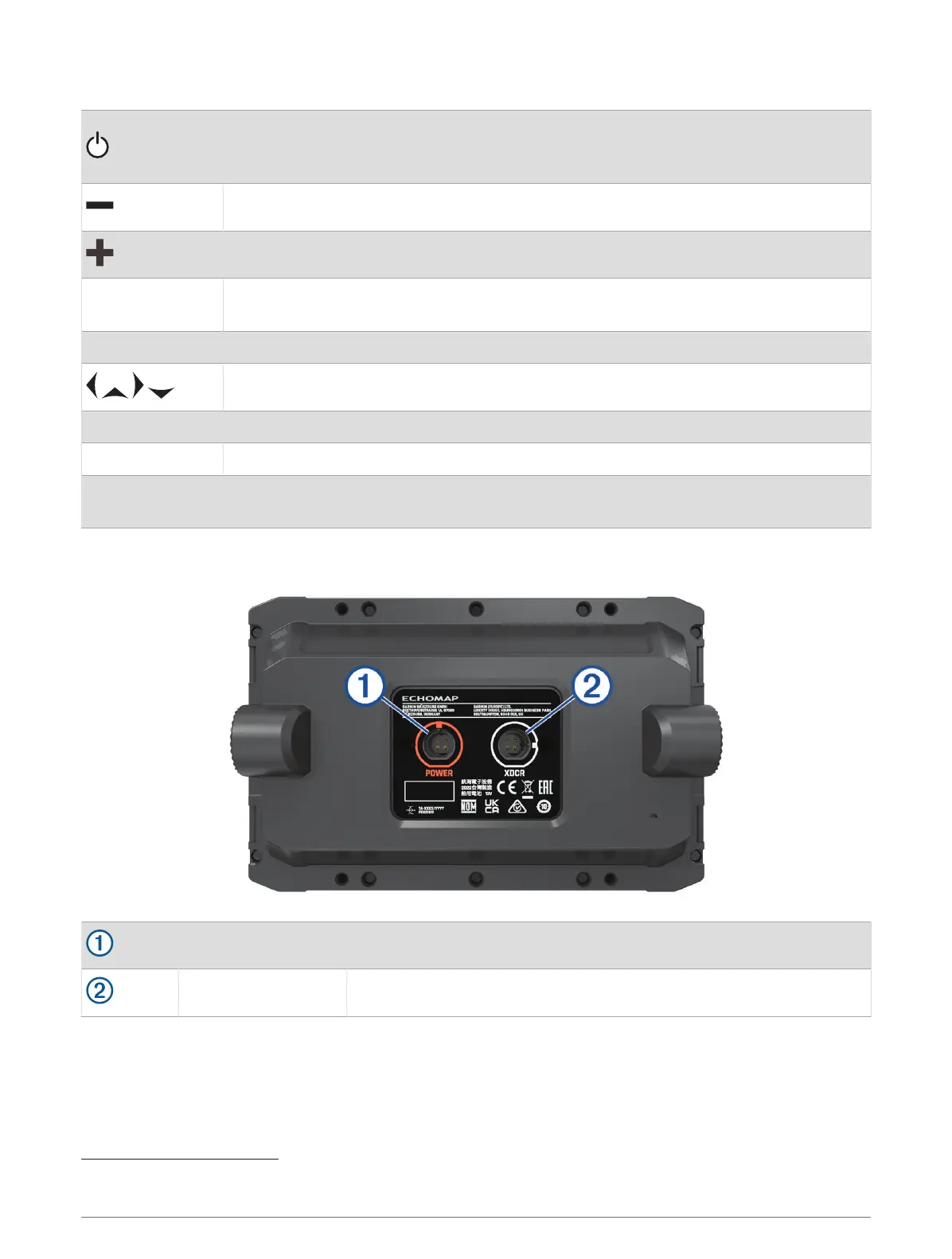

Device Keys
Turns on and off the device when held.
Opens a shortcut menu when quickly pressed and released.
Scrolls through the brightness levels when pressed repeatedly.
Zooms out.
Zooms in.
HOME
Opens the Home screen.
Takes a screenshot when held
1
MENU Opens a menu of options for the page, when applicable.
Scrolls, highlights options, and moves the cursor.
SELECT Selects the highlighted option.
BACK Returns to the previous screen.
MARK
Saves the present location as a waypoint.
Marks a MOB (Man Overboard) location when held.
Connector View
POWER Power cable port
XDCR 4-pin transducer cable port
1
This feature requires a microSD memory card (Inserting Memory Cards, page 4).
2 Introduction
