190-00962-02 Rev A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
103
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
SELECTING THE RADIO TO BE TUNED
Press the small NAVKnobtotransferthefrequencytuningboxandFrequencyTransferArrowbetweenthe
upper and lower radio frequency fields.

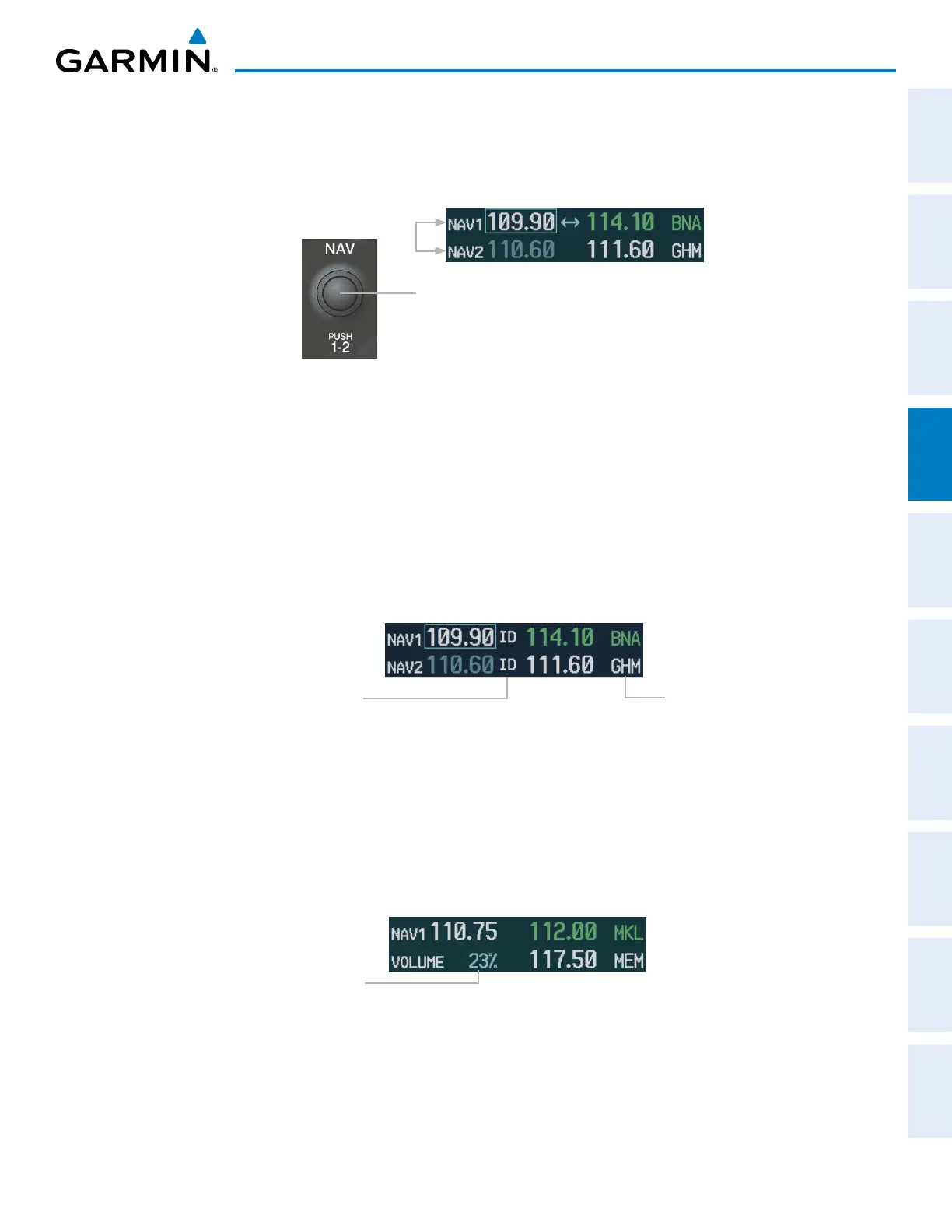

Figure 4-20 Switching NAV Tuning Boxes
Press the
NAV
Knob to
Switch the Tuning Box From
One NAV Radio to the Other
VOR/LOC ID
When the MorsecodeIdentieraudioisonforaNAVradio,awhiteIDappearstotheleftoftheactive
NAV frequency.
Intheexampleshown,inordertolistentoeitherstationidentier,presstheNAV1 or NAV2 Key on the
Audio Panel. Pressing the VOL/ID Knob turns off the Morse code audio only in the radio with the NAV
TuningBox.ToturnoffbothNAVIDs,transfertheNAVTuningBoxbetweenNAV1andNAV2withthesmall
NAV Knob and press the VOL/ID Knob again to turn the Morse code off in the other radio.
Figure 4-21 NAV Radio ID Indication
The Morse Code Identifier
for the GHM VOR is On
Station
Identifier
VOLUME
NAVRadio volume levelcanbe adjusted from0to100%using the
VOL/ID
Knob. Turning the knob
clockwise increases volume, counterclockwise decreases volume.
When adjusting, the level is displayed in place of the standby frequencies. Volume level indication remains
for two seconds after the change.
Figure 4-22 NAV Volume Levels
NAV Volume
Level Remains
for Two Seconds
To Next Page
