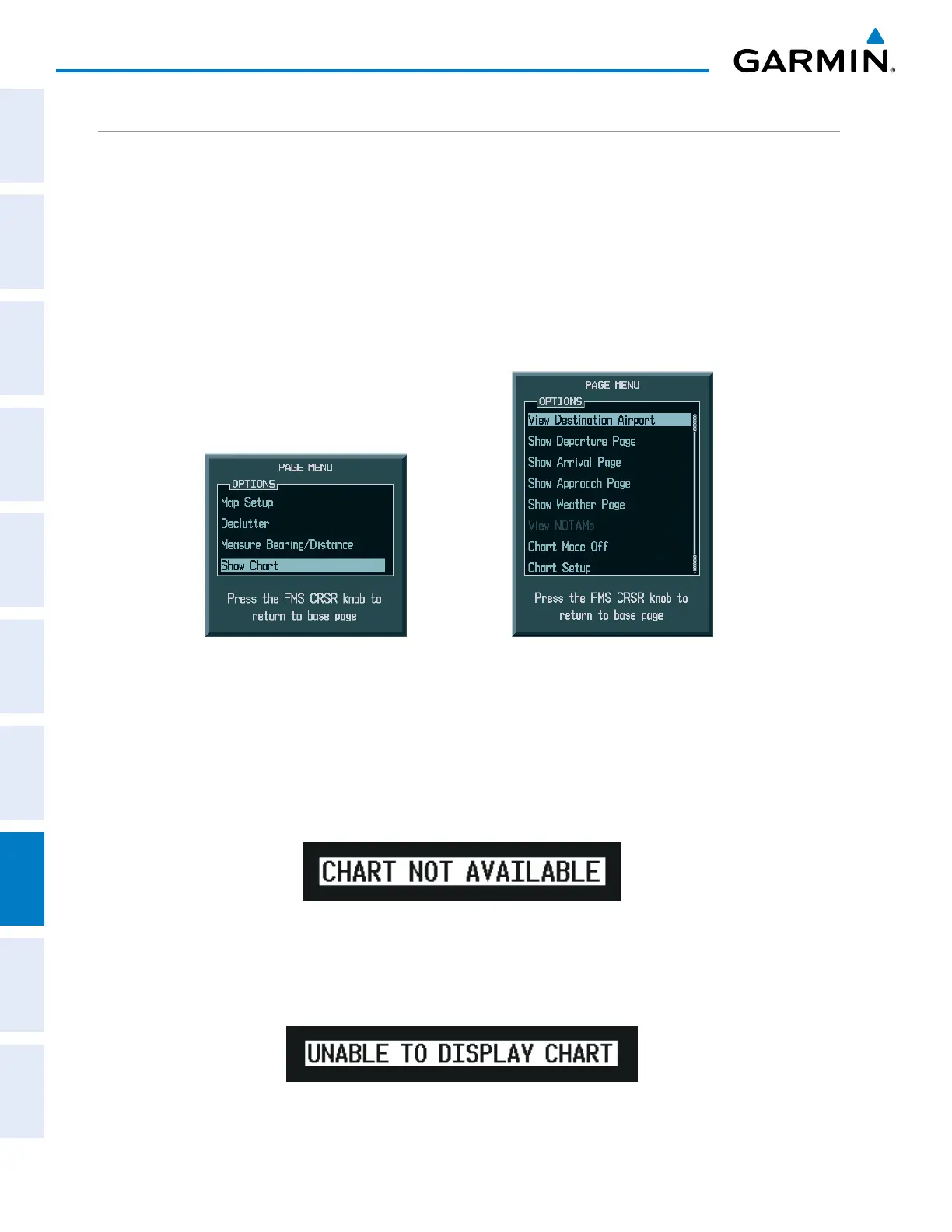

TERMINAL PROCEDURES CHARTS

Selecting Terminal Procedures Charts:

While viewing the Navigation Map Page, Nearest Airport Page, or Flight Plan Page, press the SHW CHRT

Softkey.

Or:

1) Press the MENU Key to display the PAGE MENU.

2) Turn the large FMS Knob to scroll through the OPTIONS Menu to Show Chart.

3) Press the ENT Key to display the chart.

Navigation Map Page OPTIONS Menu Waypoint Airport Information Page OPTIONS Menu

Figure 8-22 Option Menus

Whenno terminal procedurechart is available for thenearestairport orthe selected airport, the banner

CHARTNOT AVAILABLE appears on the screen.  The CHART NOT AVAILABLE banner does not refer to

theJeppesensubscription,butrathertheavailabilityofaparticularairportchartselectionorprocedurefora

selected airport.

Figure 8-23 Chart Not Available Banner

Ifthereisaprobleminrenderingthedata(suchasadataerrororafailureofanindividualchart),thebanner

UNABLETODISPLAYCHARTisthendisplayed.

Figure 8-24 Unable To Display Chart Banner
