DISPLAYING TRAFFIC DATA
TheMap-TrafcMapPageistheprincipalpageforviewingtrafcinformation.Additionaldisplaysoftrafc
informationareavailableasmapoverlayswhileTISisoperating,andserveasadditionalreferencetotheTrafc
MapPage.Trafcinformationcanbedisplayedonthefollowingmapsandpages:
•PFDInsetMap
•NavigationMapPage
•TrafcMapPage
•TripPlanningPage
•NearestPages
•ActiveFlightPlanPage
•AUX-VideoPage
Displaying traffic information (maps other than the Traffic Map Page):
1) Press the MAP Softkey.
2) Press the TRAFFIC Softkey.
WhentrafcisselectedonmapsotherthantheTrafcMapPage,aniconisshowntoindicatethefeatureis
enabled for display.

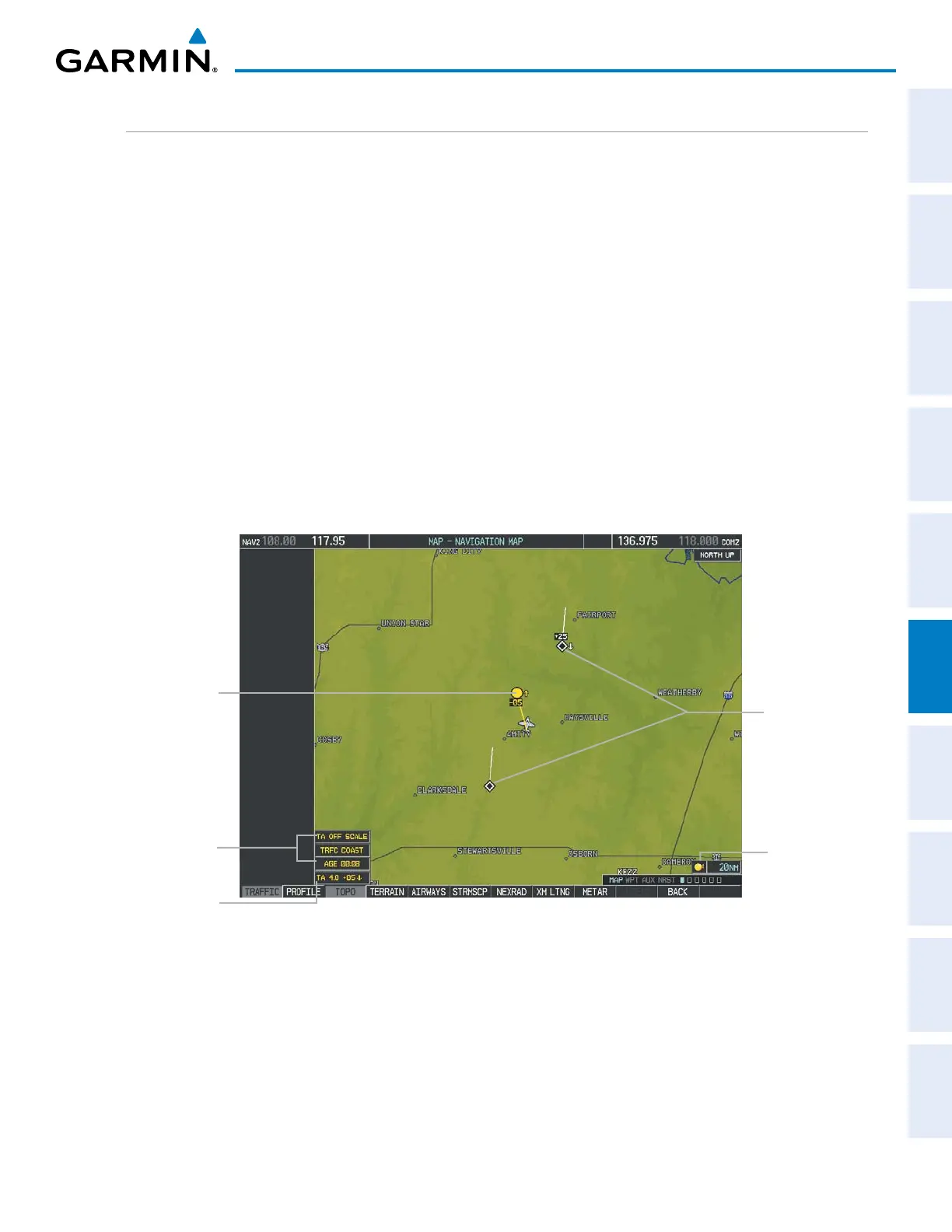

Figure 6-158 TIS Traffic on the Navigation Map Page
Traffic Advisory
Traffic Status
Banners
Traffic Display
Enabled
Non-Threat
Traffic
Non-Bearing
Traffic
Advisory
Displaying traffic information (PFD Inset Map):
1) Press the INSET Softkey.
2) Press the TRAFFIC Softkey to display traffic data on the inset map (TRFC-1).
3) Press the softkey again to display the traffic-only inset (TRFC-2).
