NOTE: When panning or reviewing active flight plan legs in a non-North Up orientation, the map does not
show the map orientation nor the wind direction and speed.
NOTE: Map orientation can only be changed on the Navigation Map Page. Any other displays that show
navigation data reflect the orientation selected for the Navigation Map Page.
Changing the Navigation Map orientation:
1) With the Navigation Map Page displayed, press the MENU Key. The cursor flashes on the ‘Map Setup’ option.

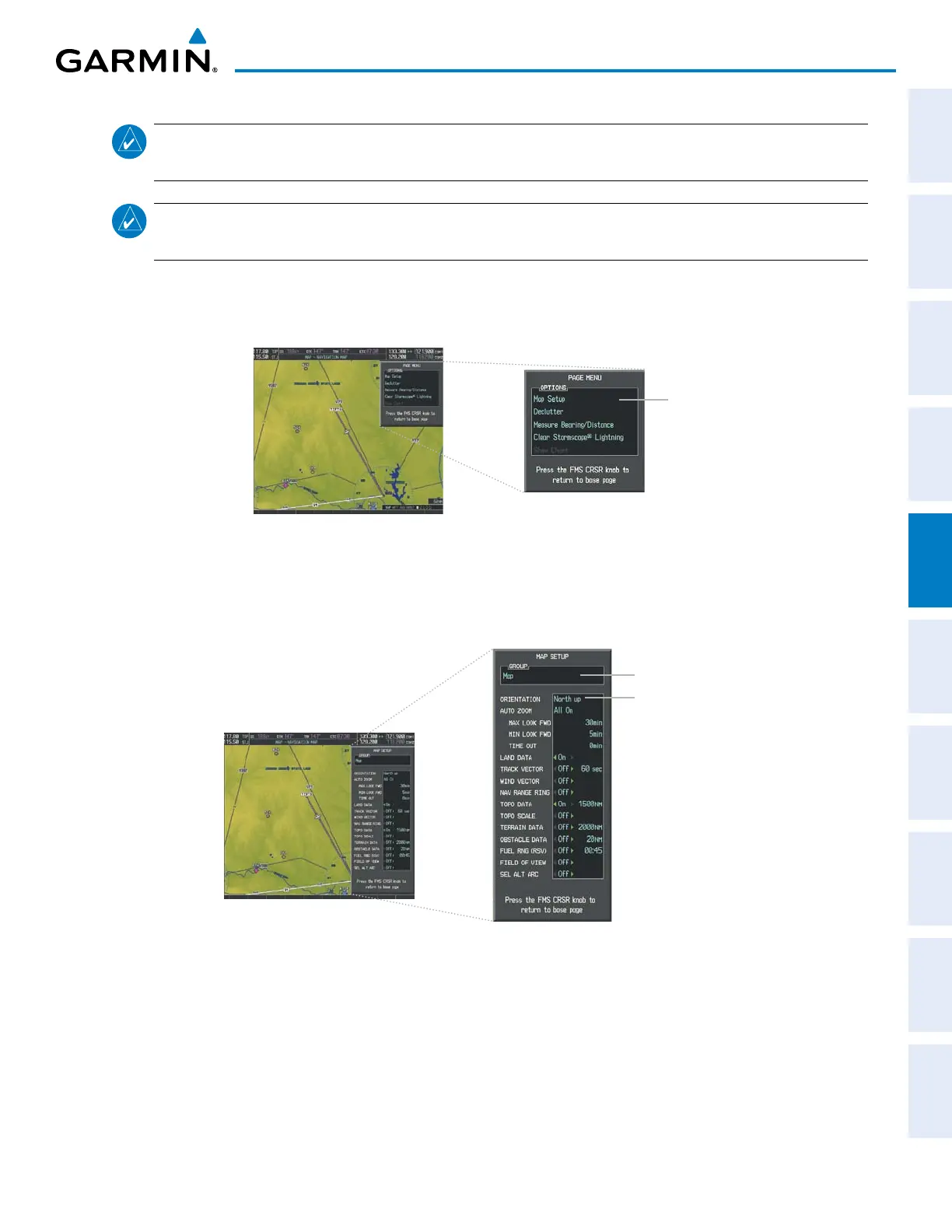

Figure 5-4 Navigation Map Page Menu Window
Map Setup
Selection
2) Select the ENT Key to display the Map Setup Window.
3) Turn the large FMS Knob, or select the ENT Key once, to select the ‘ORIENTATION’ field.
Figure 5-5 Map Setup Menu Window - Map Group
Orientation Field
Map Group Selection
4) Turn the small FMS Knob to select the desired orientation.
5) Select the ENT Key to select the new orientation.
6) Press the FMS Knob to return to the base page.
