Garmin G1000 Pilot’s Guide for the Diamond DA42NG

190-00962-02 Rev. A144

FLIGHT MANAGEMENT

SYSTEM

OVERVIEW

FLIGHT

INSTRUMENTS

EIS

AUDIO PANEL

& CNS

FLIGHT

MANAGEMENT

HAZARD

AVOIDANCE

AFCS

ADDITIONAL

FEATURES

APPENDICESINDEX

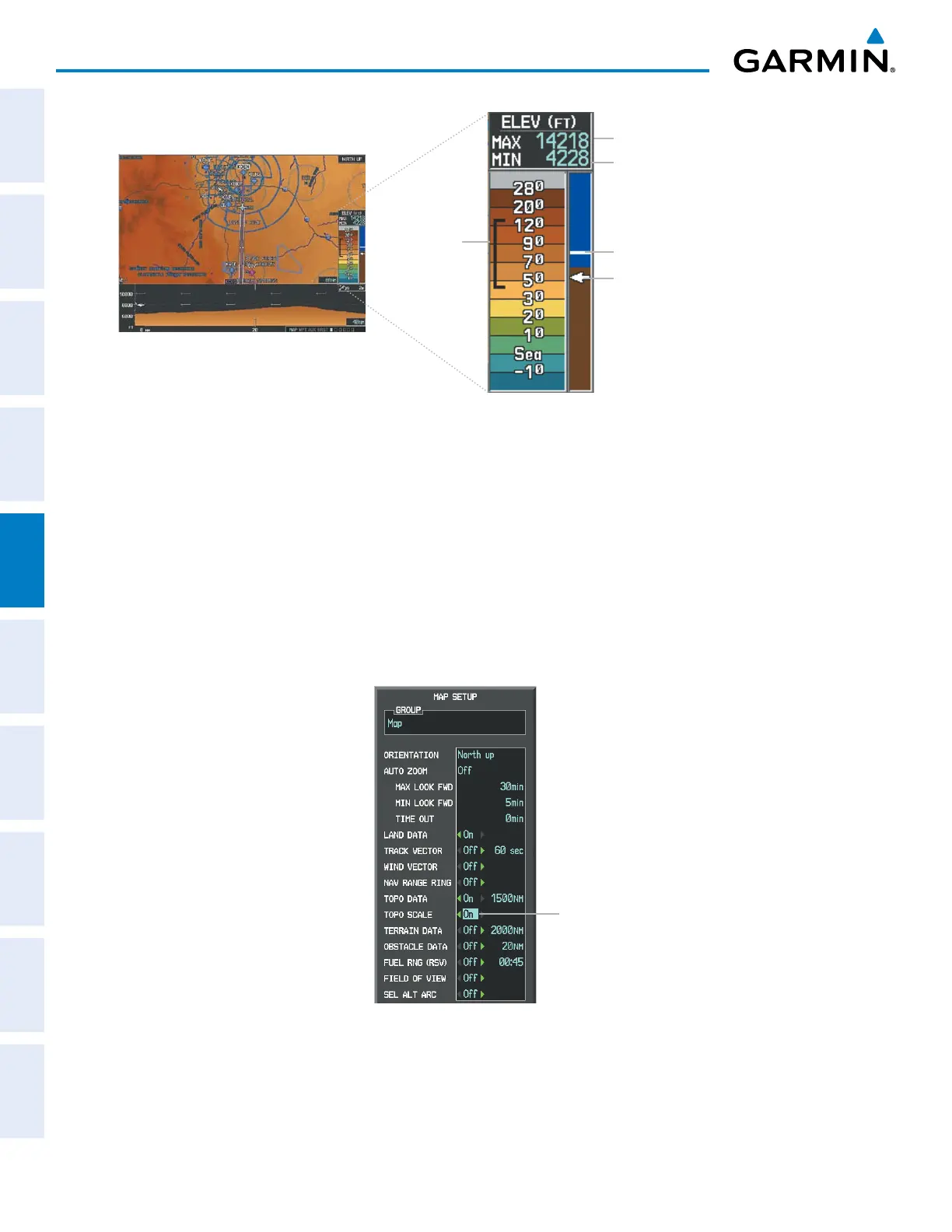

Figure 5-16 Navigation Map - TOPO SCALE

Maximum Displayed Elevation

Minimum Displayed Elevation

Aircraft Altitude (MSL)

Ground Elevation at Map Pointer

Location (only visible when Map

Pointer is displayed)

Range of

Displayed

Elevations

Displaying/removing the topographic scale (TOPO SCALE):

1) Press the MENU Key with the Navigation Map Page displayed. The cursor ﬂashes on the ‘Map Setup’ option.

2) Press the ENT Key. The Map Setup Menu is displayed.

3) Select the ‘Map’ group and select the ENT Key.

4) Highlight the ‘TOPO SCALE’ ﬁeld.

5) Select ‘On’ or ‘Off’.

6) Press the FMS Knob to return to the Navigation Map Page.

Figure 5-17 Navigation Map Setup Menu - TOPO SCALE Setup

TOPO SCALE

On/Off
