SYSTEM OVERVIEW
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
•Map Page Group (MAP)
Navigation Map
Traffic Map
Weather Radar (optional)
Stormscope (optional)
Weather Data Link (service optional)
- SiriusXM Weather
- GFDS Worldwide Weather
- FIS-B Weather
Terrain-SVS or Terrain Proximity

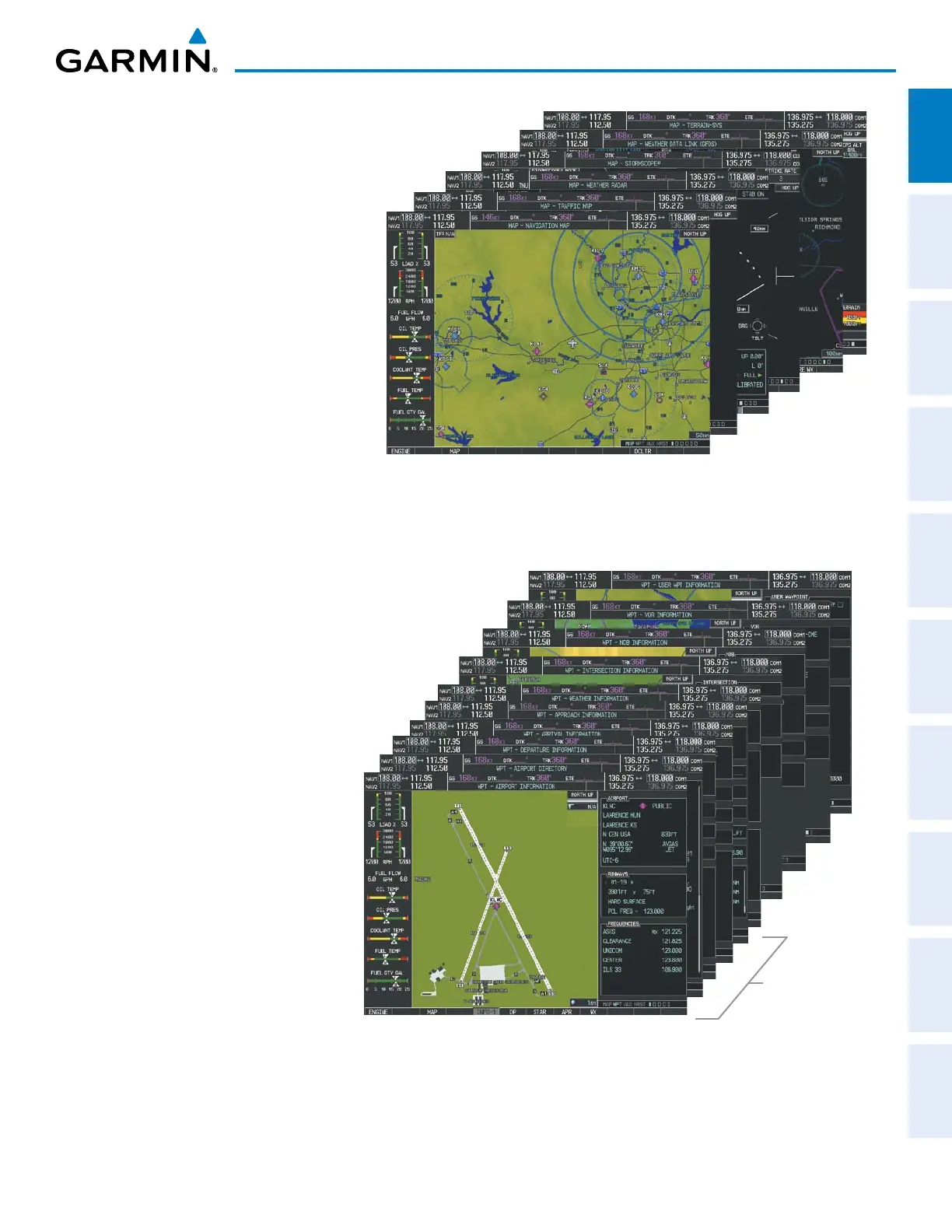

Figure 1-23 Map Pages
Figure 1-24 Waypoint Pages
Airport,
Procedures
and Weather
Information Pages
•Waypoint Page Group (WPT)
Airport/Procedures/Weather Information Pages:
- Airport Information
(INFO-1, INFO-2 Softkeys)
- Departure Information
(DP Softkey)
- Arrival Information
(STAR Softkey)
- Approach Information
(APR Softkey)
- Weather Information (optional)
(WX Softkey)
Intersection Information
NDB Information
VOR Information
User Waypoint Information

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
