G900X/G950 Installation and Maintenance Manual – Pinouts Page A-27
190-00719-00 Revision D
A.3.6 P606 (I/O 2)

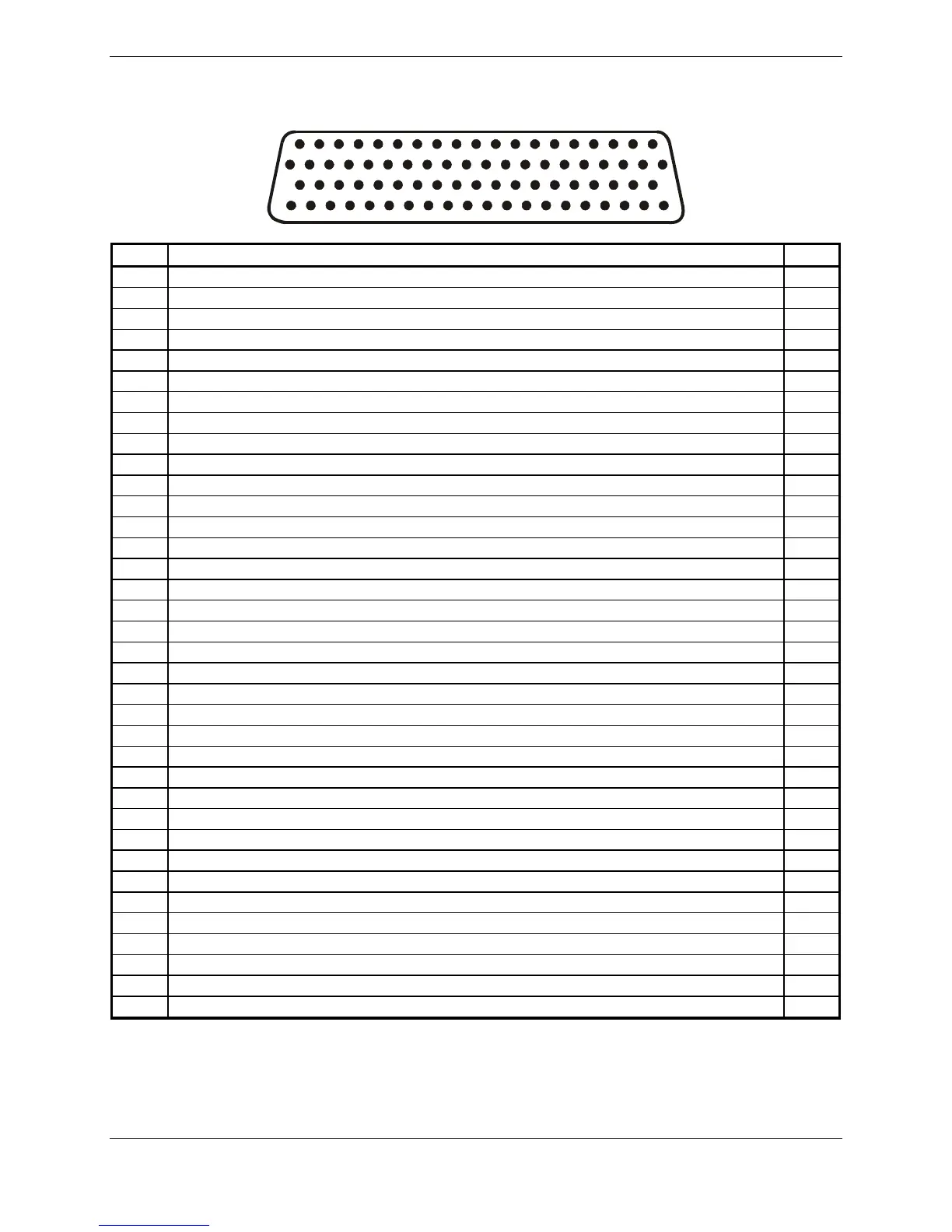

View of J606 connector from back of unit
1 2 3 4 5 6 7 8 9 10 11121314151617181920
21 22 23 24 25 26 27
28 29
30 31 32 33 34 35 36 37 38 39
40
41 42
43 44 45 46 47 48 49 50 51 52 53 54 55 56
57
58 59
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78
Pin Pin Name I/O
1 26 VAC VERTICAL GYRO REF HI In
2 26 VAC VERTICAL GYRO REF LO In
3 26 VAC ADF REF HI In
4 26 VAC ADF REF LO In
5 26 VAC AFCS REF HI In
6 26 VAC AFCS REF LO In
7 DIRECTIONAL GYRO MOTOR A In
8 DIRECTIONAL GYRO MOTOR B In
9 SIGNAL GROUND --
10 ADF X/COS In
11 ADF Y/SIN In
12 ADF Z (GROUND) In
13 SIGNAL GROUND --
14 HEADING X In
15 HEADING Y In
16 HEADING Z (GROUND) In
17 SIGNAL GROUND --
18 PITCH ATTITUDE X In
19 PITCH ATTITUDE Y In
20 PITCH ATTITUDE Z (GROUND) In
21 ROLL ATTITUDE X In
22 ROLL ATTITUDE Y In
23 ROLL ATTITUDE Z (GROUND) In
24 SIGNAL GROUND --
25 SPARE --
26 SPARE --
27 SPARE --
28 SPARE --
29 RESERVED --
30 SIGNAL GROUND --
31 RESERVED --
32 ADF DC REF IN In
33 RESERVED --
34 ANALOG ROLL STEERING HI Out
35 RESERVED --
36 ANALOG ROLL STEERING LO (GROUND) Out
