30 31
ENEN
H
A

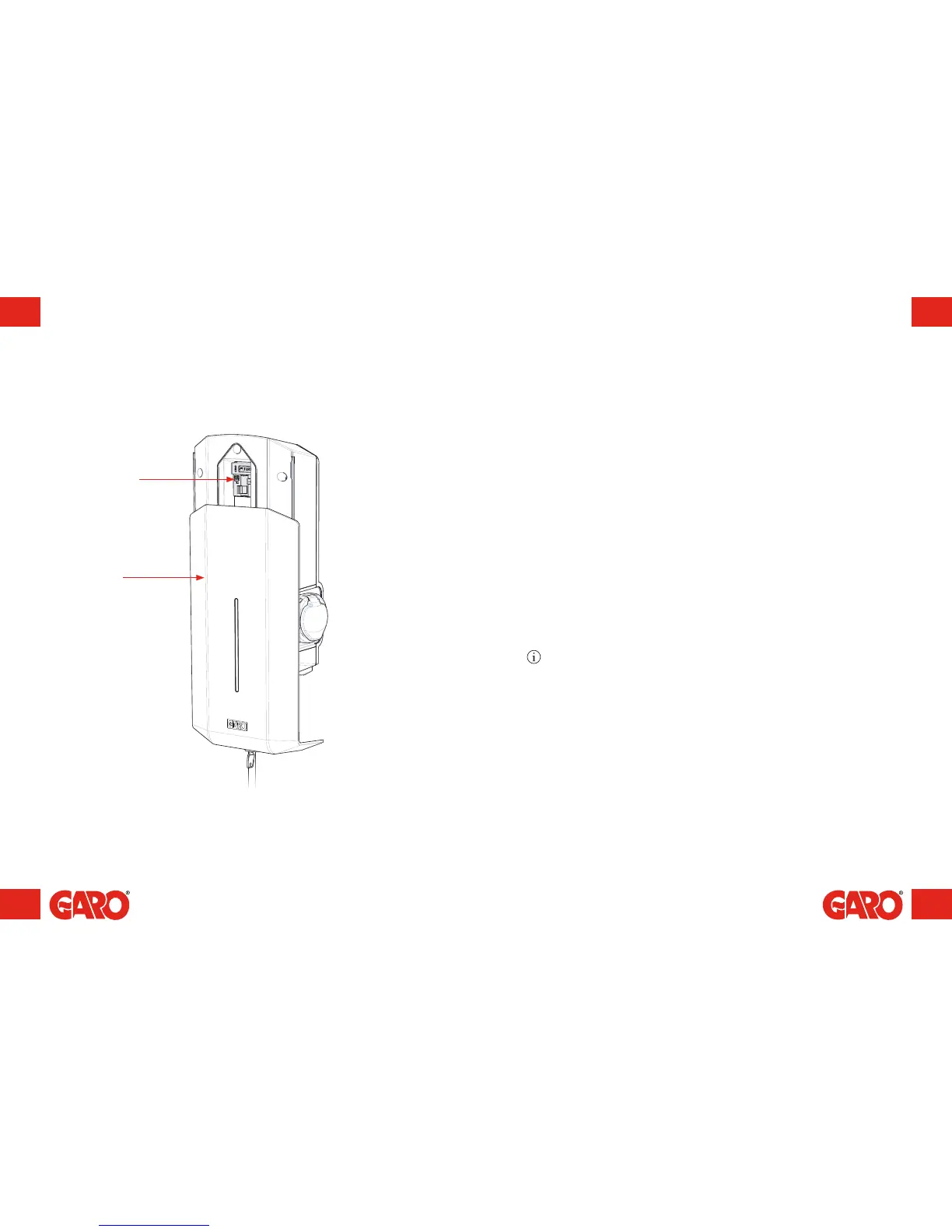

(figure 23)
Instructions / Resetting/Relocation
The wallbox is equipped with a personal protective circuit breaker (single-phase) or
residual-current circuit breaker (three-phase) (H). In the event of overload/earth fault,
these can be tripped. These components must also be conditioned once or twice a year,
depending on the environment.
Procedure for resetting/relocation:
1. Unlock the front cover with the key provided.
2. Open the front cover (A) by sliding it downwards.
3. Reset the breaker (H) latch. During relocation, press the breaker's test button (T) and
then reset the breaker latch.
4. Close the front cover by sliding it upwards.
5. Lock the front cover with the key.
The front cover must always be locked in its upper position in order to ensure compliance
with IP Code IP44.
Resetting/Relocation
Instructions / Resetting/Relocation
Important!:
the residual-current or personal protective current breaker
