Assembly instructions for fitters / Step by step Installation Assembly instructions for fitters / Step by step Installation
Step by step Installation

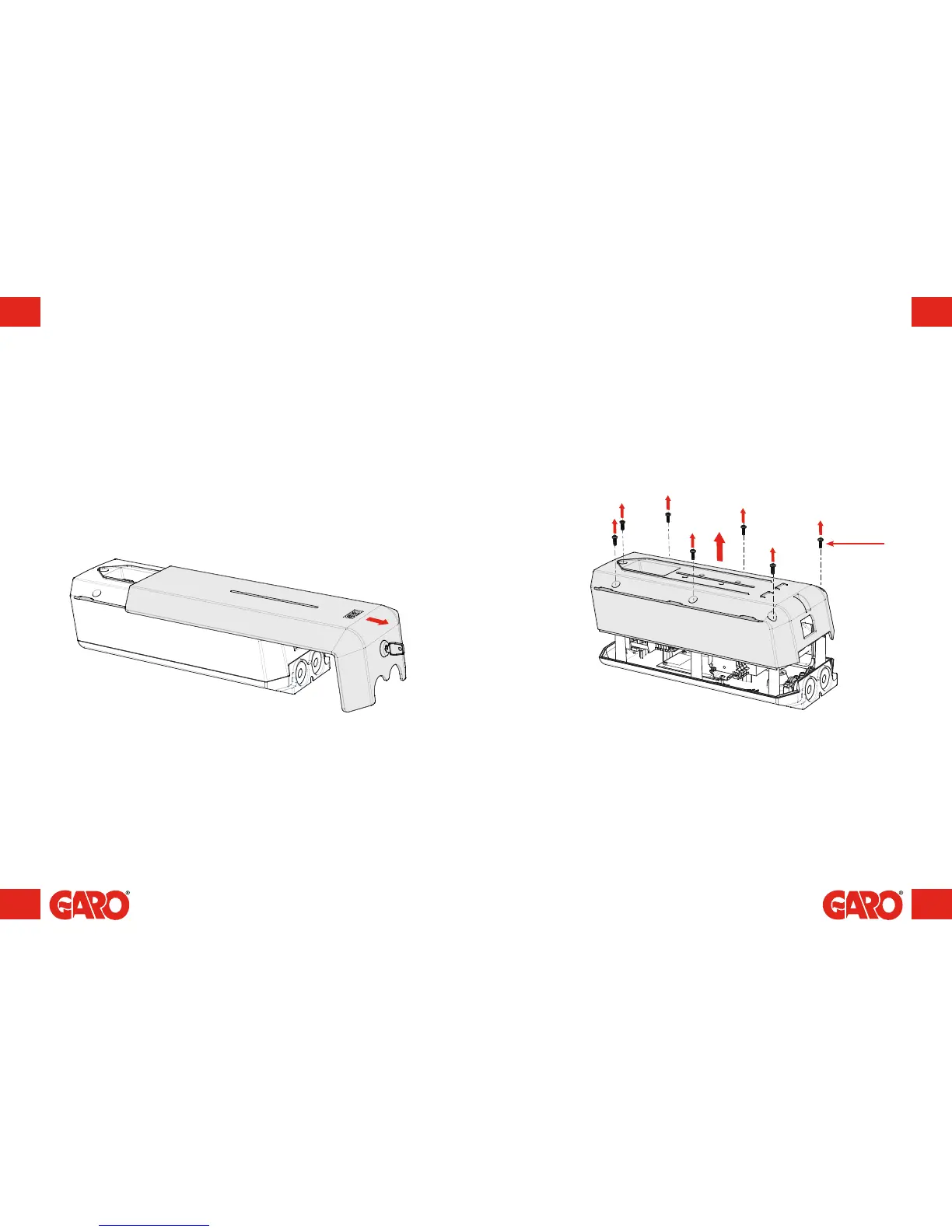

(figure 5)
(figure 6)
1. Ensure the supply cable is not live.
2. Remove the drill template from the packaging.
3. Attach the drill template to the wall where the charger will be installed.
Suitable height (see Technical data on page 45)
4. Drill/mark in accordance with the instructions on the drill template.
5. Unlock the front cover with the key provided and slide the cover downwards.
6. The front cover has a built-in stop-position. To move past this position, grip the
underside of the cover and lift outwards gradually while pulling downwards.
7. Loosen the seven screws and carefully remove the cover from the base box.
T20
