Mount In Bulkhead.
Gatekeeper Systems understands that mounting the 304-SD DVR in the bulkhead above the front windshield is often
employed. As the bulkhead area is not heated or cooled it is subject to temperature extremes. In order to implement best
practices Gatekeeper Systems recommends that the 304-SD mounted in the passenger compartment that is heated and
cooled. By avoiding temperature extremes (hot and cold) the components in the 304-SD DVR will be subject to less
temperature stress.

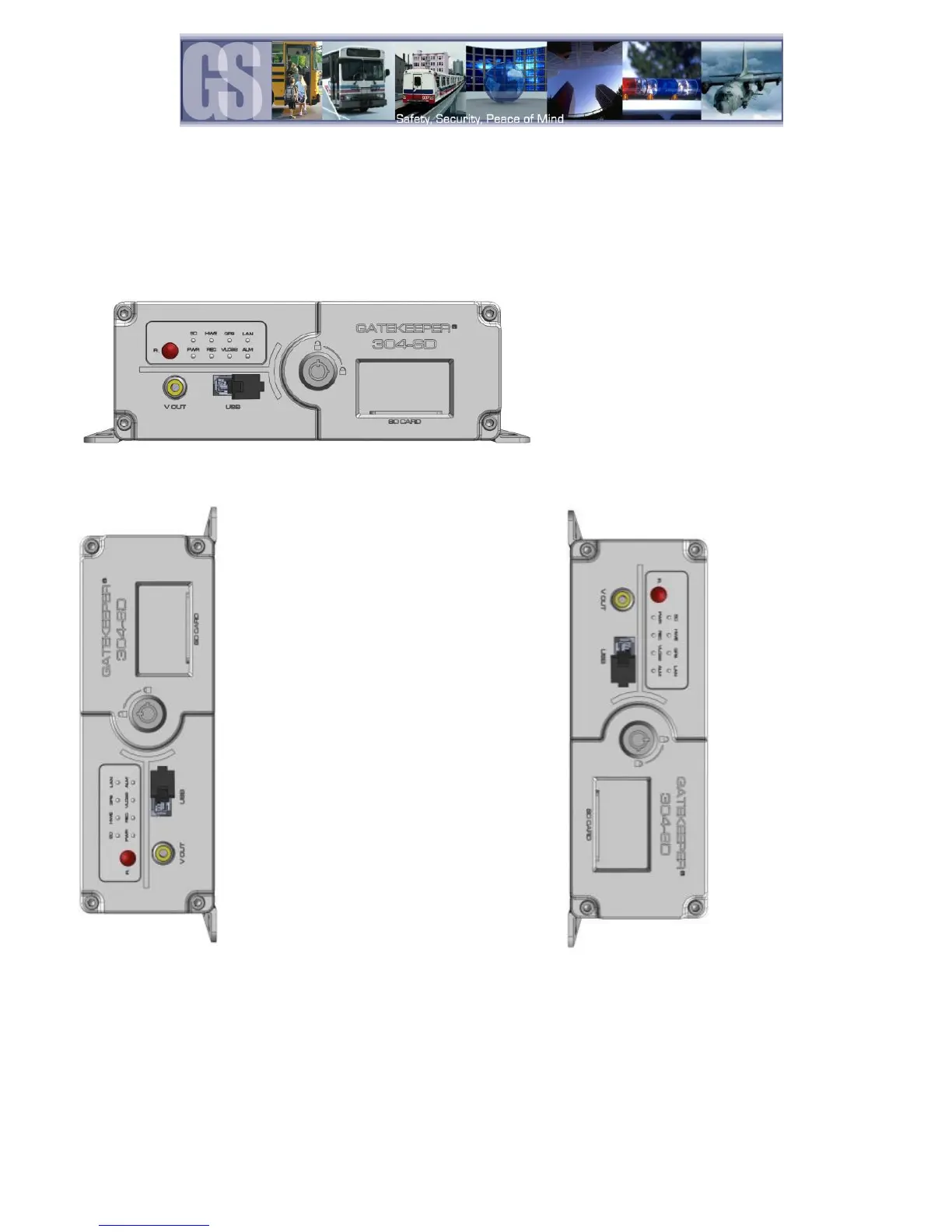

Standard Mount
Right Side Mount
Left Side Mount
Figure 3: Acceptable Mounting.
