CartManager XD Field Technician Guide Page 27
Adjusting the Cart Cradles
You will need to adjust the height of the cart cradles on the front of the CartManager XD if they consistently scrape
when going over speed bumps, up ramps, over door sills, etc. You may also need to adjust the distance between the
cradles if your store changes to carts with a different width between the back wheels.
• Adjust height to clear obstacles (example: Speed Bumps, etc.)
You will need:
• A 1/2 inch (13 mm) socket, a driver and a long extension.
1. Park the CartManager XD in a dry, flat area.
2. Make sure the unit is turned off and the manual brake lever is pushed
all the way in.

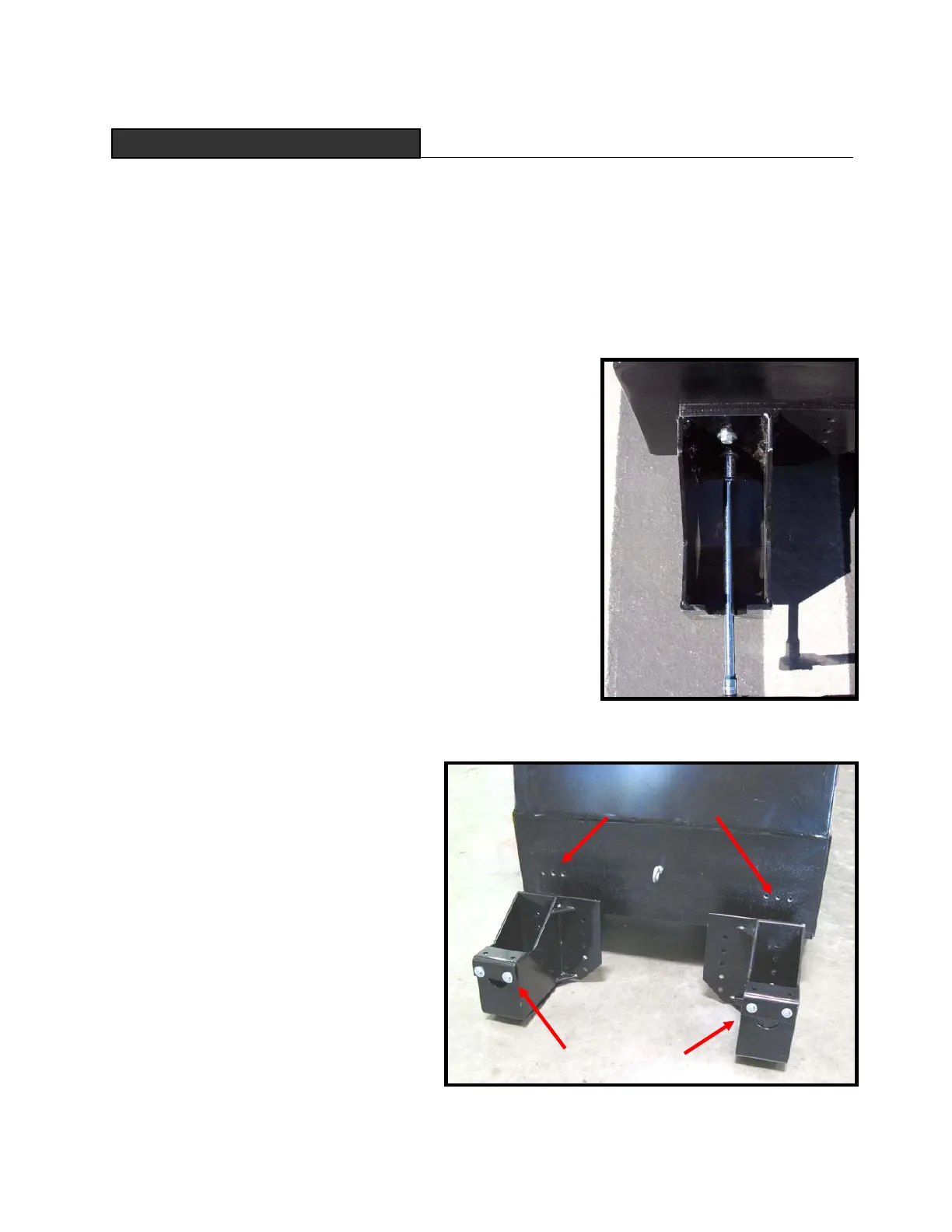

3. Loosen the four bolts holding the cart cradles in place, as shown at
right.
4. Move the cart cradles to the required position
and replace the bolts.
To Next Page
