Chapter 2: Connecting Components and Speakers
www.gateway.com
Connecting a VCR
This receiver supports S-Video and composite video jacks.

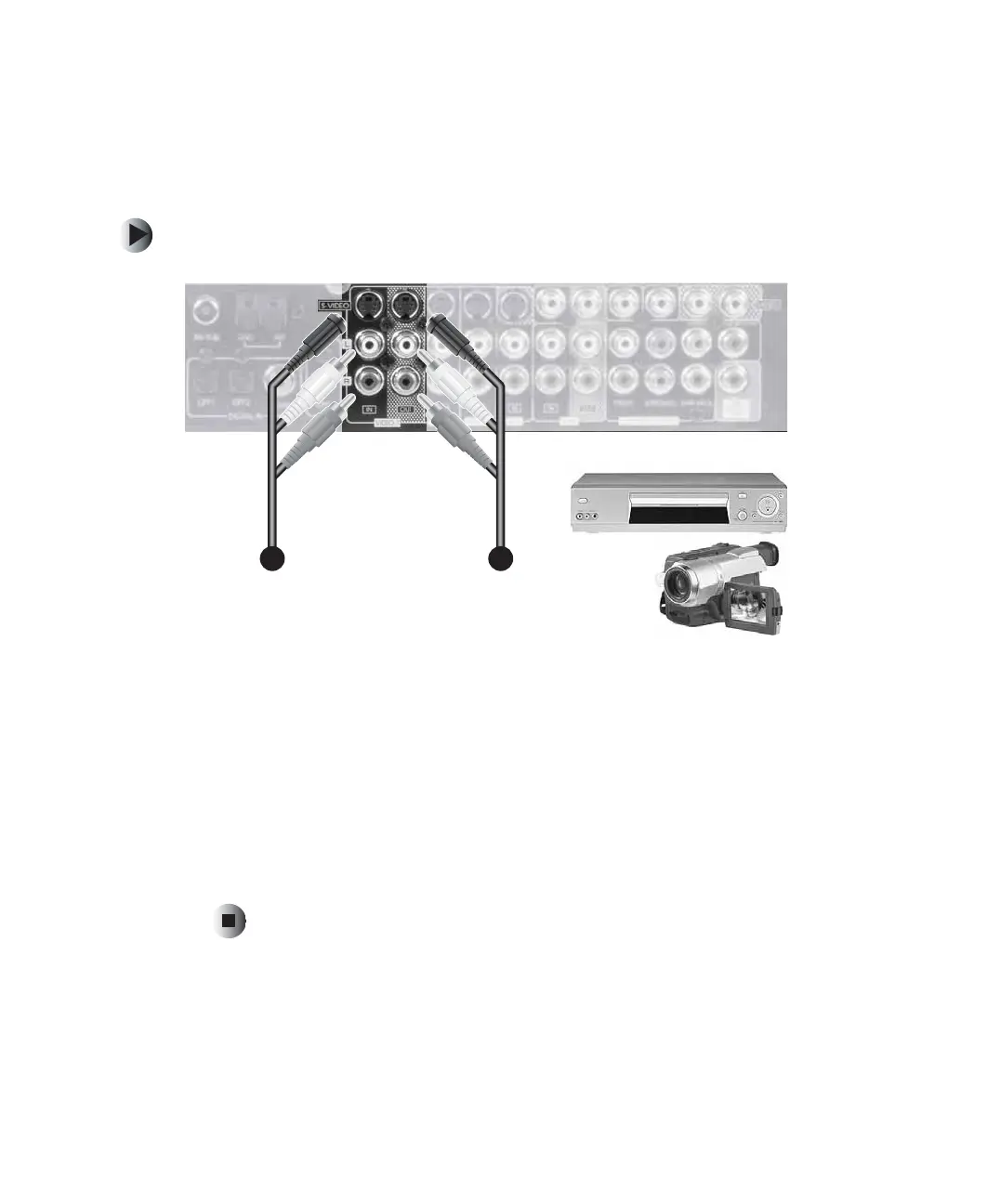

To connect a VCR using S-Video:
•
1 Connect the red (R) and white (L) audio out jacks on the back of your VCR
to the R and L audio in jacks on your receiver.
2 Connect the red (R) and white (L) audio in jacks on the back of your VCR
to the R and L audio out jacks on your receiver.
3 Connect the S-video out jack on the back of your VCR to the S-video in
jack on your receiver.
4 Connect the S-video in jack on the back of your VCR to the S-video out
jack on your receiver.
